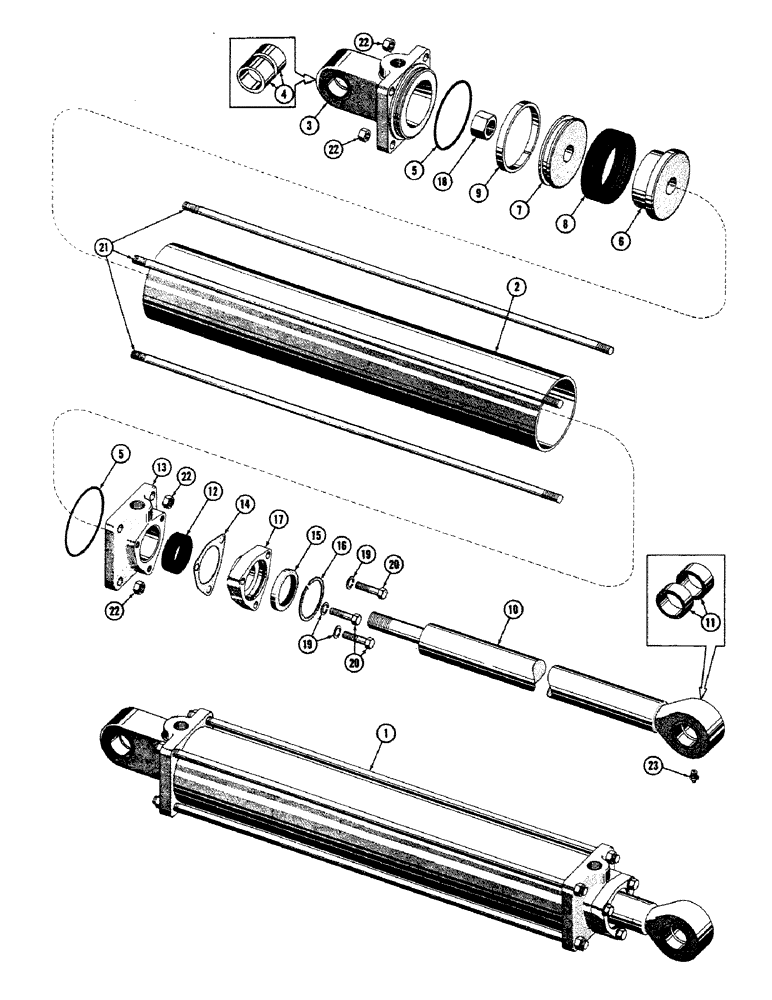

Запчасти Case 800 (272) - HYDRAULIC CYLINDER ASSY, PISTON ROD, END CAPS, TUBE (07) - HYDRAULIC SYSTEM

1

70450

GROOVED PULLEY

CYLINDER ASS'Y. - hydraulic R.H.

1шт.

70451

LID

CYLINDER ASS'Y. - hydraulic L.H.

1шт.

2

70453

TUBE - hydraulic cylinder

1шт.

3

R11957

END ASS'Y. - cylinder

1шт.

NSS

NOT SOLD SEPARAT

END - cylinder

1шт.

4

70466

BUSHING

2шт.

5

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

6

70460

BLOCK - piston

1шт.

7

70461

WASHER - retainer

1шт.

8

R17198

PACKING

- piston

1шт.

9

70462

RING

- wear

1шт.

10

R11960

END YOKE & PISTON ROD ASS'Y

1шт.

NSS

NOT SOLD SEPARAT

END YOKE & PISTON ROD

1шт.

11

70466

BUSHING

2шт.

12

17598

PACKING

- rod

1шт.

13

70454

CAP - cylinder

1шт.

14

70468

SHIM

8шт.

15

70459

WIPER SEAL

- wiper

1шт.

16

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

17

70458

GASKET KIT

GLAND - packing

1шт.

18

131-1295

LOCK NUT

NUT - lock (1-1/4-12 NF)

1шт.

19

92-8

LOCK WASHER,1/2"

3шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 mtg.) Hex, 1/2"-13 x 2", G5

3шт.

21

70455

ROD - tie

4шт.

22

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8-18 NF)

8шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.
