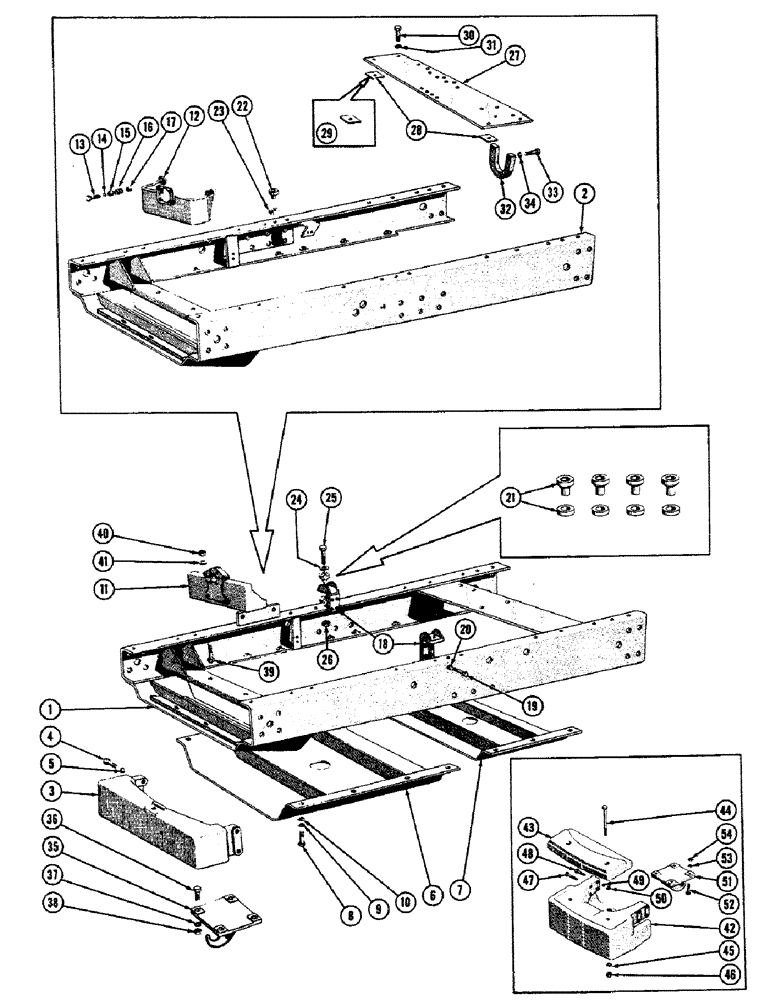

Запчасти Case 800 (006) - ENGINE FRAME INSTALLATION, ENGINE FRAME, MUD PANS, ENGINE MOUNTS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
70163
FRAME ASS'Y. - engine (Used up to serial #7081201)
1шт.
2
R13236
FRAME ASS'Y. - engine (Used from serial #7081201)
1шт.
3
70963
BUMPER - front
1шт.
4
14-1224
BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5
HHCS 3/4-16 NF x 1-1/2 (70963 mtg.)
4шт.
5
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
6
72194
GUARD ASS'Y. - front bottom
1шт.
7
72192
GUARD ASS'Y. - rear bottom (Used up to serial #7081201)
1шт.
R13797
GUARD ASS'Y.- rear bottom (Used from serial #7081201)
1шт.
8
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS 1/2-20 NF x 1-1/2 (Bottom guard mtg.)
14шт.
9
95-8
WASHER,1/2"
- plain 1/2"
14шт.
10
92-8
LOCK WASHER,1/2"
14шт.
11
70215
BRACKET - pump mtg. (Used up to serial #7080972)
1шт.
12
R12544
BRACKET - pump mtg. (Used from serial #7080972)
1шт.
13
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
HHCS 3/8-16 NC x 2-3/4 (R12544 mtg.) (Used from ser. #7080972)
2шт.
14
92-6
LOCK WASHER,3/8"
WASHER, LOCK, (Used from serial #7080972) 3/8"
2шт.
15
R13822
SPACER - pump bracket (Used from serial #7080972)
2шт.
16
R12645
SHIM - pump bracket (Used from serial #7080972)
6шт.
17
R12644
BUSHING
SPACER - pump bracket (Used from serial #7080972)
2шт.
18
70121
MOUNT - engine rear
2шт.
19
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
(70121 mtg.) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
8шт.
20
92-8
LOCK WASHER,1/2"
8шт.
21
R2528
KIT
- engine mount (Used up to serial #7080592)
1шт.
22
74038
MOUNTING PARTS
MOUNT - engine, upper (Used from serial #7080592)
4шт.
23
NLS
NO LONGER SERVICED
WASHER - vibration (Used from serial #7080592)
4шт.
24
95-12
WASHER,3/4"
- plain
4шт.
25
14-1252
BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5
HHCS 3/4-16 NF x 3-1/4 (Engine mtg.)
4шт.
26
230-46112
LOCK NUT,3/4"-16, GA
NUT - lock (3/4-16 NF)
4шт.
27
R13370
ANGLE ASS'Y - valve (Used from serial #7081201)
1шт.
28
35245
PAN
SPACER - square (Used from ser.#7081201 and, Serial Range: up-#1-2-59)
2шт.
29
R14526
SPACER - square (Used from 1-2-59)
2шт.
30
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS 1/2-20 NF x 2 (R13370 mtg. (Used from serial #7081201 and up to serial #1-2-59)
4шт.
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS 1/2-20 NF x 2 (R13370 mtg.) (Used from ser. #1-2-59)
2шт.
31
92-8
LOCK WASHER,1/2"
(Used from ser. #7081201 and up to serial #1-2-59) 1/2"
4шт.
92-8
LOCK WASHER,1/2"
(Used from serial #1-2-59) 1/2"
2шт.
32
R14116
BRACKET - safety (Used from serial #7081201)
1шт.
33
14-832
BOLT,Hex, 1/2" - 20 x 2", Gr 5
HHCS 1/2-20 NF x 2 (R14116 mtg.)
2шт.
34
92-8
LOCK WASHER,1/2"
2шт.
NS
NOT SERVICED
HOOK INSTALLATION - pull (Optional equipment) (6337)
1шт.
35
71671
PLATE ASSY.
HOOK - pull
1шт.
36
14-1240
BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5
HHCS 3/4-16 NF x 2-1/2 (71671 mtg.)
4шт.
37
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
38
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF)
4шт.
39
14-936
BOLT,Hex, 9/16" - 18 x 2-1/4", Gr 5
HHCS 9/16-18 NF x 2-1/4 (Engine mtg.)
2шт.
40
131-157
NUT,9/16"-18, GA
- lock (9/16-18 NF)
2шт.
41
40581
SPACER,1-1/2” x 1-1/2” x 1/4" Tk
SHIM - engine mtg.
1шт.
8498
FRONT MOUNTED WEIGHT (Optional)
1шт.
42
73431
WEIGHT - front mounted
1шт.
43
73432
COVER - front mounted weight
1шт.
44
14-16216
HHCS 1-14 NF x 13-1/2 (73432 mtg.)
2шт.
45
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
2шт.
46
25-1116
NUT,1"-14, G5
- reg. SF hex (1-14 NF)
2шт.
48
14-1280
BOLT,Hex, 3/4" - 16 x 5", Gr 5
HHCS 3/4-16 NF x 5 (73431 mtg.)
4шт.
49
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
50
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16 NF)
8шт.
51
71671
PLATE ASSY.
HOOK - pull
1шт.
52
14-1280
BOLT,Hex, 3/4" - 16 x 5", Gr 5
HHCS 3/4-16 NF x 5 (71671 and 73431 mtg.)
4шт.
53
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
54
25-1112
NUT,3/4"-16, G5
- reg. SF hex (3/4-16)
4шт.
Выбрано товаров: 59
