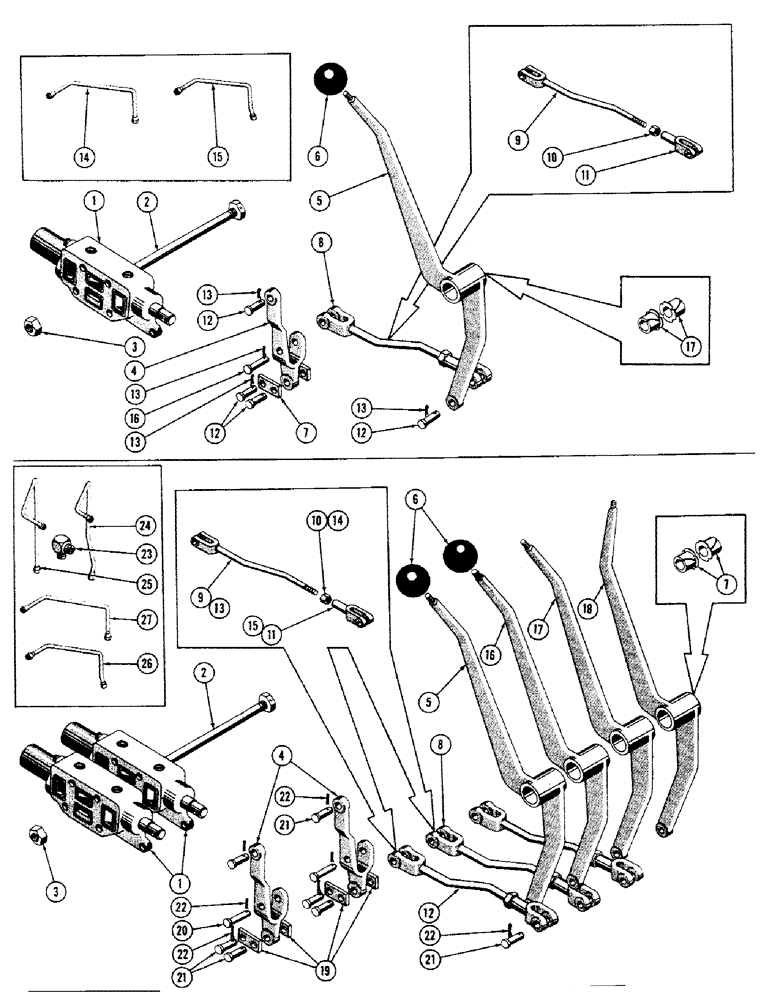

Запчасти Case 800 (266) - LEVER & VALVE KITS (FOR FIELD INSTALLATIONS) (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
R2913
LEVER AND VALVE KIT (Dual pull behinds)
1шт.
1
R14274
SECTION - valve (See figure 314 for breakdown)
1шт.
2
38576
KEY
STUD ASS'Y
4шт.
3
38566
X
NUT - stop
1шт.
5
R13772
LEVER ASS'Y
1шт.
6
CAS31375
KNOB
BALL - grip
1шт.
7
71316
X
LINK - valve lever
2шт.
8
R13758
ROD ASS'Y
1шт.
9
R13761
ROD
1шт.
10
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF)
1шт.
11
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE
1шт.
12
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
4шт.
13
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
5шт.
14
R14401
TUBE ASS'Y
1шт.
15
R14395
TUBE ASS'Y
1шт.
16
71303
PIN - yoke
1шт.
17
74898
BUSHING - nylon
2шт.
R2693
LEVER AND VALVE KIT (Dual pull behinds/angle dozer)
1шт.
1
R14274
SECTION - valve (See figure 314 for breakdown)
2шт.
2
38576
KEY
STUD ASS'Y
4шт.
3
38566
X
NUT - stop
1шт.
5
R13772
LEVER ASS'Y
1шт.
6
31375
WASHER
BALL - grip
2шт.
7
74898
BUSHING
8шт.
8
R13758
ROD ASS'Y
2шт.
9
R13761
ROD
1шт.
10
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF)
1шт.
11
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE
1шт.
12
R13759
ROD ASS'Y
1шт.
13
R13760
ROD
1шт.
14
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8-24 NF)
1шт.
15
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE
1шт.
16
R13764
LEVER ASS'Y
1шт.
17
R13767
LEVER ASS'Y
1шт.
18
R13766
LEVER ASS'Y
1шт.
19
71316
X
LINK - valve lever
4шт.
20
71303
PIN - yoke
2шт.
21
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, 3/8" x 1.060"
8шт.
22
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
10шт.
23
218-488
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF
- male
1шт.
24
R14397
TUBE ASS'Y
1шт.
25
R14399
TUBE ASS'Y
1шт.
26
R14395
TUBE ASS'Y
1шт.
27
R14401
TUBE ASS'Y
1шт.
Выбрано товаров: 46
