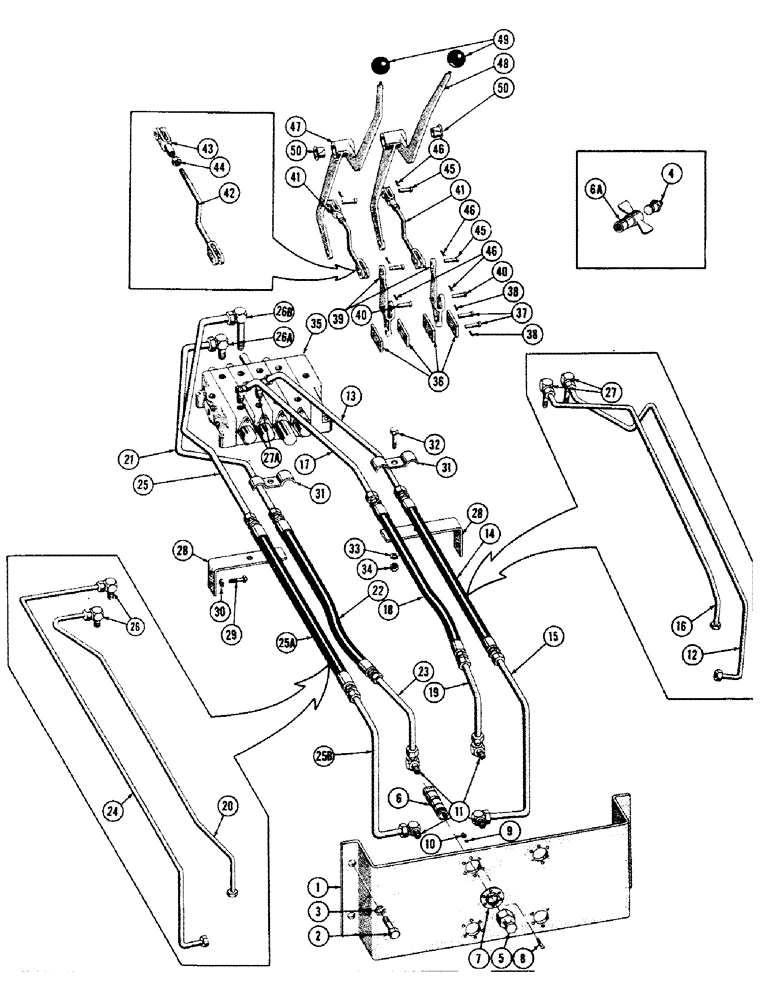

Запчасти Case 800 (260) - DUAL PULL-BEHIND HYDRAULICS (FOR HYDRAULIC DOZERS), DUAL PULL-BEHIND HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

72423

PIPE

BRACKET - mounting

1шт.

2

14-1228

BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 5

HHCS - 3/4-16 NC x 1-3/4 (72423 mtg.)

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

4

72363

PLUG - dust

4шт.

5

72364

CAP - dust

4шт.

6

36262

SOCKET - break-away coupling (Male)

4шт.

6a

36263

SOCKET - break-away coupling (Female)

4шт.

7

72362

SWITCH

FLANGE - mounting

4шт.

8

173-80

SCREW,Sl Rnd Hd, #8 - 32 x 3/4"

RHMS - #8 x 3/4 - NC (72362 mtg.)

24шт.

9

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

24шт.

10

129-6

NUT,#8-32

24шт.

11

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male 90 degree 3/4 NP to 3/4 JIC

4шт.

12

72421

GASKET

TUBE ASS'Y - RH outer (Used up to serial #7081201)

1шт.

R13693

TUBE ASS'Y - RH outer (Used from #7081201 and up to 3-22-59) (For service use ref. #13, 14 and 15)

1шт.

13

R14861

TUBE ASS'Y - RH outer (Used from serial #3-22-59)

1шт.

14

35055

PISTON

HOSE ASS'Y - RH outer (Used from serial #3-22-59)

1шт.

15

R14862

TUBE ASS'Y - RH outer (Used from serial #3-22-59)

1шт.

16

72419

GASKET

TUBE ASS'Y - RH inner (Used up to serial #7081201)

1шт.

R13694

TUBE ASS'Y - RH inner (Used from #7081201 and up to 3-22-59) (For service use ref. #17, 18 and 19)

1шт.

17

R14861

TUBE ASS'Y - RH inner (Used from serial #3-22-59)

1шт.

18

35055

PISTON

HOSE ASS'Y - RH inner (Used from serial #3-22-59)

1шт.

19

R14864

TUBE ASS'Y - RH inner (Used from serial #3-22-59)

1шт.

20

72415

TUBE ASS'Y - LH inner (Used up to serial #7081201)

1шт.

R13696

TUBE ASS'Y - LH inner (Used from #7081201 and up to 3-22-59) (For service use ref. #21, 22 and 23)

1шт.

21

R14865

TUBE ASS'Y - LH inner (Used from serial #3-22-59)

1шт.

22

35055

PISTON

HOSE ASS'Y - LH inner (Used from serial #3-22-59)

1шт.

23

R14864

TUBE ASS'Y - LH inner (Used from serial #3-22-59)

1шт.

24

72417

GASKET

TUBE ASS'Y - LH outer (Used up to serial #7081201)

1шт.

R13695

TUBE ASS'Y - LH outer (Used from #7081201 and up to 3-22-59) (For service use ref. #25, 25A and 25B)

1шт.

25

R14867

TUBE ASS'Y - LH outer (Used from serial #3-22-59)

1шт.

25a

35055

PISTON

HOSE ASS'Y - LH outer (Used from serial #3-22-59)

1шт.

25b

R14866

TUBE ASS'Y - LH outer (Used from serial #3-22-59)

1шт.

26

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male 90 degree 3/4 NP to 3/4 JIC (Used up to ser. #3-22-59)

2шт.

26a

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male 90 degree 3/4 NP to 3/4 JIC (Used from serial #3-22-59)

1шт.

26b

218-503

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male extra long 3/4 NP to 3/4 JIC (Used from 3-22-59)

1шт.

27

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ELBOW - male extra long 3/4 NP to 3/4 JIC (Used up to 3-22-59)

2шт.

27a

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- male 45 degrees - 3/4 NP to 3/4 JIC (Used from 3-22-59)

2шт.

28

R14844

BRACKET - mounting

2шт.

29

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

HHCS - 3/8-24 NF x 7/8 lg. (R14844 mtg.)

4шт.

30

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

31

73089

ARMATURE

CLAMP - (Tube mtg.)

2шт.

32

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS 5/16-24 NF x 2 lg. (73089 mtg.)

2шт.

33

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

34

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.

35

72361

DISC

VALVE - hydraulic (See figure 304 for breakdown) (Used up to serial #7081201), lever system

1шт.

R14055

VALVE - hydraulic (See figure 304 for breakdown) (Used from serial #7081201), lever system

1шт.

36

71316

X

LINK - hydraulic valve, lever system

4шт.

37

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve & lever system 3/8" x 1.060"

4шт.

38

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Valve & lever system 3/32" x 5/8"

4шт.

39

71301

LEVER - hydraulic valve, system

2шт.

40

71303

PIN - yoke, valve & lever system

2шт.

41

71513

ROD ASS'Y - hydraulic control (Used up to ser. #7081201), valve & lever system

2шт.

R13758

ROD ASS'Y - hydraulic control (Used from ser. #7081201), valve & lever system

2шт.

42

71512

CRANK

ROD - (Used up to serial #7081201), valve & lever system

1шт.

R13761

ROD - (Used from serial #7081201), valve & lever system

1шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - end, valve & lever system

1шт.

44

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF), valve & lever system

1шт.

45

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve & lever system 3/8" x 1.060"

4шт.

46

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Valve & lever system 3/32" x 5/8"

6шт.

47

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Used up to ser. #7080902) (Order (1) #74893 lever & (2) #74898 bushings), valve & system

1шт.

74892

LEVER ASS'Y - hydraulic control (Used from ser. #7080902 and up to serial #7081201), valve & system

1шт.

R13766

LEVER ASS'Y - hydralic control (Used from #7081201), valve & system

1шт.

48

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Used up to ser. #7080902) (Order (1) #74892 lever & (2) #74898 bushings), valve & system

1шт.

74893

LEVER ASS'Y - hydraulic control (Used from serial #7080902 and up to serial #7081201), valve & system

1шт.

R13772

LEVER ASS'Y - hydraulic control (Used from ser. #7081201), valve & system

1шт.

49

CAS31375

KNOB

BALL - lever grip, valve & system

2шт.

50

74898

BUSHING - (Used from serial #7080902), valve & lever system

4шт.
