Запчасти Case 800 (256) - SCARIFIER & RIPPER HYDRAULICS (WHEN USED WITH MECH. DOZERS), LEVER & VALVE SYSTEM (07) - HYDRAULIC SYSTEM

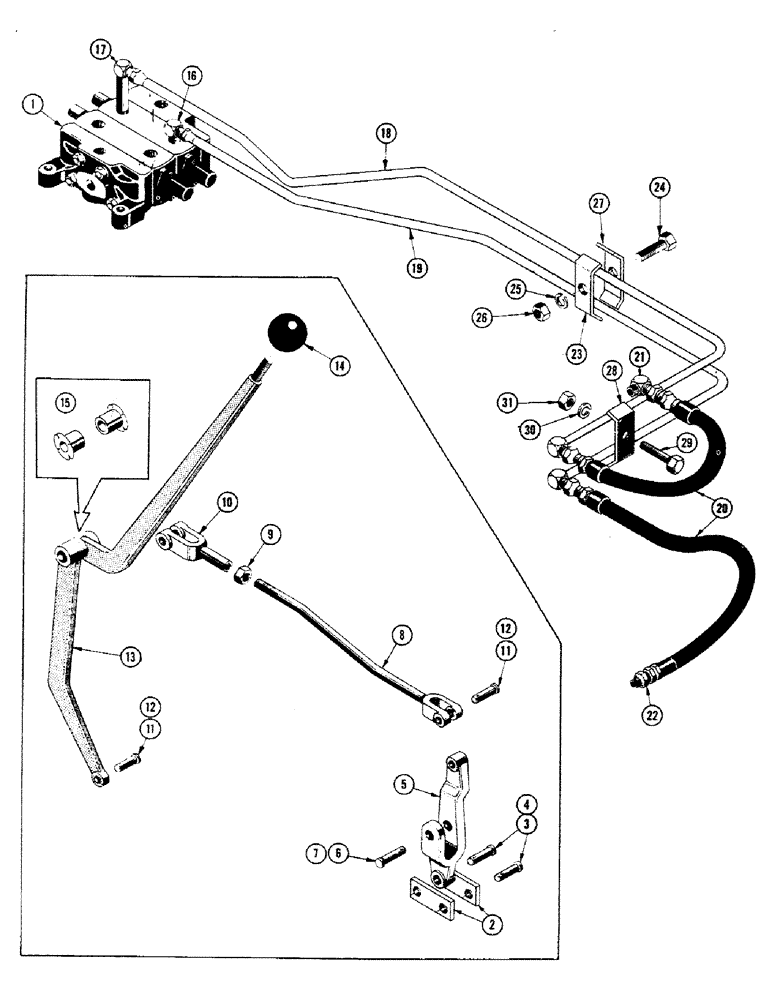

Схема запчастей Case 800 - (256) - SCARIFIER & RIPPER HYDRAULICS (WHEN USED WITH MECH. DOZERS), LEVER & VALVE SYSTEM (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

71298

VALVE ASS'Y - hydraulic (See figure 300 for breakdown)

1шт.

2

71316

X

LINK - valve control lever

2шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663) 3/8" x 1.060"

2шт.

4

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

5

71301

LEVER - valve control

1шт.

6

71303

PIN - yoke

1шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

1шт.

71318

ROD ASS'Y - valve control

1шт.

8

71317

ROD - valve control

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102)

1шт.

10

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603)

1шт.

11

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48682) 3/8" x 1.060"

2шт.

12

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682) 3/32" x 5/8"

2шт.

13

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - valve control (Used up to ser. #7080902) (Order (1) #74891 lever & (2) #74898 bushings)

1шт.

74891

LEVER ASS'Y - valve control (Used from ser. #7080902)

1шт.

14

31375

WASHER

BALL - grip

1шт.

15

74898

BUSHING - nylon (Used from ser. #7080902)

2шт.

16

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (50127), scarifier hydraulic system

1шт.

17

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ELBOW - special, scarifier hydraulic system

1шт.

18

71596

TUBE ASS'Y - upper valve to cylinder, scarifier hydraulic system

1шт.

19

71594

TUBE ASS'Y - lower valve to cylinder, scarifier hydraulic system

1шт.

20

19207

HOSE ASSY.

HOSE ASS'Y - to cylinder, scarifier hydraulic system

2шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114), scarifier hydraulic system

1шт.

22

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, 5/8 JIC to 1/2 NP (50024), scarifier hydraulic system

1шт.

23

31665

COLLAR CLAMP

CLAMP - tube (71594 & 71596 mtg.), scarifier hydraulic system

1шт.

24

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665) (45635), scarifier hydraulic system

1шт.

25

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), scarifier hydraulic system 5/16"

1шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), scarifier hydraulic system

1шт.

27

31665

COLLAR CLAMP

CLAMP - tube, scarifier hydraulic system

1шт.

28

31665

COLLAR CLAMP

CLAMP - tube (71594 & 71596 mtg.), scarifier hydraulic system

1шт.

29

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (31665 mtg.) (45633), scarifier hydraulic system

1шт.

30

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), scarifier hydraulic system 5/16"

1шт.

31

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), scarifier hydraulic system

1шт.

Выбрано товаров: 33
