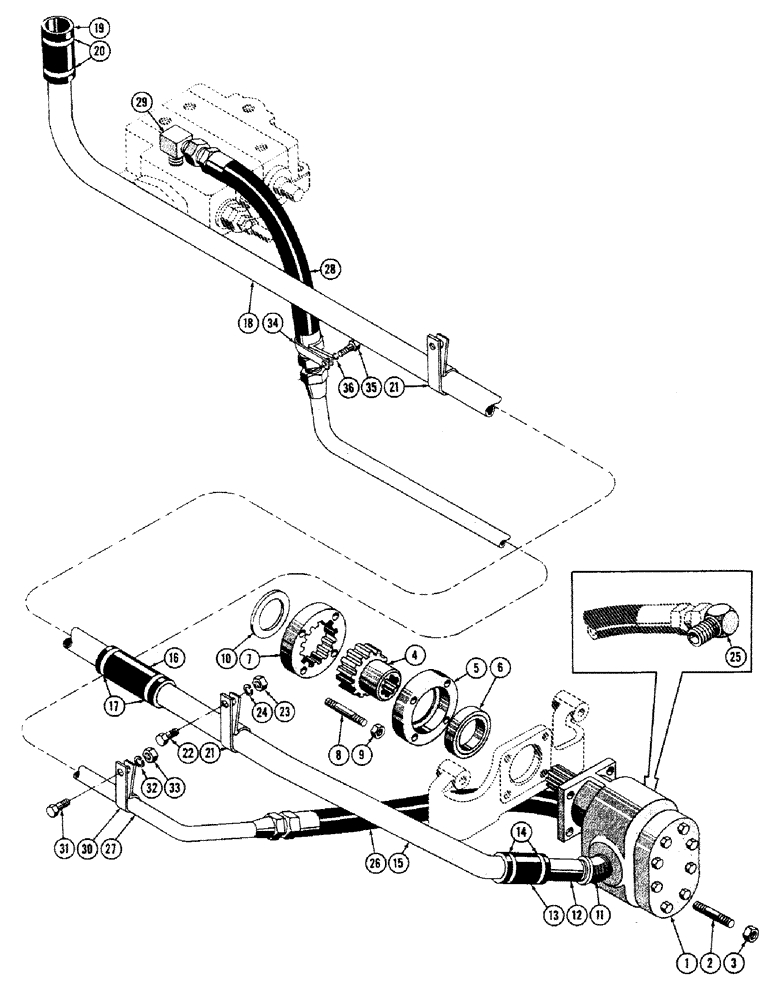

Запчасти Case 800 (244) - PRIMARY HYDRAULICS FOR DOZERS (USED FROM SERIAL #7081201) (07) - HYDRAULIC SYSTEM

1

R12658

PUMP ASS'Y - hydraulic (See figure 290 for breakdown)

1шт.

2

46522

SLEEVE

STUD - 13/20 NF x 2-1/8 (R12658 mtg.)

4шт.

3

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF)

4шт.

4

R13927

QUICK MALE COUPLING

COUPLING - male

1шт.

5

72991

RETAINER - seal

1шт.

6

40659

- oil

1шт.

7

R13928

COUPLING

- female

1шт.

8

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 14/20 NF x 2-5/8

4шт.

9

131-367

LOCK NUT

NUT - lock (7/16-20 NF)

4шт.

10

R10830

WASHER

- special

1шт.

11

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - 45 degree street, 1" NP

1шт.

12

74763

ARTICULATION

NIPPLE - special

1шт.

13

R14178

HOSE

1шт.

14

49763

X

CLAMP - hose

2шт.

15

71327

TUBE ASS'Y - suction

1шт.

16

R14178

HOSE

1шт.

17

49763

X

CLAMP - hose

2шт.

18

R13716

TUBE ASS'Y - suction

1шт.

19

R14169

HOSE

1шт.

20

49763

X

CLAMP - hose

2шт.

21

49773

CLAMP

- tube

2шт.

22

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (49773 mtg.)

1шт.

23

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

1шт.

24

92-8

LOCK WASHER,1/2"

1шт.

25

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC to 3/4 NP

1шт.

26

70568

HOSE ASS'Y

1шт.

27

R13714

TUBE ASS'Y

1шт.

28

R14485

HOSE ASS'Y

1шт.

29

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC to 3/4 NP

1шт.

30

R11405

CLAMP

- tube

1шт.

31

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4-28 NF x 7/8 (R11405 mtg.)

1шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF)

1шт.

34

R14057

CLAMP

- tube

1шт.

35

14-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

HHCS - 1/2-20 NF x 3/4 (R14057 mtg.)

1шт.

36

92-8

LOCK WASHER,1/2"

1шт.
