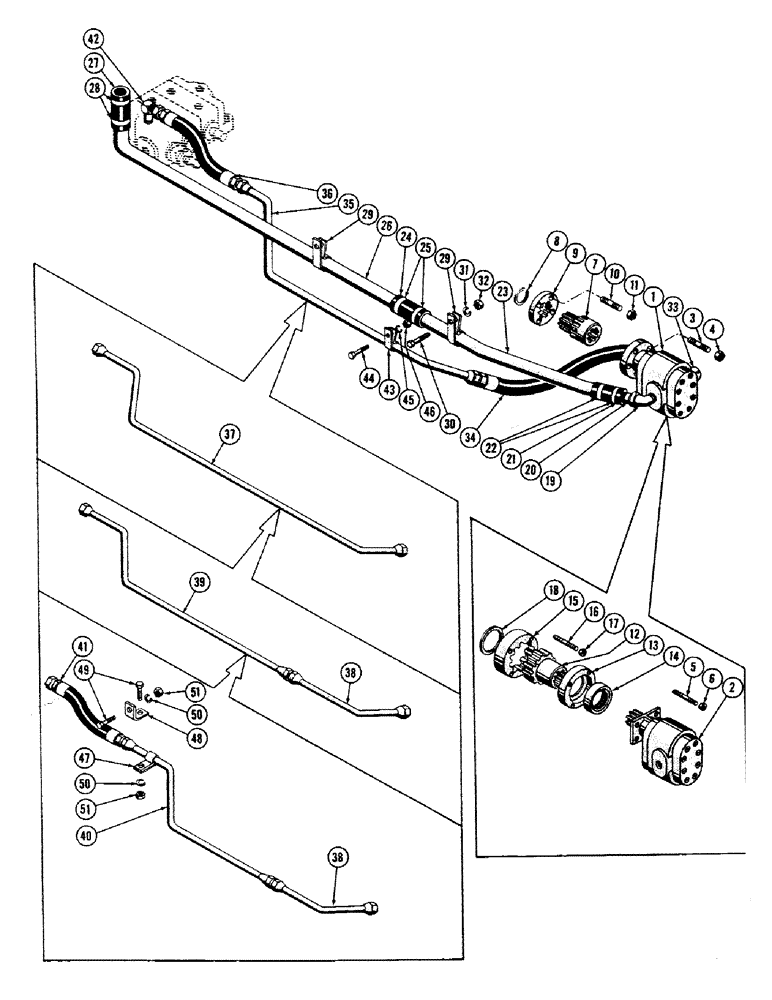

Запчасти Case 800 (242) - PRIMARY HYDRAULICS FOR DOZERS (USED UP TO SERIAL #7081201) (07) - HYDRAULIC SYSTEM

1

70541

PUMP ASS'Y. - (Used up to serial #7-1-57) (See figure 286 for breakdown)

1шт.

72413

GASKET

PUMP ASS'Y. - (Used from serial #7-1-57 and up to ser. #7080554) (See figure 288 for breakdown)

1шт.

73346

PUMP ASS'Y. - hyd. (Used from ser. #7080554 & up to serial #7080972) (See figure 288 for breakdown)

1шт.

2

R12536

PUMP ASS'Y. - hyd. (Used from ser. #7080972) (See figure 292 for breakdown)

1шт.

3

46513

ROD

STUD - 3/8-24 NF x 2 (70541, 72413 & 73346 mtg.) (Used up to ser. #7080972)

6шт.

4

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8-24 NF) (70541, 72413 & 73346 mtg.) (Used up to #7080972)

6шт.

5

46522

SLEEVE

STUD - 1/2-20 NF x 1/2-13 NC x 2-1/8 (R12536 mtg.) (Used from serial #7080972)

4шт.

6

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2-20 NF) (R12536 mtg.) (Used from ser. #7080972)

4шт.

7

70120

COUPLING - male (Used up to serial #7080972)

1шт.

8

49480

RING

- snap (Used up to serial #7080972)

1шт.

9

70543

COUPLING - female (Used up to serial #7080972)

1шт.

10

46512

ROLLER BEARING

STUD - 7/16-20 NF x 1-3/4 (70543 mtg.) (Used up to ser. #7080972)

4шт.

11

131-367

LOCK NUT

NUT - lock (7/16-20 NF) (Used up to serial #7080972)

4шт.

12

R13927

QUICK MALE COUPLING

COUPLING - male (Used from serial #7080972)

1шт.

13

72991

RETAINER - seal (Used from serial #7080972)

1шт.

14

40659

- oil (Used from serial #7080972)

1шт.

15

R13928

COUPLING

- female (Used from serial #7080972)

1шт.

16

46521

SHEAR BOLT,1/4" - 20 x 1-1/2"

STUD - 7/16-20 NF x 7/16-14 NC x 2-5/8 (72991 & 73694 mtg.) (Used from serial #7080972)

4шт.

17

131-367

LOCK NUT

NUT - lock (7/16-20 NF) (Used from serial #7080972)

4шт.

18

R10830

WASHER

- special (Used from serial #7080972)

1шт.

19

221-407

ELBOW,90 Degree, 1 1/4"-11 1/2, NPT

- 45 degree street, 1-1/4 NP

1шт.

20

71374

YOKE

NIPPLE - special

1шт.

21

71335

X

HOSE

1шт.

22

49763

X

CLAMP - hose

2шт.

23

71327

TUBE - suction, front

1шт.

24

73749

STRAP

HOSE

1шт.

25

49763

X

CLAMP - hose

2шт.

26

70576

TUBE - suction, rear

1шт.

27

71335

X

HOSE

1шт.

28

49763

X

CLAMP - hose

2шт.

29

49773

CLAMP

- tube (71327 & 70576 mtg.)

2шт.

30

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2-20 NF x 1 (49773 mtg.)

1шт.

31

92-8

LOCK WASHER,1/2"

1шт.

32

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF)

1шт.

33

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1" JIC to 1" NP

1шт.

34

70568

HOSE ASS'Y.

1шт.

35

70566

TUBE ASS'Y. (Used up to ser. #3-30-57) (Order ref. #37)

1шт.

36

71337

CLIP

HOSE ASS'Y. (Used up to ser. #3-3057) (Order ref. #37)

1шт.

37

72149

TUBE ASS'Y. (Used from ser. #3-30-57 and up to ser. #7080554)

1шт.

38

74507

TUBE ASS'Y. (Used from ser. #7080554)

1шт.

39

74508

TUBE ASS'Y. (Used from ser. #7080554 and up to ser. #7080902)

1шт.

40

R12722

TUBE ASS'Y. (Used from serial #7080902)

1шт.

41

R13206

HOSE ASS'Y. (Used from serial #7080902)

1шт.

42

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 1" JIC to 3/4 NP

1шт.

43

R11405

CLAMP

- tube (74507 mtg.)

1шт.

44

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4-28 NF x 7/8 (R11405 mtg.)

1шт.

45

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

46

25-114

NUT,1/4"-28, G5

- reg. SH hex (1/4-28 NF)

1шт.

47

R13049

CLAMP - tube (74508 & R12722 mtg.)

1шт.

48

71534

BRACKET

1шт.

49

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(71534 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

50

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

51

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

2шт.
