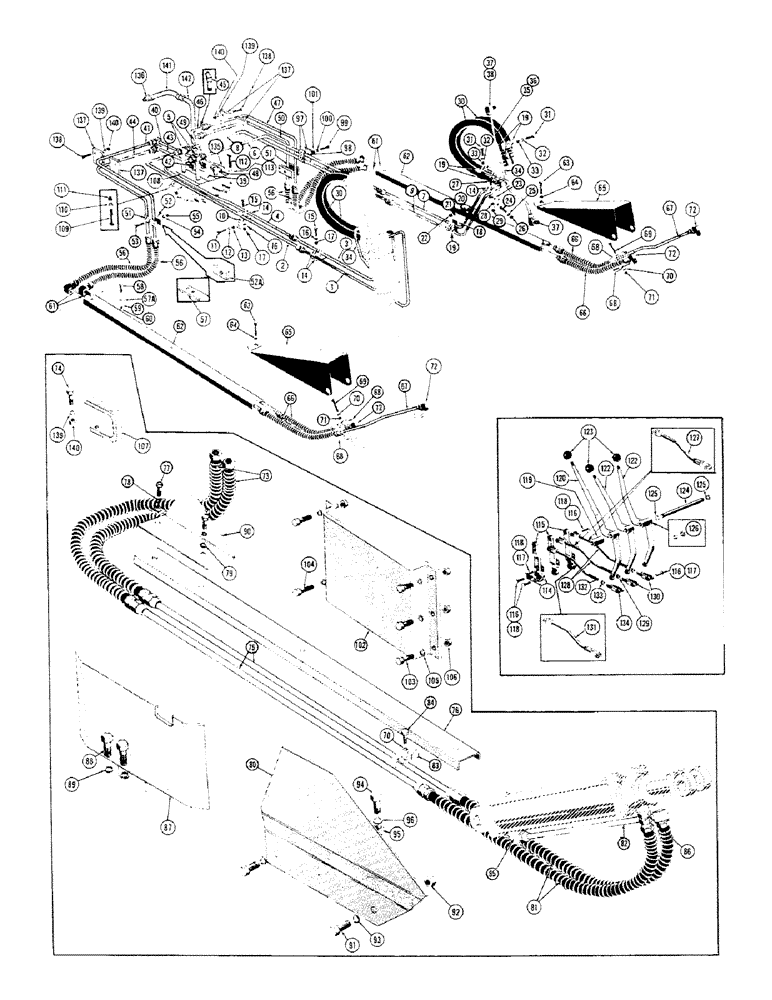

Запчасти Case 800 (234) - HYDRAULIC SYSTEM FOR HYDRAULIC BULLDOZER, DOZER HYDRAULICS SYSTEM (07) - HYDRAULIC SYSTEM

1

71561

TOOL BOX

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

2

71549

TUBE ASS'Y - valve to R.H. lift cylinder (Used up to serial #7081202)

1шт.

R13505

TUBE ASS'Y - valve to R.H. lift cylinder (Used from serial #7081202)

1шт.

3

71559

COIL

TUBE ASS'Y - valve to R.H. lift cylinder

1шт.

4

71555

ARM

TUBE ASS'Y - valve to R.H. lift cylinder (Used up to serial #7081202)

1шт.

R13506

TUBE ASS'Y - valve to R.H. lift cylinder (Used from serial #7081202)

1шт.

5

72119

TEE - special

2шт.

6

72519

TUBE ASS'Y - valve to L.H. lift cylinder (Used up to serial #7081202)

1шт.

R13507

TUBE ASS'Y - valve to L.H. lift cylinder (Used from serial #7081202)

1шт.

7

71565

TUBE ASS'Y - valve to L.H. lift cylinder (Used from serial #7081202)

1шт.

8

72295

EXHAUST MANIFOLD

TUBE ASS'Y - valve to L.H. lift cylinder (Used up to serial #7081202)

1шт.

R13508

TUBE ASS'Y - valve to L.H. lift cylinder (Used from serial #7081202)

1шт.

9

71563

TUBE ASS'Y - valve to L.H. lift cylinder

1шт.

10

71534

BRACKET

1шт.

11

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1 (71534 mtg.) (45631)

1шт.

12

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (41445) 5/16"

1шт.

13

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

14

32978

PLATE ASSY.

PLATE - clamp

5шт.

15

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 x 1-1/2 (32978 mtg.) (45633)

2шт.

16

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

17

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

18

71603

SPACER

1шт.

19

31665

COLLAR CLAMP

PLATE - clamp

9шт.

20

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

(71603 mtg. & 31665 mtg.) (45634) Hex, 5/16"-24 x 1 3/4", G5

1шт.

21

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

1шт.

22

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

1шт.

23

71573

BRACKET - support

2шт.

24

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(71573 mtg.) (45632) Hex, 5/16"-24 x 1 1/4", G5

2шт.

25

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

2шт.

26

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

2шт.

27

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16-24 NF x 1-1/2 (32978 mtg.) (45633)

2шт.

28

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

25-115

NUT,5/16"-24, G5

- reg. SF (5/16"-24 NF) (48101)

2шт.

30

35582

HOSE

ASS'Y - valve to lift cylinders

4шт.

31

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665 mtg.) (45635)

4шт.

32

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445) 5/16"

4шт.

33

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101)

4шт.

34

71571

BAND,16.875" Length

TUBE ASS'Y - valve to lift cylinder, front port

2шт.

35

71568

BEARING ASSY,95mm ID x 145mm OD x 32mm W

TUBE ASS'Y - valve to lift cylinder, LH rear port

1шт.

36

71569

TUBE ASS'Y - valve to lift cylinders, RH rear port

1шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 1/2 NP (50114)

3шт.

38

33888

ELBOW - special (RH only)

1шт.

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd. pipe, 1/8 NP (Used with 33888)

1шт.

39

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- special, crowning hydraulic system

1шт.

40

72358

SET OF RINGS,0.625" OD, 10.125" Length

TUBE ASS'Y - valve to RH push beam cylinder, upper (Used up to serial #7081202), crowning hydraulic system

1шт.

R14009

TUBE ASS'Y - valve to RH push beam cylinder, upper (Used from serial #7081202), crowning hydraulic system

1шт.

41

71473

TUBE ASS'Y - valve to RH push beam cylinder, upper (Used up to serial #7080872), crowning hydraulic system

1шт.

R11316

TUBE ASS'Y - valve to RH push beam cylinder, upper (Used from serial #7080872 and up to serial #7081202), crowning hydraulic system

1шт.

R14027

TUBE ASS'Y - valve to RH push beam cylinder, upper (Used from serial #7081202), crowning hydraulic system

1шт.

R14401

TUBE ASS'Y - valve to RH push beam cyl. (Used on B/D pull behinds), crowning hydraulic system

1шт.

42

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (50127), crowning hydraulic system

1шт.

43

71609

TUBE ASS'Y - valve to RH push beam cylinder, lower (Used up to serial #7081202), crowning hydraulic system

1шт.

R14005

TUBE ASS'Y - valve to RH push beam cylinder, lower (Used from serial #7081202), crowning hydraulic system

1шт.

44

71471

COVER

TUBE ASS'Y - valve to RH push beam cylinder, lower (Used up to serial #7080872), crowning hydraulic system

1шт.

R11314

TUBE ASS'Y - valve to RH push beam cylinder, lower (Used from serial #7080872 and up to serial #7081202), crowning hydraulic system

1шт.

R14025

TUBE ASS'Y - valve to RH push beam cylinder, lower (Used from serial #7081202), crowning hydraulic system

1шт.

R14395

TUBE ASS'Y - valve to RH push beam cyl (Used on bulldozer pull behinds), crowning hydraulic system

1шт.

45

71407

GASKET

ELBOW - special, crowning hydraulic system

1шт.

46

71623

WASHER

TUBE ASS'Y - valve to LH push beam cylinder, upper (used up to serial #7081202), crowning hydraulic system

1шт.

R14005

TUBE ASS'Y - valve to LH push beam cylinder, upper (Used from serial #7081202), crowning hydraulic system

1шт.

47

71619

TUBE ASS'Y - valve to LH push beam cylinder, upper (Used up to serial #7080872), crowning hydraulic system

1шт.

R11322

TUBE ASS'Y - valve to LH push beam cylinder, upper (Used from serial #7080872 and up to serial #7081202), crowning hydraulic system

1шт.

R14019

TUBE ASS'Y - valve to LH push beam cylinder, upper (Used from serial #7081202), crowning hydraulic system

1шт.

48

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 5/8 JIC to 3/4 NP (50127), crowning hydraulic system

1шт.

49

71621

TUBE ASS'Y - valve to LH push beam cylinder, lower (Used up to serial #7081202), crowning hydraulic system

1шт.

R14029

TUBE ASS'Y - valve to LH push beam cylinder, lower (Used from serial #7081202), crowning hydraulic system

1шт.

50

71617

TUBE ASS'Y - valve to LH push beam cylinder, lower (Used up to serial #7080872), crowning hydraulic system

1шт.

R11324

TUBE ASS'Y - valve to LH push beam cylinder, lower (Used from serial #7080872 & up to serial #7081202), crowning hydraulic system

1шт.

R14023

TUBE ASS'Y - valve to LH psh beam cylinder, lower (Used from serial #7081202), crowning hydraulic system

1шт.

51

31665

COLLAR CLAMP

PLATE - clamp, crowning hydraulic system

2шт.

52

70735

SPACER - (Used up to serial #7081202), crowning hydraulic system

2шт.

52a

74104

SPACER - (Used from serial #7081202), crowning hydraulic system

2шт.

53

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

HHCS - 5/16-24 NF x 2 (31665 & 70735 & 74104 mtg.), crowning hydraulic system

2шт.

54

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), crowning hydraulic system 5/16"

2шт.

70

92-5

LOCK WASHER,5/16"

WASHER, LOCK, (48445), crowning hydraulic system 5/16"

4шт.

71

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (48101), crowning hydraulic system

2шт.

72

D20168

RESTRICTION ASS'Y - flow (Used up to serial #7080907), crowning hydraulic system

4шт.

73

74724

HOSE ASS'Y - (Used from serial #7080907), crowning hydraulic system

4шт.

74

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(Used from S/N 7080907), Crowning hydraulic system Hex, 5/16"-24 x 1 1/4", G5

2шт.

75

74748

TUBE ASS'Y - (Used from serial #7080907), crowning hydraulic system

4шт.

76

74755

GUARD ASS'Y - tube, LH (Used from serial #7080907), crowning hydraulic system

1шт.

74756

GUARD ASS'Y - tube, RH (Used from serial #7080907), crowning hydraulic system

1шт.

77

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2-20 NF x 1-3/4 (Used from serial #7080907), crowning hydraulic system

8шт.

78

92-8

LOCK WASHER,1/2"

(Used from serial #7080907), crowning hydraulic system 1/2"

8шт.

79

95-8

WASHER,1/2"

- plain (Used from serial #7080907), crowning hydraulic system 1/2"

4шт.

80

74516

GUARD ASS'Y - hose LH (Used from serial #7080907), crowning hydraulic system

1шт.

74517

GUARD ASS'Y - hose RH (Used from serial #7080907 and up to serial #7081287), crowning hydraulic system

1шт.

81

39882

FLEXIBLE HOSE

HOSE ASS'Y - (Used from serial #7080907), crowning hydraulic system

4шт.

82

39897

TUBE ASS'Y - (Used from serial #7080907), crowning hydraulic system

2шт.

83

16185

GRILLE ASSY

CLAMP - tube (Used from serial #7080907), crowning hydraulic system

2шт.

84

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, (Used from S/N 7080907), crowning hydraulic system Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

85

D20168

RESTRICTOR ASS'Y - flow (Used from serial #7080907), crowning hydraulic system

2шт.

86

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male (Used from serial #7080907), crowning hydraulic system

2шт.

87

R11325

GUARD ASS'Y - LH (Used from serial #7080907 and up to #7081202), crowning hydraulic system

1шт.

R11372

GUARD ASS'Y - RH (Used from serial #7080907 and up to #7081202), crowning hydraulic system

1шт.

88

14-1632

BOLT,Hex, 1" - 14 x 2", Gr 5, Full Thd

HHCS - 1-14 NF x 2 (Used from serial #7080907 up to #7081202), crowning hydraulic system

2шт.

89

92-16

LOCK WASHER,1"

WASHER, LOCK, (Used from S/N 7080907 and up to S/N 7081202), Crowning hydraulic system 1"

4шт.

90

74751

PLATE - step (Used from serial #7080907), crowning hydraulic system

2шт.

91

14-1288

BOLT,Hex, 3/4" - 16 x 5-1/2", Gr 5

HHCS - 3/4-16 NF x 5-1/2 (74516 & 74517 mtg.) (Used from serial #7080907 and up to serial #7081287), crowning hydraulic system

4шт.

92

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4-16 NF) (Used from serial #7080907 and up to serial #7081287), crowning hydraulic system

4шт.

93

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (Used from S/N 7080907 and up to S/N #7081287), Crowning hydraulic system 3/4"

4шт.

94

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(74516 & 74517 mtg. (Used up to S/N 7081287), crowning hydraulic system Hex, 5/8"-18 x 1 1/2", G5

2шт.

95

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8-18 NF) (Used from serial #7080907 and up to serial #7081287), crowning hydraulic system

2шт.

96

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (Used from S/N 7080907 and up to S/N 7081287), Crowning hydraulic system 5/8"

2шт.

97

38368

PLATE - clamp (Used from serial #7081202), crowning hydraulic system

2шт.

98

35335

SPACER - (Used from serial #7081202), crowning hydraulic system

1шт.

99

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS - 1/2-24 NF x 2 (Used from serial #7081202), crowning hydraulic system

1шт.

100

92-8

LOCK WASHER,1/2"

(Used from serial #7081202), crowning hydraulic system 1/2"

1шт.

101

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (Used from serial #7081202), crowning hydraulic system

1шт.

102

R13987

GUARD ASS'Y - (Used from serial #7081202), crowning hydraulic system

2шт.

103

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2 (R13987 mtg.) (Used from serial #7081202), crowning hydraulic system

6шт.

104

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8-24 NF x 1-1/4 (R13987 mtg.) (Used from serial #7081202), crowning hydraulic system

4шт.

105

92-6

LOCK WASHER,3/8"

WASHER, LOCK, (Used from serial #7081202), crowning hydraulic system 3/8"

10шт.

106

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (Used from serial #7081202), crowning hydraulic system

10шт.

107

R13999

GUIDE - hose (Used from serial #7081202), crowning hydraulic system

2шт.

108

71343

BRACKET

VALVE ASS'Y - hydraulic (See figure 300 for breakdown), lever & system

1шт.

109

14-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

HHCS - 1/2-20 NF x 2-1/2 (71343 mtg.) (45712), lever & valve system

2шт.

110

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

2шт.

111

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104), lever & valve system

2шт.

112

14-832

BOLT,Hex, 1/2" - 20 x 2", Gr 5

HHCS 1/2-20 NF x 2 (71343 mtg.) (45710), lever & valve system

1шт.

113

92-8

LOCK WASHER,1/2"

(48448), lever & valve system 1/2"

1шт.

114

71316

X

LINK - hydraulic valve, lever & system

6шт.

115

71301

LEVER - hydraulic valve, system

3шт.

116

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (48663), Lever & valve system 3/8" x 1.060"

12шт.

118

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (48682), Lever & valve system 3/32" x 5/8"

15шт.

119

NSS

NOT SOLD SEPARAT

SPACER - control lever (Used up to serial #7080902) (Order (1) #74849 spacer & (2) #74898 bushings), valve system

1шт.

74849

SPACER - control lever (Used from serial #7080902), valve system

1шт.

120

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Dozer) (Used up to serial #7080902) (Order (1) #74888 lever & (2) #74898 bushings), valve system

1шт.

R13764

LEVER ASS'Y - hydraulic control (Dozer) (Used from serial #7081201), valve system

1шт.

121

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Rt. tilt) (Used up to serial #7080902) (Order (1) #74887 lever & (2) #74898 bushings), valve system

1шт.

74887

LEVER ASS'Y - hydraulic control (Rt. tilt) (Used from serial #7080902 and up to serial #7081201), valve system

1шт.

R13767

LEVER ASS'Y - hydraulic control (Rt. tilt) (Used from serial #7081201), valve system

1шт.

122

NSS

NOT SOLD SEPARAT

LEVER ASS'Y - hydraulic control (Lt. tilt) (Used up to serial #7080902) (Order (1) #74892 lever & (2) #74898 bushings), valve system

1шт.

74892

LEVER ASS'Y - hydraulic control (Lt. tilt) (Used from serial #7080902 and up to serial #7081201), valve system

1шт.

R13766

LEVER ASS'Y - hydraulic control (Lt. tilt) (Used from serial #7081201), valve system

1шт.

123

CAS31375

KNOB

BALL - grip, lever & valve system

3шт.

124

70148

SHAFT - hydraulic control tower, lever & valve system

1шт.

125

W10757S

X

RING - snap, lever & valve system

2шт.

126

74898

BUSHING - nylon (Used from serial #7080902), lever & valve system

8шт.

127

71513

ROD ASS'Y - hydraulic control (Used up to serial #7081201), lever & valve system

2шт.

R13758

ROD ASS'Y - hydraulic control (Used from serial #7081201), lever & valve system

2шт.

128

71512

CRANK

ROD - hydraulic control (Used up to serial #7081201), lever & valve system

1шт.

R13761

ROD - hydraulic control (Used from serial #7081201), lever & valve system

1шт.

129

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8-24 NF) (48102), lever & valve system

1шт.

130

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever & valve system

1шт.

131

71515

ROD ASS'Y - hydraulics control (Used up to serial #7081201), lever & valve system

1шт.

R13759

ROD ASS'Y - hydraulics control (Used from serial #7081201), lever & valve system

1шт.

132

71514

ROD - hydraulic control (Used up to serial #7081201), lever & valve system

1шт.

R13760

ROD - hydraulic control (Used from serial #7081201), lever & valve system

1шт.

133

25-116

NUT,Hex, 3/8"-24, G5

- ref. SF hex (3/8-24 NF) (48102), lever & valve system

1шт.

134

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable (48603), lever & valve system

1шт.

135

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree male, 1 JIC x 1 NP (50119), lever & valve system

1шт.

136

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1 JIC x 1 NP (50029), lever & valve system

1шт.

137

72541

RING

BLOCK - clamping, lever & valve system

2шт.

138

14-520

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

(72541 mtg.) (45632), Lever & valve system Hex, 5/16"-24 x 1 1/4", G5

8шт.

139

195-21

WASHER,5/16"

plain (48425), Lever & valve system 5/16"

10шт.

140

131-365

LOCK NUT

NUT - lock (5/16-24 NF) (11942), lever & valve system

10шт.

141

R11754

TUBE ASS'Y, lever & valve system

1шт.

142

R11752

TUBE ASS'Y - (Used up to serial #7081201), lever & valve system

1шт.

R13749

TUBE ASS'Y - (Used from serial #7081201), lever & valve system

1шт.
