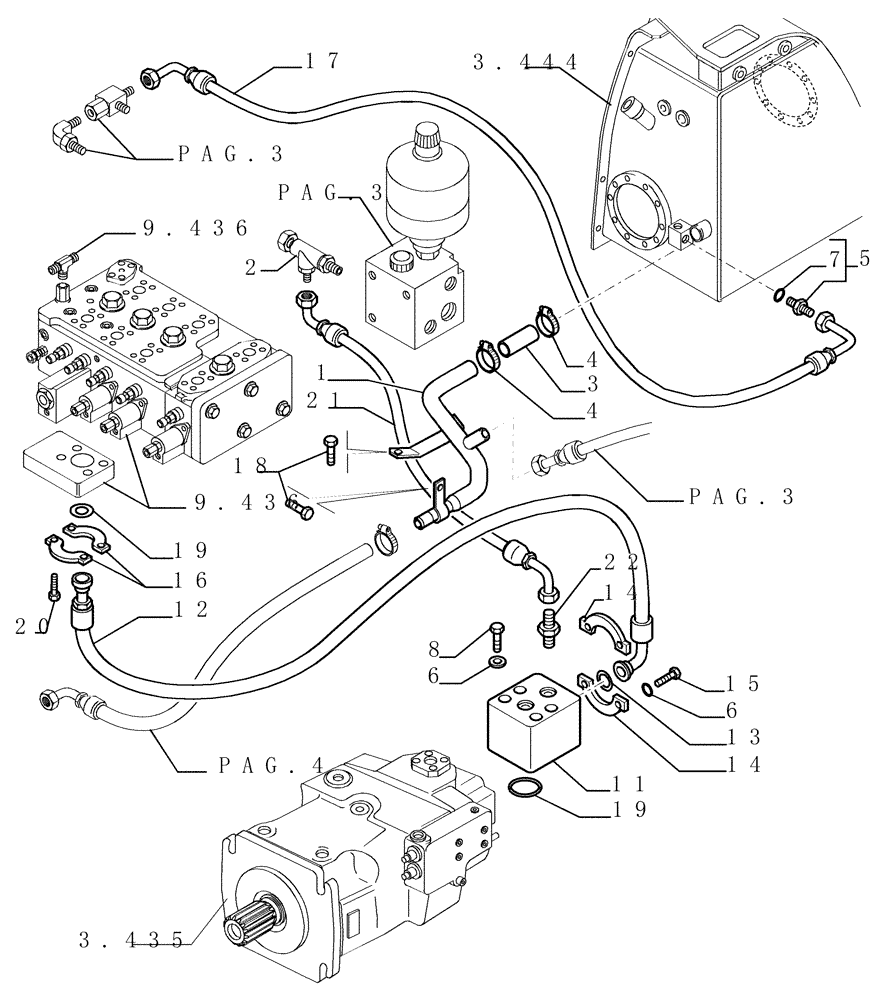

Запчасти Case 1850K LT (3.434[02]) - HYDRAULIC SYSTEM PIPING (07) - HYDRAULIC SYSTEM/FRAME

1

76071052

TUBE

1шт.

2

79066986

TEE

1шт.

3

76027283

HYDRAULIC HOSE

1шт.

4

79083847

HOSE CLAMP,M50-70

2шт.

5

79066940

HYD CONNECTOR

Assy

1шт.

6

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

12шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

8

11114131

BOLT,Hex, M12 x 95, 10.9

4шт.

11

76074620

HALF-FLANGE

90°

1шт.

12

76071039

HYDRAULIC HOSE

Delivery

1шт.

13

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

In Alternative

1шт.

13

70924200

O-RING

M32.92 ID x 3.53 Thk, In Alternative

1шт.

14

71404313

CLAMP,Half

2шт.

15

14422231

HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

16

71444029

HALF-FLANGE

1 1/4" - In Alternative

1шт.

16

76044748

FLANGE

1 1/4"

1шт.

17

76071108

HYDRAULIC HOSE

1шт.

18

14313231

HEX SOC SCREW,M14 x 2 x 45mm, Cl 10.9, Full Thd

2шт.

19

14464081

O-RING,50.39mm ID x 3.53" Width

In Alternative

2шт.

19

70924192

O-RING

M37.69 x 3.53, In Alternative

2шт.

20

14420131

HEX SOC SCREW,M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

21

76071035

HYDRAULIC HOSE

1шт.

22

79066938

FITTING

1шт.
