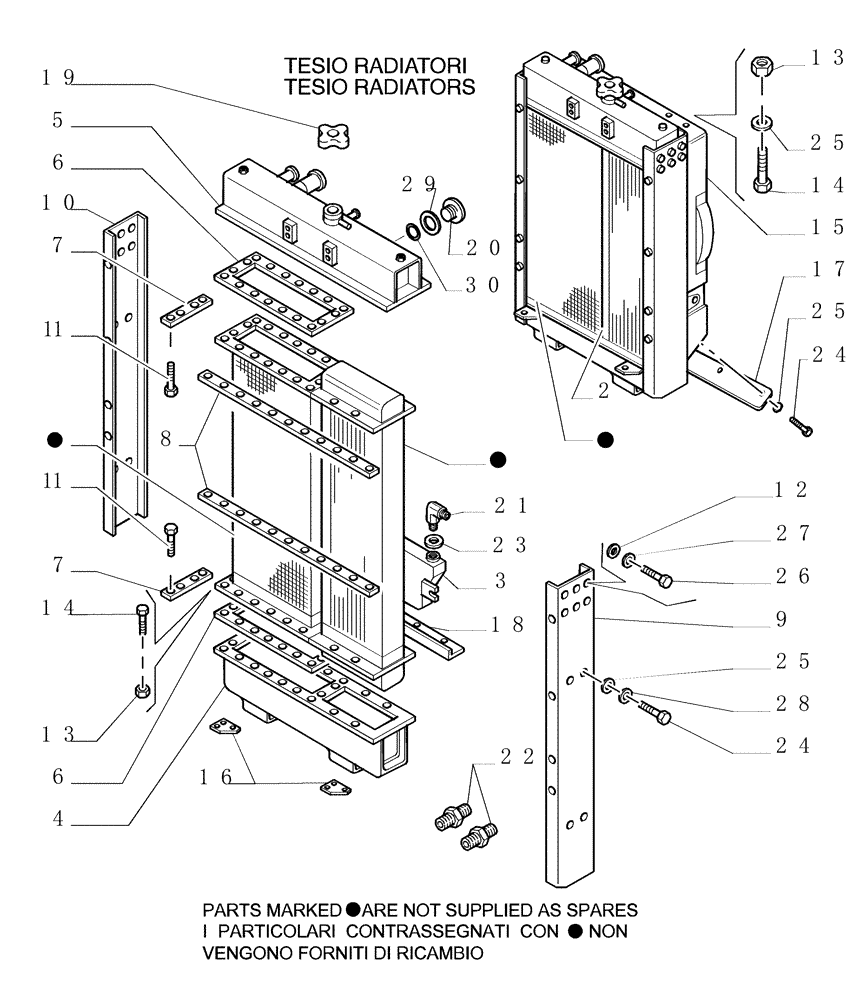

Запчасти Case 1850K LT (0.550[04]) - WATER RADIATOR - COMPONENTS (01) - ENGINE

2

76054680

OIL COOLER

Transmission

1шт.

3

76054679

OIL COOLER

Hydraulic

1шт.

4

76069560

PAN

Lower

1шт.

5

76069561

PAN

Upper

1шт.

6

76069563

SEAL

2шт.

7

76069565

STRAP

Side

4шт.

8

76069564

STRAP

3шт.

9

76069567

SIDE PANEL

RH

1шт.

10

76069566

SIDE PANEL

LH

1шт.

11

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

18шт.

12

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

13шт.

13

76072310

NUT

64шт.

14

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

46шт.

15

76072182

CONVEYOR

1шт.

16

76069584

PLATE

2шт.

17

76069583

COVER

Lower

1шт.

18

76069568

STRAP

Lower

1шт.

19

76069569

RADIATOR CAP

1шт.

20

76072313

LEVEL GAUGE

1шт.

21

76020463

ELBOW,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

A 90°

2шт.

22

79098125

HYD CONNECTOR

2шт.

23

76072312

SEAL

8 mm

2шт.

24

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

17шт.

25

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

19шт.

26

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

13шт.

27

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

13шт.

28

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

19шт.

29

76072314

O-RING

1шт.

30

76072315

WASHER

1шт.
