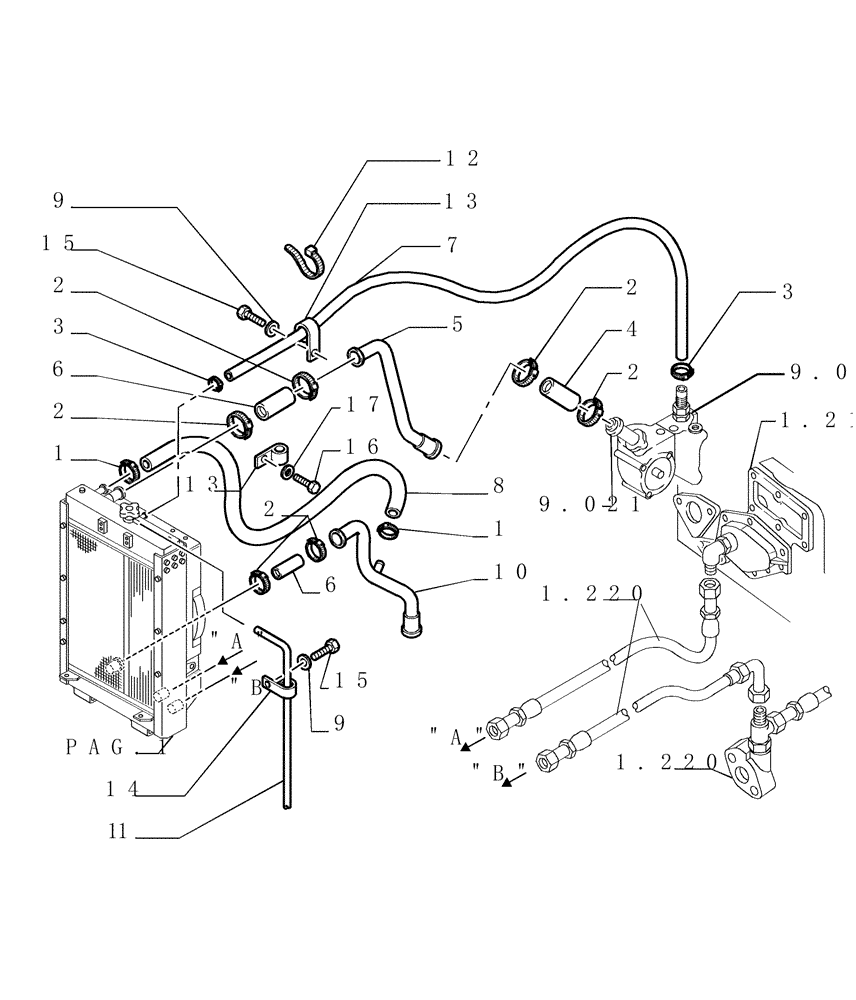

Запчасти Case 1850K LT (0.550[03]) - ENGINE COOLING SYSTEM - PIPING (01) - ENGINE

1

79083843

HOSE CLAMP,M20-35

2шт.

2

79083847

HOSE CLAMP,M50-70

6шт.

3

79084753

HOSE CLIP,M10-18

2шт.

4

79106868

HOSE,50.00 mm ID x 95.00 mm

1шт.

5

76046697

TUBE

1шт.

6

76039648

HOSE,57.00 mm ID x 90.00 mm

2шт.

7

76046752

HOSE,10.00 mm ID x 850.00 mm

1шт.

8

76052928

HOSE,25.00 mm ID x 1350.00 mm

1шт.

9

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

10

76046698

TUBE

1шт.

11

76052913

HOSE,8.00 mm ID x 1600.00 mm

1шт.

12

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

2шт.

13

10448890

CLAMP,36mm, Coat, P Type

36 mm

3шт.

14

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

3шт.

15

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

16

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

17

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.
