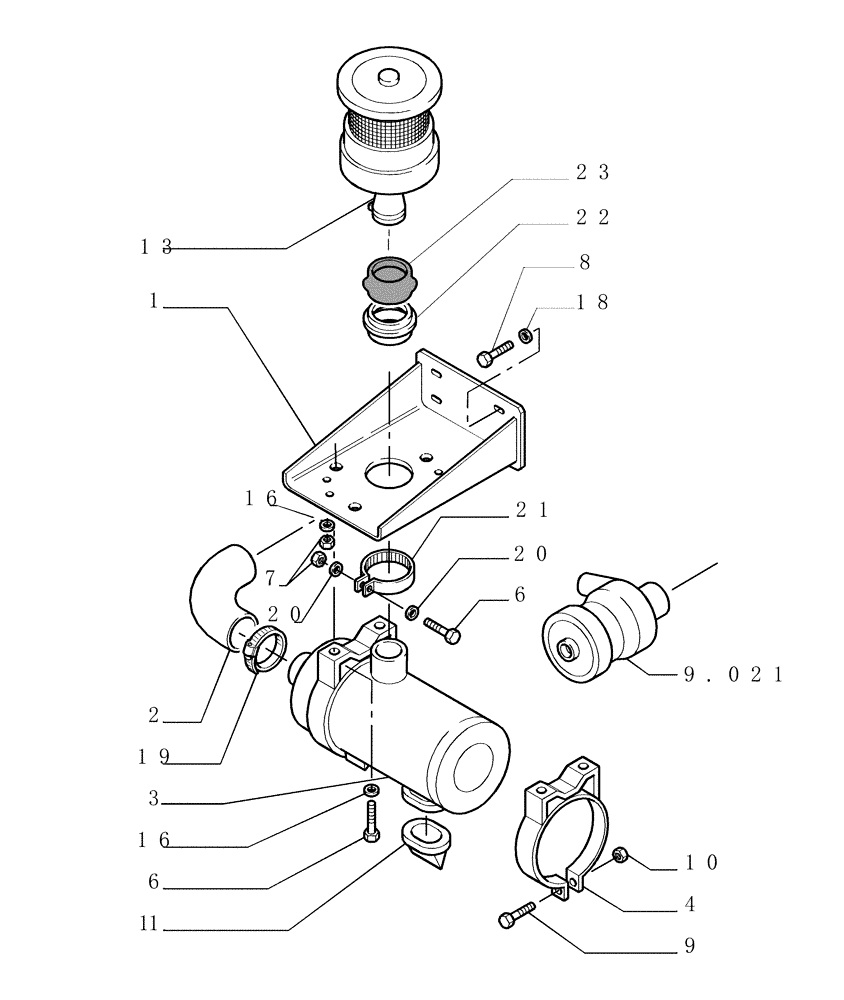

Запчасти Case 1850K LT (0.540[01]) - DRY AIR CLEANER (01) - ENGINE

1

76046712

SUPPORT

1шт.

2

76072346

HOSE

1шт.

3

79098801

AIR CLEANER

12"- Assy, See Pg. 2

1шт.

4

79106929

BRACKET

2шт.

6

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

7

11701721

NUT,M10, Cl 10

4шт.

8

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

9

16044031

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

10

16100821

NUT,M8, Cl 10

2шт.

11

73042943

DUST VALVE

1шт.

13

76046298

AIR PRE-CLEANER ASSY

1шт.

16

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

18

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

19

79083854

HOSE CLAMP,120mm - 145mm, Worm Gear

1шт.

20

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

21

79083852

HOSE CLAMP,100mm - 125mm, Worm Gear

M100 x 125

1шт.

22

76068454

RING

1шт.

23

79092237

HOSE

1шт.
