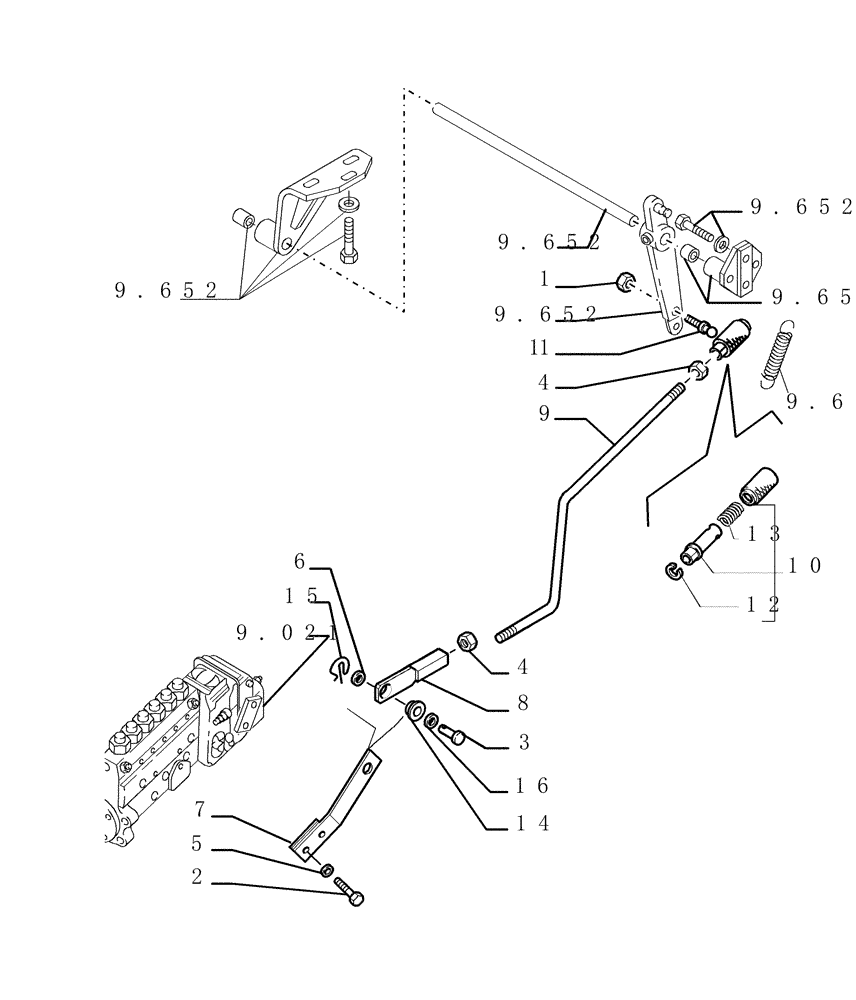

Запчасти Case 1850K LT (0.520[01]) - THROTTLE CONTROL (01) - ENGINE

1

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

1шт.

2

10902231

SCREW,Hex, M6 x 16mm, Cl 10.9

2шт.

3

10050814

PIN,M8 x 22 L

M8 x 22

1шт.

4

11701721

NUT,M10, Cl 10

2шт.

5

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

6

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

Upper

1шт.

7

76068471

ARM

1шт.

8

76071044

YOKE

14 x 16

1шт.

9

76071109

TIE-ROD

1шт.

10

76071046

QUICK MALE COUPLING

Assy

1шт.

11

76071045

BALL STUD,M10 x 1.5

BALL PIN

1шт.

12

13420776

RING

8 x 1.25 x 35 mm

1шт.

13

79086837

SPRING

1шт.

14

76071073

BUSHING

1шт.

15

76071114

SPRING

1шт.

16

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.
