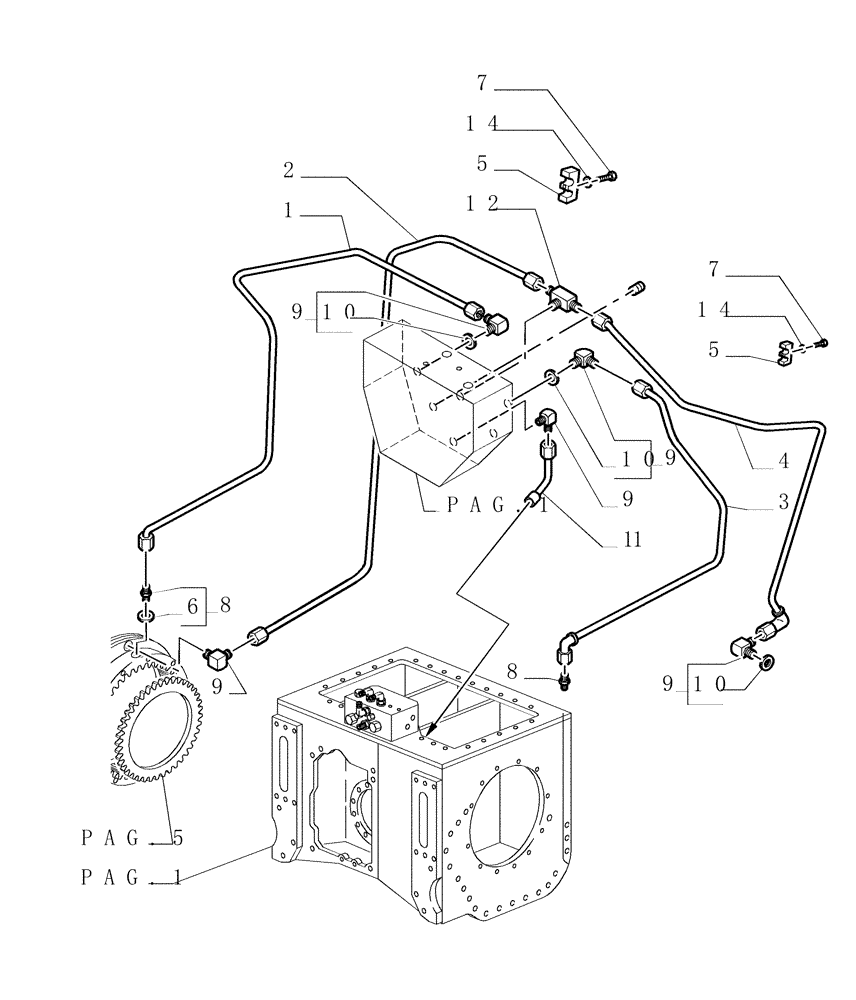

Запчасти Case 1850K LT (1.266[06]) - REAR TRANSMISSION - PIPING (29) - HYDROSTATIC DRIVE

1

76040727

BRAKE LINE

RH

1шт.

2

76040729

BRAKE LINE

RH

1шт.

3

76072228

BRAKE LINE

LH

1шт.

4

76072229

BRAKE LINE

LH

1шт.

5

76040682

CLAMP

2шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

7

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

8

79066938

FITTING

Assy

2шт.

9

79067018

90 ELBOW,9/16-18 ORFS x M14 x 1.5 ORB

Assy, 90°

5шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

11

76069331

BRAKE LINE

1шт.

12

79066986

TEE

1шт.

13

10118740

PLUG,M14 x 1.5 x 15, Brass

2шт.

14

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.
