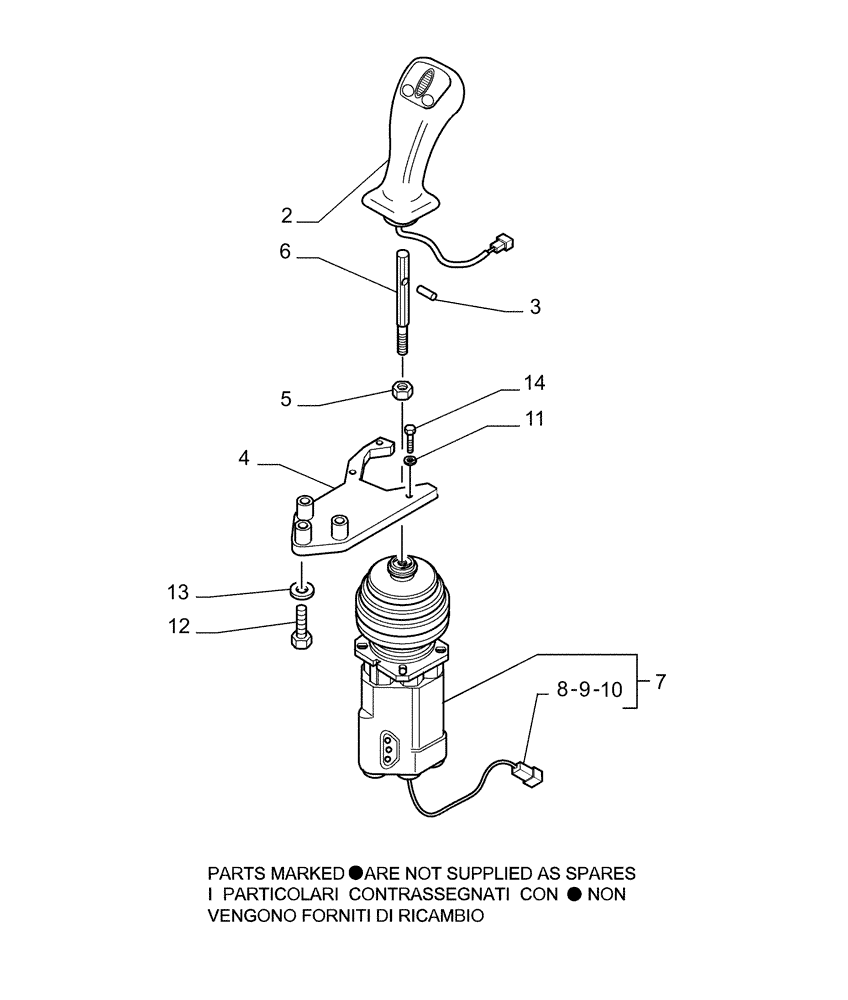

Запчасти Case 1850K LT (1.222[01]) - TRANSMISSION / STEERING CONTROL (29) - HYDROSTATIC DRIVE

2

NS

NOT SERVICED

ASSY, Incl. 15-19

1шт.

3

14601271

ROLL PIN

M5 x 28

1шт.

4

76074993

SUPPORT

3шт.

5

11702921

NUT,M12, Cl 10

3шт.

6

76054722

ROD

1шт.

7

76075317

MANIPULATOR

ASSY

1шт.

8

76073268

MULTIPOLE CONNECTOR

1шт.

9

76047488

CABLE TERMINAL

1шт.

10

76073313

LOCK

1шт.

11

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

12

11107431

SCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

13

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

14

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

1шт.

15

76087401

HANDLE GRIP

Art Not Available

1шт.

16

12331287

MULTIPOLE CONNECTOR,Male

Art Not Available

1шт.

17

12330244

CABLE TERMINAL

Art Not Available

3шт.

18

12330383

SEAL

Art Not Available

3шт.

19

12417287

INSERT

Art Not Available

1шт.
