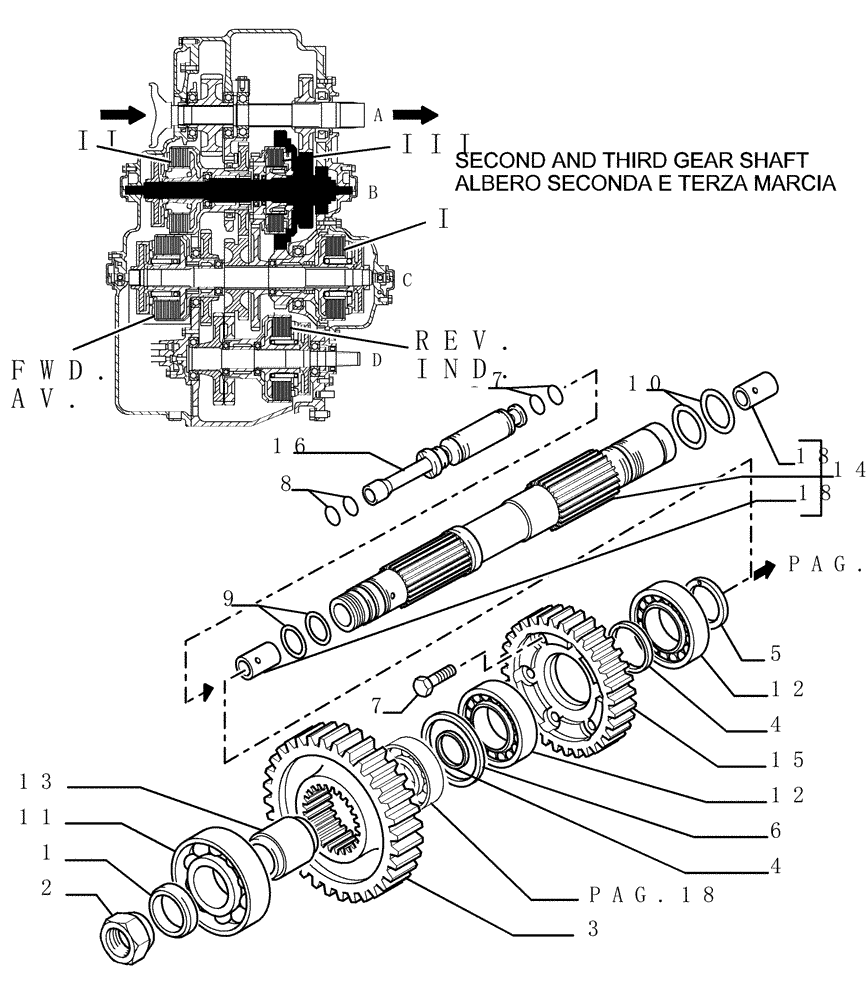

Запчасти Case 1850K LT (1.211[20]) - TRANSMISSION - SECOND & THIRD GEAR SHAFT (29) - HYDROSTATIC DRIVE

1

581371

THRUST PLATE

1шт.

2

4951301

NUT

1шт.

3

4962190

GEAR

59T

1шт.

4

4962198

SPACER

2шт.

5

4975732

THRUST PLATE

1шт.

6

11071376

SNAP RING,M90, Ext

(84.5 Free ID x 3 Thk)

1шт.

7

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

(M15.54 ID x 2.62 Thk)

2шт.

9

14463881

O-RING,1.359" ID x 0.139" Width

2шт.

10

14464381

O-RING,47.22mm ID x 2.137" OD x 3.53mm

(M47.22 ID x 3.53 Thk)

2шт.

11

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm

1шт.

12

76087581

BALL BEARING,50mm ID x 80mm OD x 16mm W

50 x 80 x 16 mm

2шт.

13

79026691

SPACER,50.1mm ID x 62mm OD x 69mm L

1шт.

14

76027783

DRIVEN SHAFT

Assy

1шт.

15

79041938

GEAR

45T

1шт.

16

79060757

PIN,19.8mm OD x 98mm L

1шт.

17

79086720

SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk

In Alternative

2шт.

17

79051013

SEAL,20.168mm OD x 1.143mm Width

In Alternative

2шт.

18

76027777

BUSHING,20.03mm ID x 26mm OD x 27mm L

2шт.
