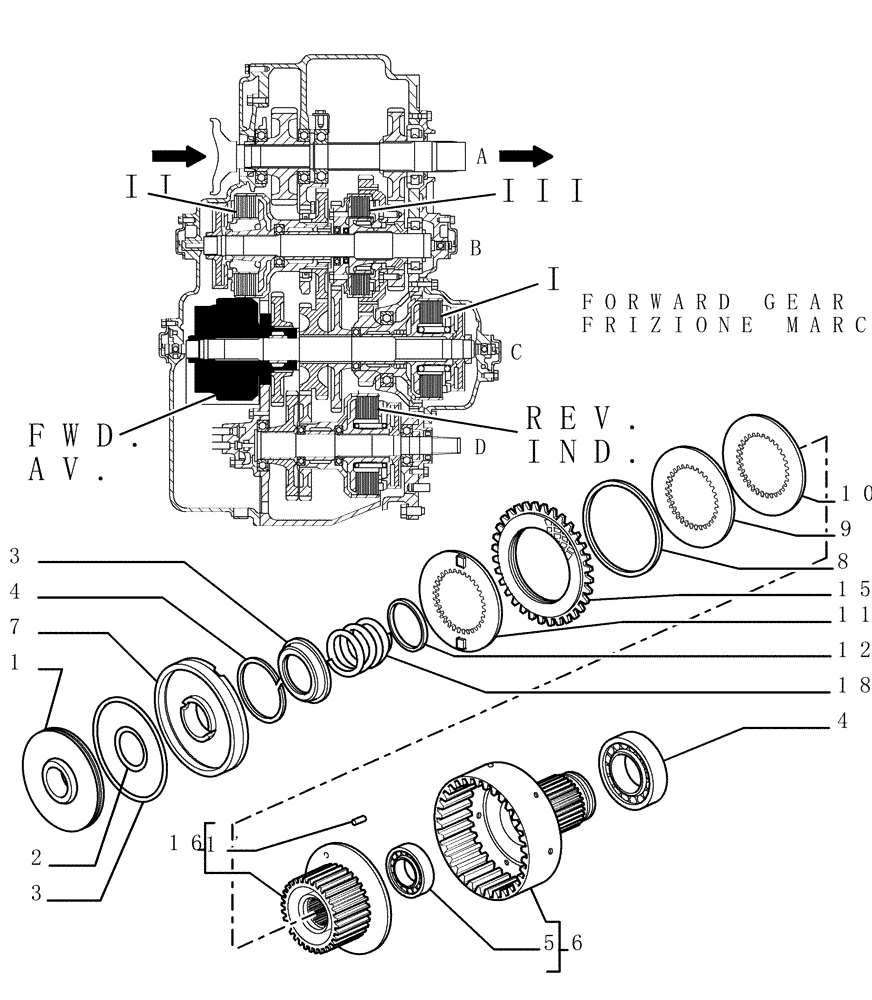

Запчасти Case 1850K LT (1.211[15]) - TRANSMISSION - FORWARD CLUTCH (29) - HYDROSTATIC DRIVE

1

4983905

PISTON

1шт.

2

14459781

O-RING,55.24mm ID x 60.479mm OD x 2.62mm Thk

1шт.

3

14467781

O-RING,0.139" Thk x 6.234" ID, -259, Cl 7, 75 Duro

(M158.3 ID x 3.53 Thk)

1шт.

4

28042600

BALL BEARING,100mm ID x 150mm OD x 24mm W

100 x 150 x 24 mm

1шт.

5

79032204

NEEDLE BEARING,50mm ID x 80mm OD x 28mm W

1шт.

6

76087579

DRUM

Outer Assy

1шт.

7

79036885

PISTON

1шт.

8

79038905

SPRING CLIP

10шт.

9

79040802

CLUTCH DISC

CLUTCH DISK

9шт.

10

79040803

DISC,127.96mm ID x 195mm OD x 3mm Thk

1шт.

11

79041947

DISC,121.48mm ID x 195mm OD x 2.5mm Thk

1шт.

12

79041949

SPACER

1шт.

13

79041950

CUP

1шт.

14

79041951

SNAP RING

1шт.

15

79079550

DISC,145mm ID x 208mm OD x 3.5mm Thk

Friction

10шт.

16

76087577

DRUM

Assy

1шт.

17

79071789

NEEDLE ROLLER

3шт.

18

79077584

SPRING

1шт.
