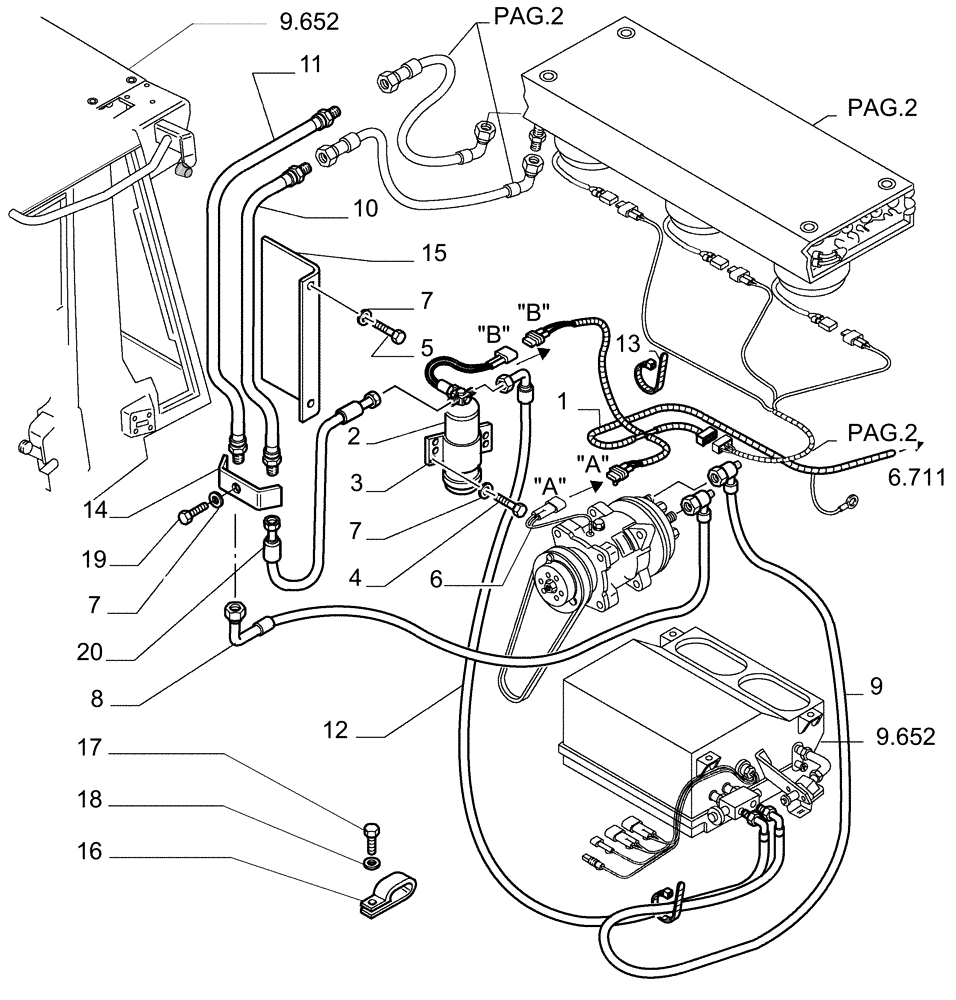

Запчасти Case 1850K LT (9.665[03]) - AIR CONDITIONING - PIPING - OPTIONAL CODE 76078112 (19) - OPTIONS

1

76080821

WIRE HARNESS

Air Conditioning

1шт.

2

76035687

RECEIVER-DRYER

Assy, See Pg. 6

1шт.

3

79092065

BRACKET

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

5

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

6

76066222

WIRE HARNESS

Compressor

1шт.

7

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

5шт.

8

76052510

HYDRAULIC HOSE

1шт.

9

76020512

HYDRAULIC HOSE,12.7mm ID x 2020mm L

Incl. 128485A1 O-Ring for 1"-14 end & 76049689 O-Ring

1шт.

10

76076702

TUBE

1шт.

11

76076701

TUBE

1шт.

12

76067370

HOSE

Incl. (2) 128483A1 O-Rings

1шт.

13

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

10шт.

14

76076703

BRACKET

1шт.

15

76067382

SHIELD

1шт.

16

10115701

CLAMP,12mm, Coat, P Type

3шт.

17

13276011

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8

3шт.

18

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

19

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

20

76076721

FLEXIBLE HOSE

1шт.
