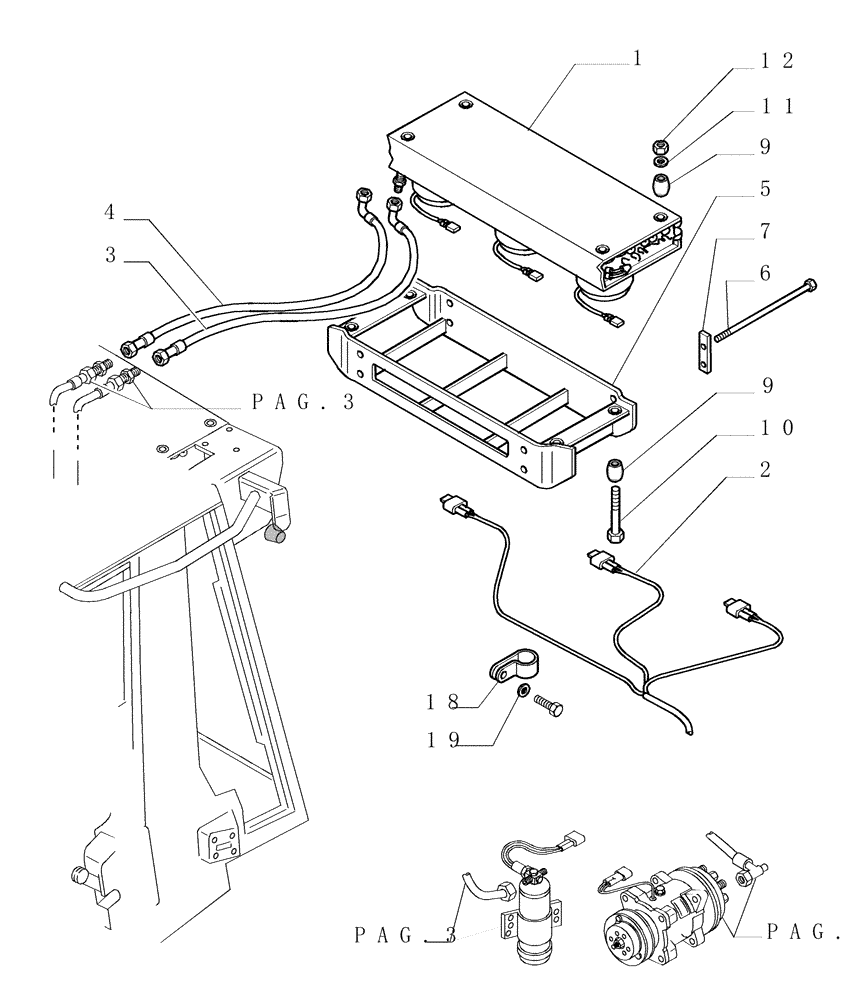

Запчасти Case 1850K LT (9.665[02]) - AIR CONDITIONING - CONDENSER - OPTIONAL CODE 76078112 (19) - OPTIONS

1

76067510

CONDENSER

Assy, See SGR. 9.653, Pg. 4

1шт.

2

76066221

WIRE HARNESS

1шт.

3

76076719

FLEXIBLE HOSE

1шт.

4

76076720

FLEXIBLE HOSE

1шт.

5

76076695

SUPPORT

1шт.

6

76067404

TIE-ROD

4шт.

7

76076696

SHIM

2шт.

9

76067945

PAD

8шт.

10

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

4шт.

11

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

12

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

4шт.

17

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

18

71405770

CLAMP,25mm ID, 15mm Bolt Hole, P Type

1шт.

19

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

19

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.
