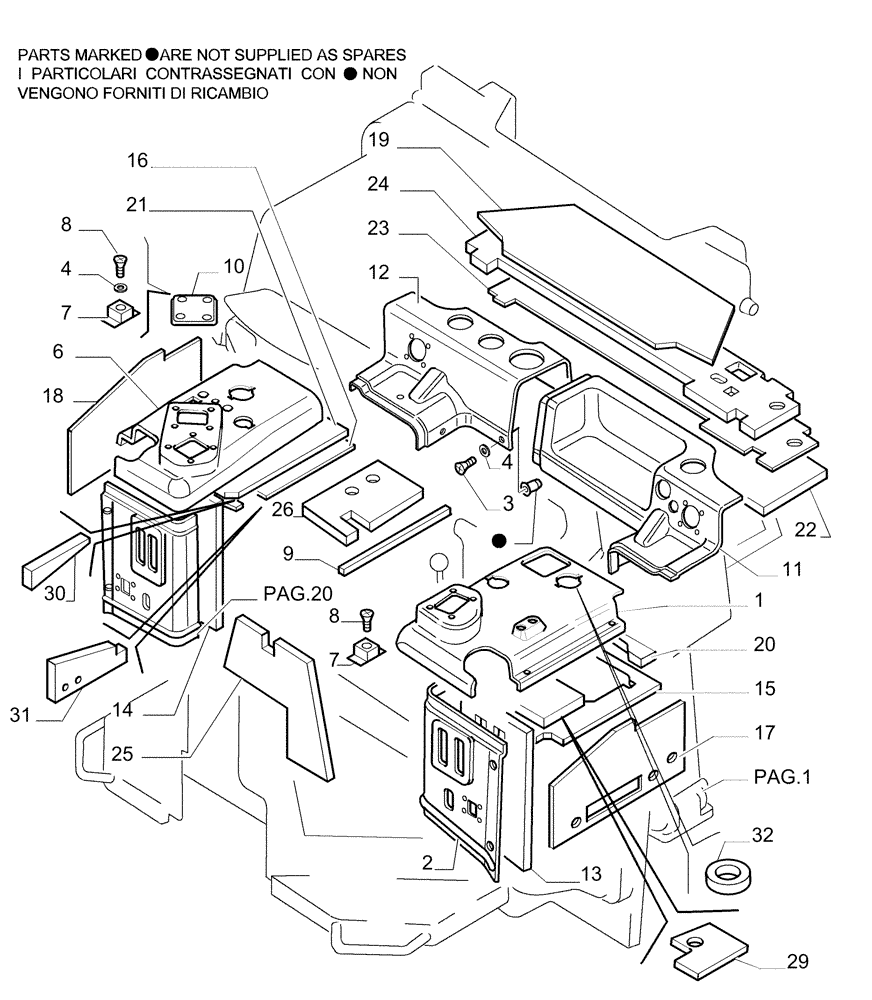

Запчасти Case 1850K LT (9.653[18]) - ROPS CAB - COVERING - OPTIONAL CODE 76078133 (19) - OPTIONS

1

76067959

CONSOLE

Upper LH

1шт.

2

76067956

PANEL

Front LH

1шт.

3

79105220

SCREW,Phillips Drive, Oval HD, M6 x 20mm

16шт.

4

79076208

WASHER

Nylon

20шт.

6

76067961

CONSOLE

Upper RH

1шт.

7

76047274

NUT,M6 x 1

8шт.

8

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

8шт.

9

76067665

SEAL

RH

1шт.

10

76067962

COVER

Controls

1шт.

11

76067968

TRIM PANEL

Rear

1шт.

12

76067970

TRIM PANEL

Rear RH

1шт.

13

76067326

INSULATING PANEL

LH

1шт.

14

76067327

INSULATING PANEL

RH

1шт.

15

76067978

FOAM INSULATION

Upper LH

1шт.

16

76067488

INSULATING PANEL

Upper RH

1шт.

17

76067489

INSULATING PANEL

Side LH

1шт.

18

76067490

INSULATING PANEL

Side RH

1шт.

19

76067491

INSULATING PANEL

1шт.

20

76067977

FOAM INSULATION

Upper LH

1шт.

21

76067497

INSULATING PANEL

Upper RH

1шт.

22

76067498

INSULATING PANEL

Outer Rear

1шт.

23

76067499

INSULATING PANEL

Inner Rear

1шт.

24

76067500

INSULATING PANEL

Inner Rear

1шт.

25

76067506

INSULATING PANEL

Dashboard

1шт.

26

76067535

INSULATING PANEL

Outer RH

1шт.

29

76079008

FOAM INSULATION

Upper LH

1шт.

30

76079009

FOAM INSULATION

Upper RH

1шт.

31

76079010

FOAM INSULATION

Outer RH

1шт.

32

76079012

FOAM INSULATION

2шт.
