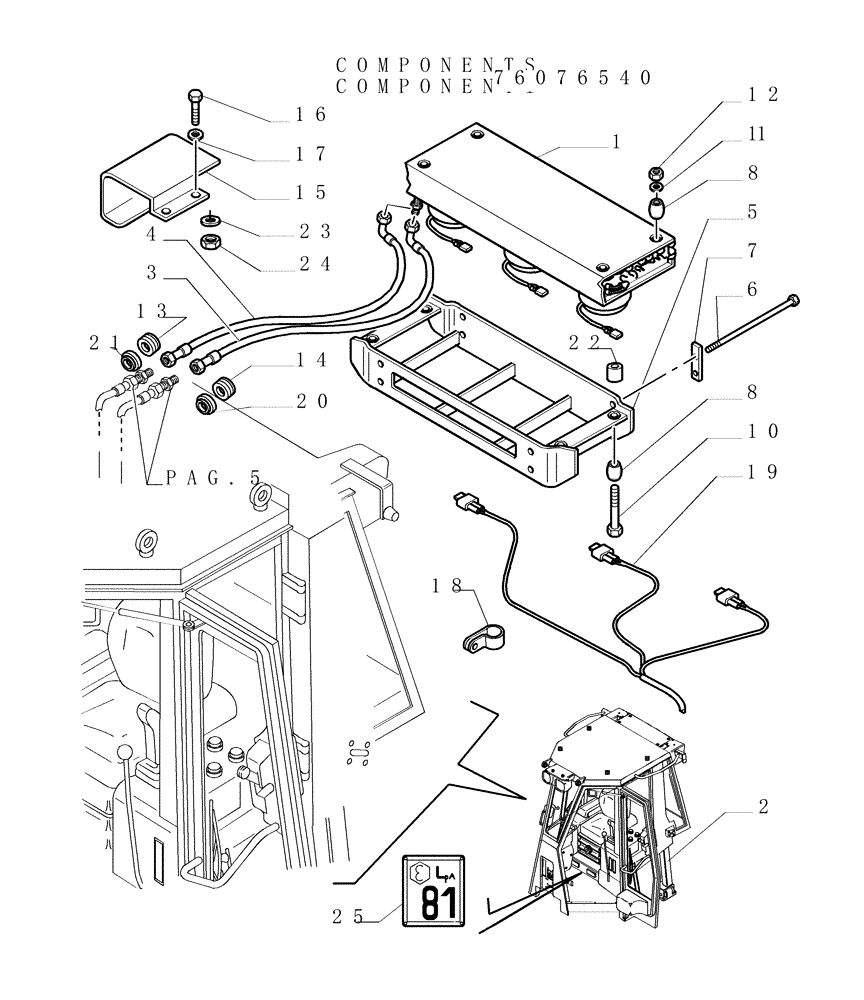

Запчасти Case 1850K LT (9.653[04]) - ROPS CAB WITH CONDITIONER - OPTIONAL CODE 76078133 (19) - OPTIONS

1

76067510

CONDENSER

Assy, See Pg. 9

1шт.

2

76074617

CAB

Assy, See SGR. 9.652 Pg. 3-33

1шт.

3

76076720

FLEXIBLE HOSE

1шт.

4

76076719

FLEXIBLE HOSE

1шт.

5

76076695

SUPPORT

1шт.

6

76067404

TIE-ROD

4шт.

7

76076696

SHIM

2шт.

8

76067945

PAD

8шт.

10

16160121

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

11

76067743

WASHER,M10

4шт.

12

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

13

76067405

RUBBER WASHER

1шт.

14

76067714

RUBBER WASHER

1шт.

15

76067367

GUARD

1шт.

16

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

17

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

18

71405770

CLAMP,25mm ID, 15mm Bolt Hole, P Type

1шт.

19

76066221

WIRE HARNESS

1шт.

20

14496901

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

21

14497101

WASHER,M20 x 37 x 3

1шт.

22

76067770

SPACER

4шт.

23

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

24

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

25

76046311

DECAL

LPA 81

1шт.
