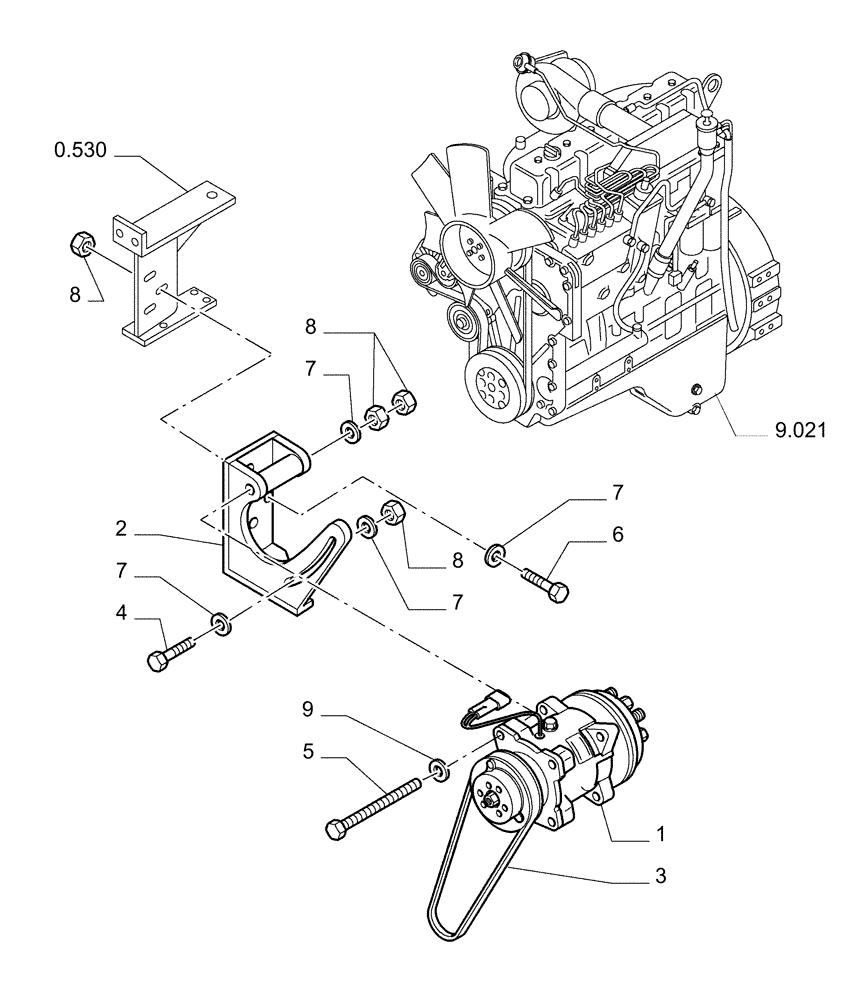

Запчасти Case 1850K LT (9.653[03]) - AIR CONDITIONING - COMPRESSOR - OPTIONAL CODE 76078133 (19) - OPTIONS

1

76047005

AIRCOND. COMPRESSOR

1шт.

76047005R

REMAN-COMPRESSOR

1850K TIER 1

1шт.

76047005C

CORE-COMPRESSOR

Return Number

1шт.

2

76044830

SUPPORT

Compressor

1шт.

3

76047006

BELT

1шт.

4

11107231

SCREW,Hex, M10 x 50mm, Cl 10.9

1шт.

5

11108831

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

3шт.

7

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

3шт.

9

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.
