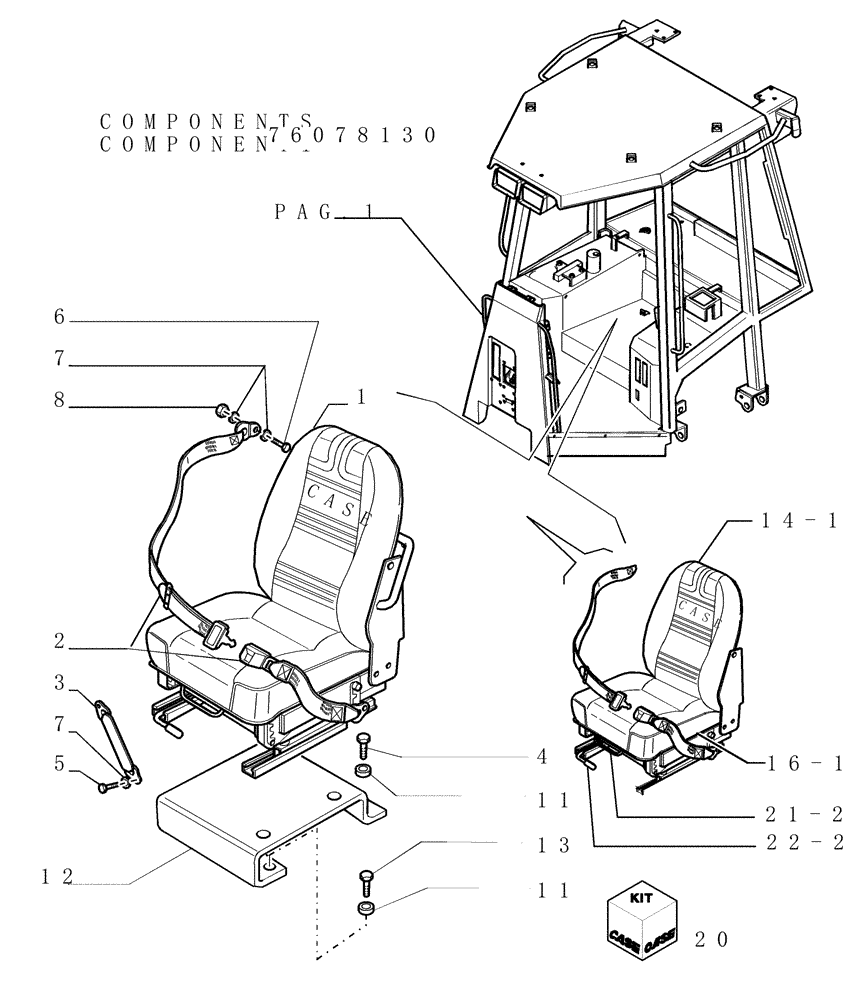

Запчасти Case 1850K LT (9.651[02]) - ROPS CANOPY - OPTIONAL CODE 76078131 (19) - OPTIONS

1

76076731

DRIVER SEAT

Incl. Ref 1A - 1K;Component Parts Not Illustrated

1шт.

2

76079034

SAFETY BELT

1шт.

3

79035976

SHIELD

2шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

4шт.

5

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

6

11106424

SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd

2шт.

7

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

8

11701714

NUT

M10 x 1.5

2шт.

11

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

12

76067254

SUPPORT

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

14

76080719

SEAT COVER

1шт.

15

76080720

SEAT BACK

Assy

1шт.

16

76080721

SEAT COVER

1шт.

17

76080722

SEAT CUSHION

1шт.

18

76080711

SUSPENSION

1шт.

19

76075491

SHOCK ABSORBER

1шт.

20

76080712

LEVER

Kit, Battuta

1шт.

21

76080713

BOLT

Stud Assy

1шт.

22

76080714

HANDLE

1шт.

23

76080715

COVER

1шт.

24

76080716

LEVER

1шт.
