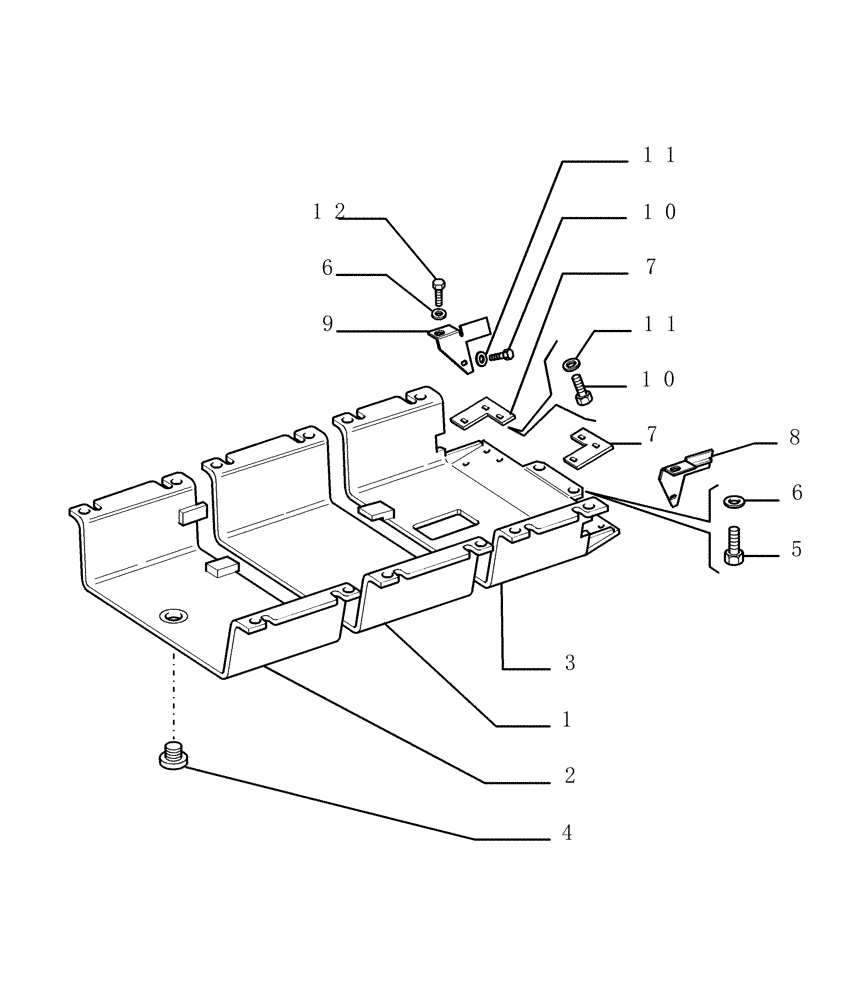

Запчасти Case 1850K LT (9.646[01]) - BOTTOM GUARDS - OPTIONAL CODE 76078367 (19) - OPTIONS

1

76046567

GUARD

Central Lower

1шт.

2

76046568

GUARD

Front Lower

1шт.

3

76046590

GUARD

Rear Lower

1шт.

4

547737

PLUG

1шт.

5

15984134

BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd

12шт.

6

79005239

WASHER,18.8mm ID x 41mm OD x 8mm Thk

14шт.

7

76073329

PLATE

2шт.

8

76073336

BRACKET

1шт.

9

76073337

BRACKET

1шт.

10

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

8шт.

11

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

8шт.

12

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.
