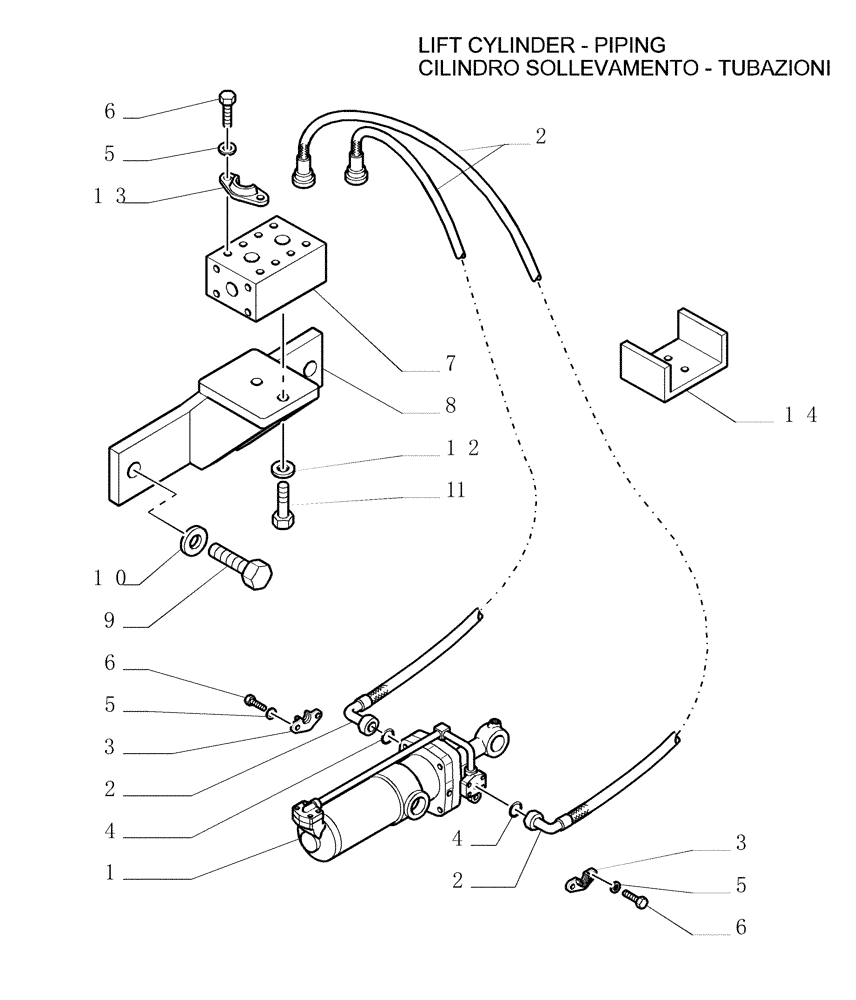

Запчасти Case 1850K LT (9.523[03]) - RIPPER (RP) - RECO - OPTIONAL CODE 76078287 (19) - OPTIONS

1

76031535

LIFT CYLINDER

Assy, See Pg. 4

1шт.

1

76031540R

REMAN-HYD CYLINDER

1850K CASE CRAWLER DOZER (TIER 1), Reman for New PN 76031535

1шт.

1

76031540C

CORE-HYD CYLINDER

Return Number

1шт.

2

76031518

HYDRAULIC HOSE

2шт.

3

70921116

HALF-FLANGE

4шт.

4

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

5

70930370

WASHER,0.44" ID x 0.69" OD x 0.11" Thk

8шт.

6

70921565

SCREW

8шт.

7

76031548

MANIFOLD

1шт.

8

76031549

SUPPORT

1шт.

9

15996931

BOLT,Hex, M24 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

10

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

2шт.

11

70921175

BOLT

2шт.

12

70928178

WASHER

2шт.

13

71404407

HALF-FLANGE

8шт.

14

76076843

BRACKET

1шт.
