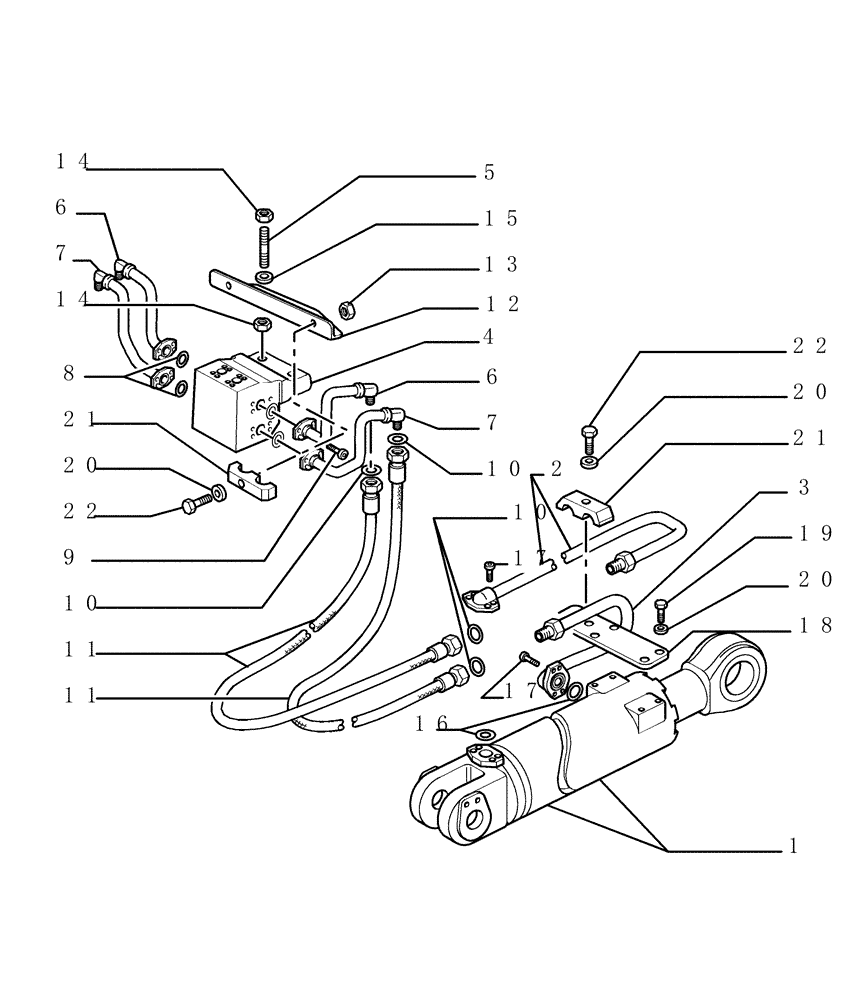

Запчасти Case 1850K LT (9.522[04]) - RIPPER (PD) - LIFT CYLINDERS PIPING - OPTIONAL CODE 76078285 (19) - OPTIONS

1

79113489

CYLINDER

RH Assy, See Pg. 5

1шт.

1

79113488

CYLINDER,Double Acting, 56mm Rod, 480mm Stroke

LH Assy, See Pg. 5

1шт.

2

79113493

HYD TUBE

Rear LH

1шт.

2

79113495

HYD TUBE

Rear RH

1шт.

3

79113492

HYD TUBE,15 mm ID, 20 mm OD, 50 mm Length

Front RH

1шт.

3

79113490

HYD TUBE,15 mm ID, 20 mm OD, 126, 93 mm Length

Front LH

1шт.

4

76046674

BODY

Diverter Valve

1шт.

5

79113880

STUD

2шт.

6

79113868

HYD TUBE

RH

1шт.

6

79113872

HYD TUBE,12 mm ID, 16 mm OD

LH

1шт.

7

79113870

HYD TUBE

RH

1шт.

7

79113874

HYD TUBE,12 mm ID, 16 mm OD

LH

1шт.

8

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

M18.84 ID x 3.53 Thk

4шт.

9

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

10

70930357

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

8шт.

11

79111216

HYDRAULIC HOSE

4шт.

12

76046673

BRACKET

1шт.

13

11701721

NUT,M10, Cl 10

2шт.

14

10717521

THIN NUT,M16 x 2mm, Cl 05

4шт.

15

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

16

70924110

O-RING

M24.99 ID x 3.53 Thk

4шт.

17

14420231

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd

16шт.

18

79113496

PLATE

2шт.

19

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

20

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

14шт.

21

79076663

CLAMP

4шт.

22

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

4шт.
