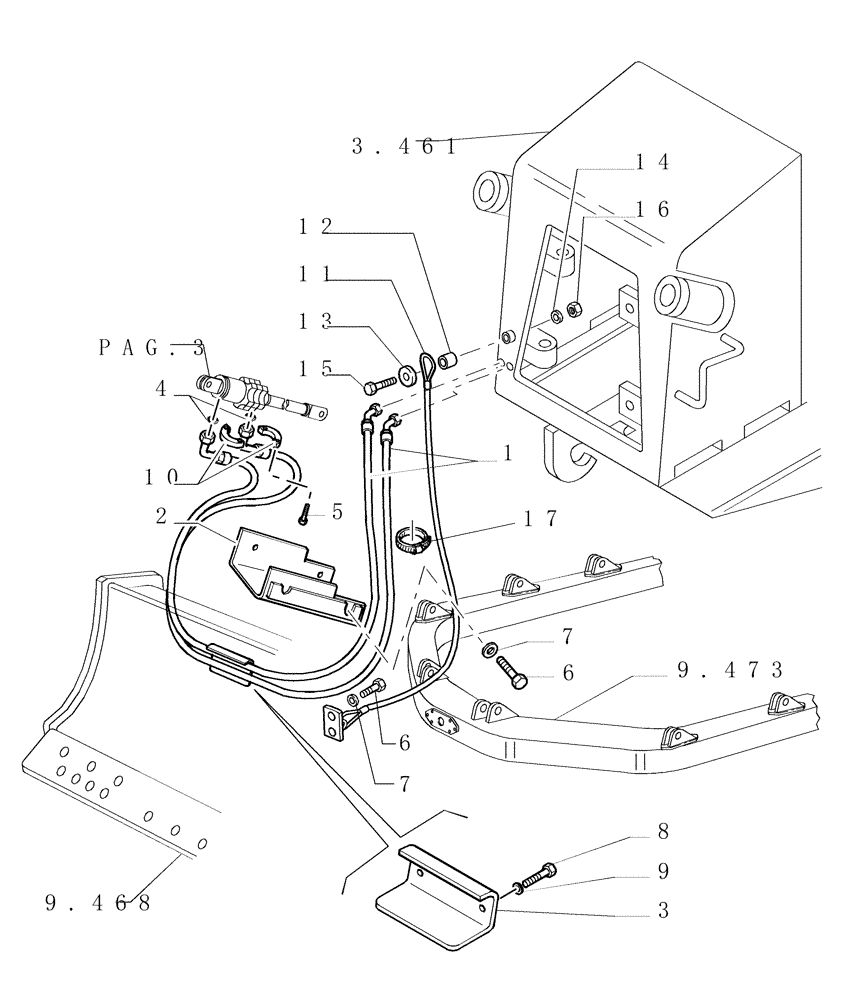

Запчасти Case 1850K LT (9.481[01]) - HYDRAULIC TILT ANGLEDOZER (HA) OPTIONAL CODE 76054830 (19) - OPTIONS

1

76071257

HYDRAULIC HOSE

1шт.

76071258

HYDRAULIC HOSE

1шт.

2

76071276

GUARD

1шт.

3

76071256

GUARD

1шт.

4

70924922

O-RING,-212, 90 Duro, .859" ID x .139" Thk

(M21.82 ID x 3.53 Thk)

2шт.

5

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

6

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

7

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

9

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

10

76007732

HALF-FLANGE

3/4"

4шт.

11

76068249

CABLE

1шт.

12

76071252

BUSHING

1шт.

13

70929699

WASHER

1шт.

14

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

15

15981131

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

1шт.

16

15504021

NUT,M16 x 1.5

1шт.

17

79083845

HOSE CLAMP,32mm - 50mm, Worm Gear

32 x 50 mm

3шт.
