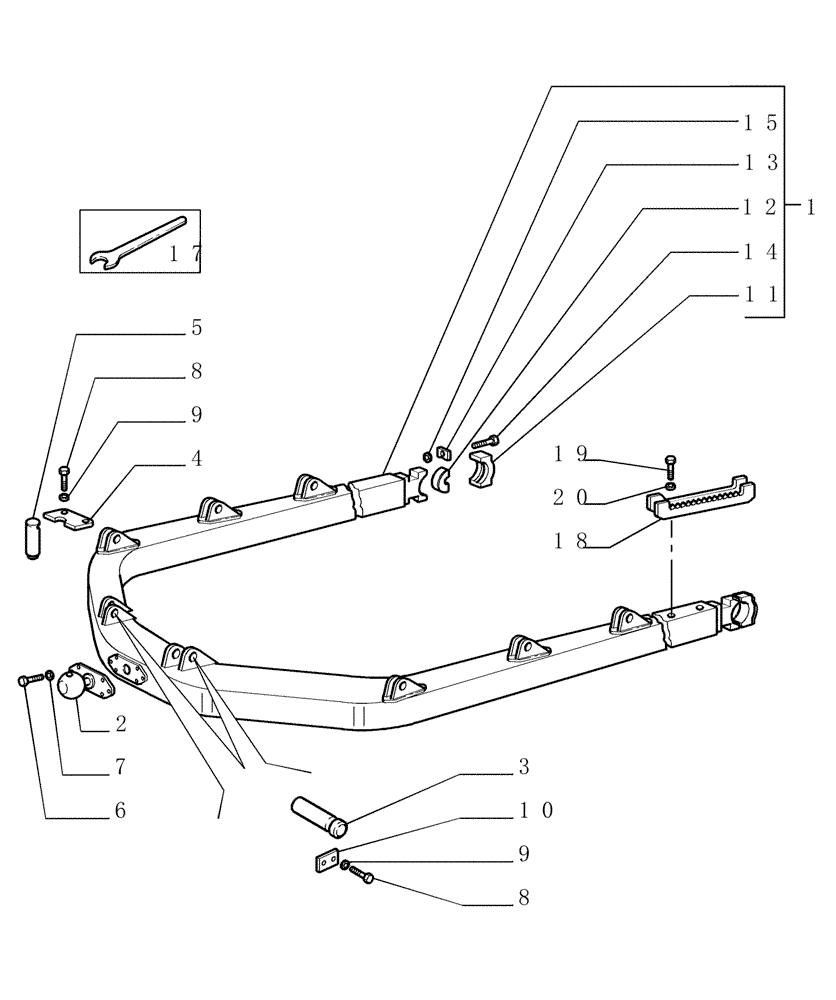

Запчасти Case 1850K LT (9.473[01]) - C-FRAME - MECHANIC TILT OPTIONAL CODE 76046829 (19) - OPTIONS

1

76046828

U-FRAME

Assy

1шт.

2

8274616

SUPPORT

In Alternative

1шт.

8274704

SUPPORT

In Alternative

1шт.

3

79114660

PIN

2шт.

4

8270126

PLATE

1шт.

5

8273214

PIN,50mm OD x 252mm L

1шт.

6

16047071

BOLT,Hex, M18 x 2.5 x 50mm, Cl 12.9, Full Thd

6шт.

7

14497031

WASHER,M18 x 34

6шт.

8

11115534

BOLT,Hex, M14 x 30, 10.9, Full Thd

6шт.

9

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

M14.4 x 28

6шт.

10

79114659

PLATE

2шт.

11

79074406

SUPPORT

RH

1шт.

11

8296138

SUPPORT

LH

1шт.

12

8280908

HALF-BUSHING

2шт.

13

8280915

LOCKING PLATE

4шт.

14

16047131

SCREW,M24 x 180mm, Cl 10.9

M24 x 2 x 180

4шт.

15

12163721

NUT,M24, Cl 10

4шт.

17

14585778

ADJUSTING WRENCH

36 mm

1шт.

18

79089245

FOOTREST

2шт.

19

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

4шт.

20

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.
