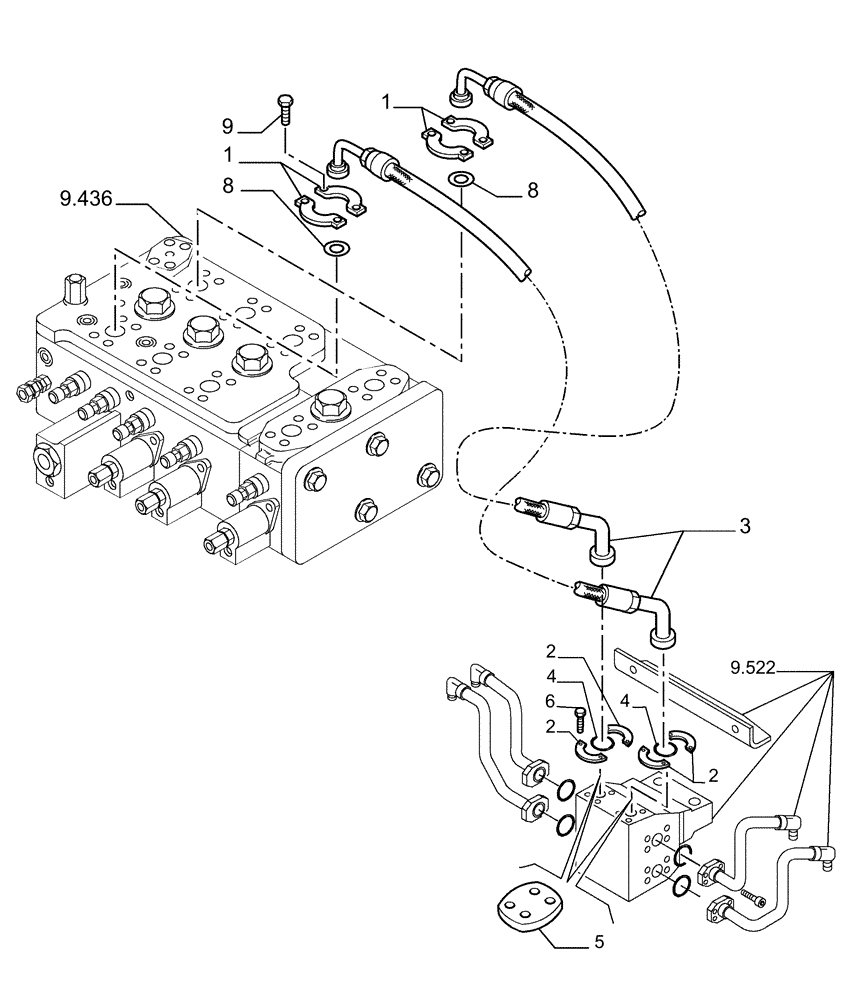

Запчасти Case 1850K LT (9.439[03]) - ADDITIONAL HYDRAULIC FUNCTION - OPTIONAL CODE 76071190 (19) - OPTIONS

1

71404313

CLAMP,Half

4шт.

2

76007732

HALF-FLANGE

3/4"

4шт.

3

76071123

HYDRAULIC HOSE

1670 mm lg.

2шт.

4

14463281

O-RING,0.984" ID x 0.139" Width

2шт.

5

76074899

PLATE

2шт.

6

14420431

HEX SOC SCREW,M10 x 1.5 x 40mm, Cl 10.9, Full Thd

8шт.

8

14463781

O-RING,0.139" Thk x 1.296" ID, -219, Cl 7, 75 Duro

In Alternative

2шт.

8

70924200

O-RING

M32.92 ID x 3.53 Thk, In Alternative

2шт.

9

14422231

HEX SOC SCREW,M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.
