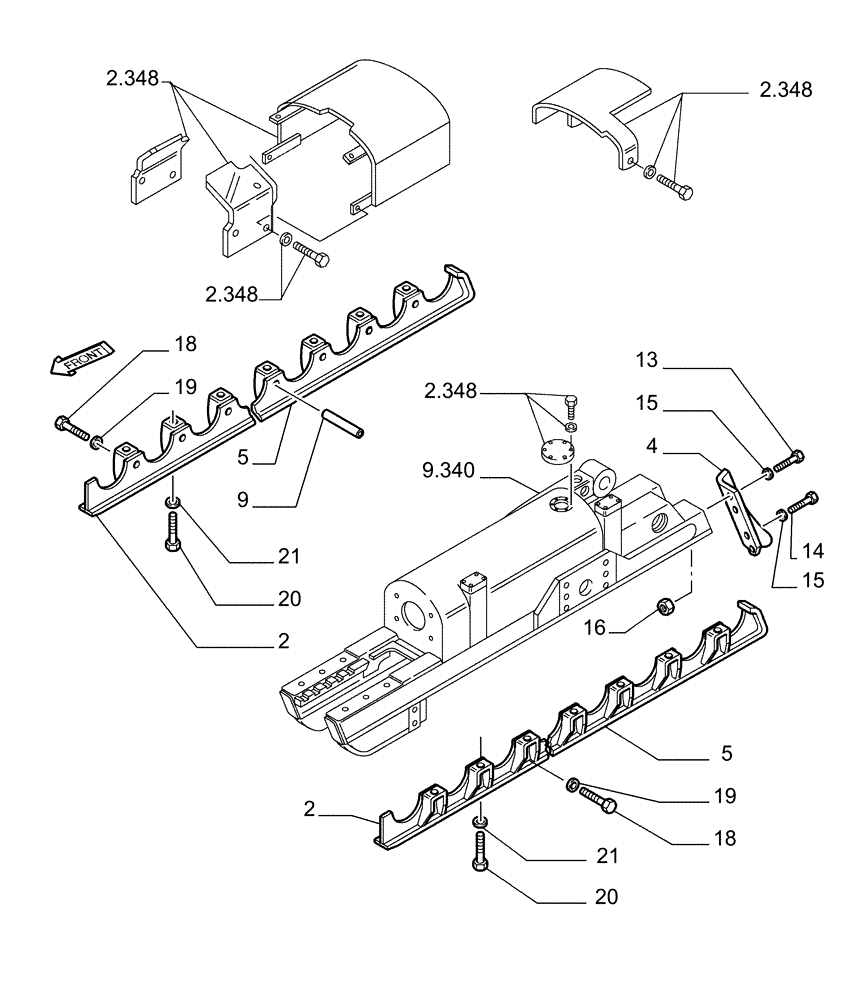

Запчасти Case 1850K LT (9.355[01]) - TRACK ROLLER GUARD - OPTIONAL CODE 76078279 (19) - OPTIONS

2

76069113

GUARD

Front LH

2шт.

2

76069114

GUARD

Front RH

2шт.

4

76072201

GUARD

Rear

4шт.

5

76069115

GUARD

Rear LH

2шт.

5

76069116

GUARD

Rear RH

2шт.

9

76004368

SPACER

14шт.

13

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

14

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

8шт.

15

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

16шт.

16

11702921

NUT,M12, Cl 10

8шт.

18

11408631

BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd

28шт.

19

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

28шт.

20

15840537

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

28шт.

21

79005240

WASHER,16.8mm ID x 36mm OD x 8mm Thk

M16 x 35.5 x 8

28шт.
