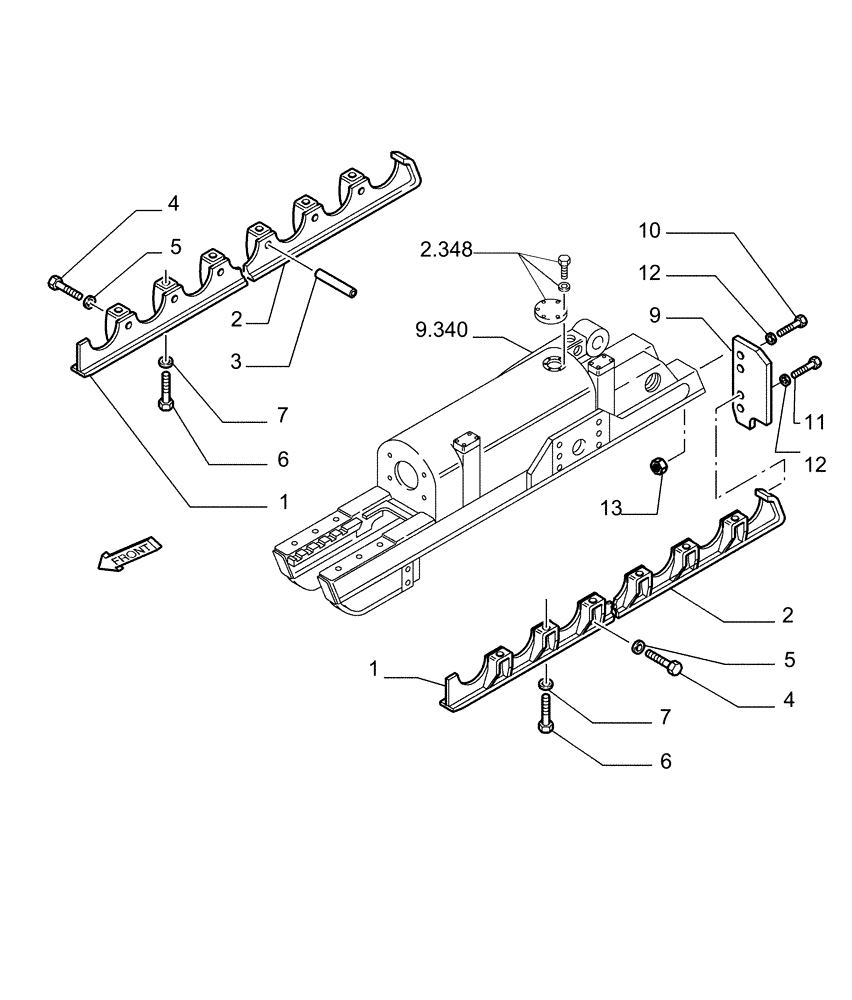

Запчасти Case 1850K LT (9.354[01]) - TRACK ROLLER GUARD - OPTIONAL CODE 76078277 (19) - OPTIONS

1

76046908

GUARD

Front LH

2шт.

1

76046909

GUARD

Front RH

2шт.

2

76046911

GUARD

Rear LH

2шт.

2

76046912

GUARD

Rear RH

2шт.

3

76004368

SPACER

12шт.

4

11408631

BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd

24шт.

5

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

24шт.

6

15840537

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

24шт.

7

79005240

WASHER,16.8mm ID x 36mm OD x 8mm Thk

M16 x 35.5 x 8

24шт.

9

76072201

GUARD

Rear

4шт.

10

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

11

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

8шт.

12

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

16шт.

13

11702921

NUT,M12, Cl 10

8шт.
