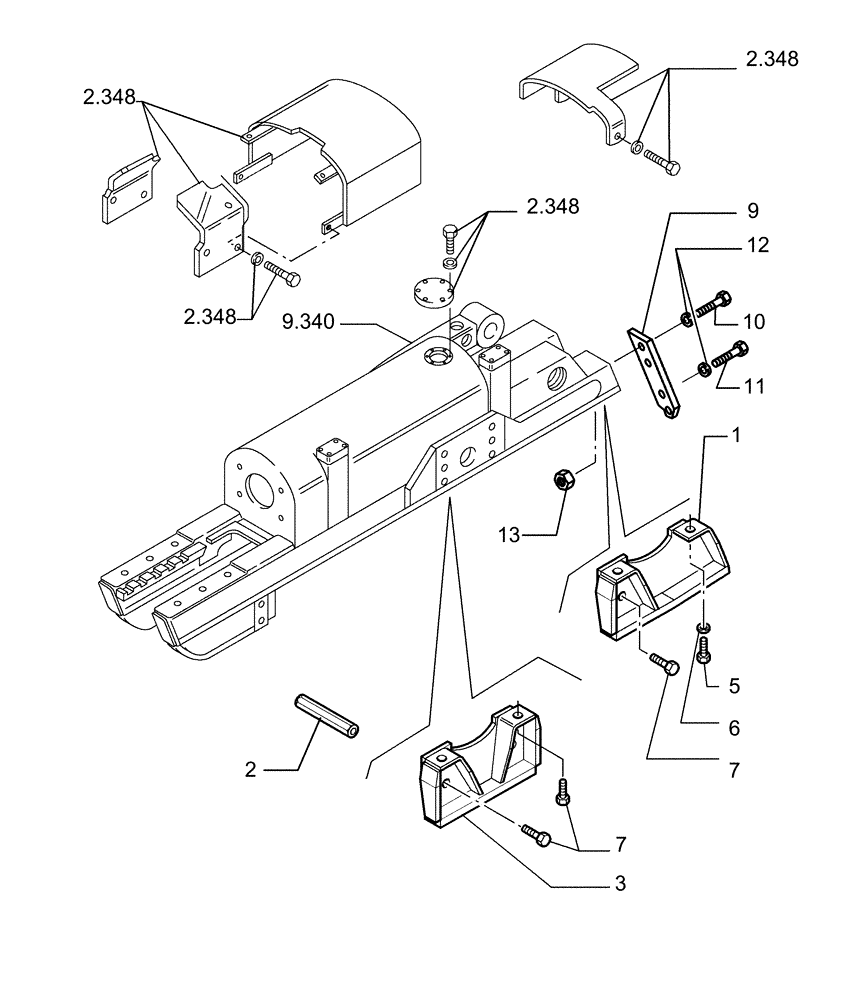

Запчасти Case 1850K LT (9.353[01]) - TRACK ROLLER GUARDS - OPTIONAL CODE 76078275 (19) - OPTIONS

1

76071492

GUARD

Lower LH Assy

2шт.

1

76071493

GUARD

Lower RH Assy

2шт.

2

76071498

SPACER

6шт.

3

76071495

GUARD

LH

2шт.

3

76071497

GUARD

RH

2шт.

5

15840537

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

12шт.

6

79005240

WASHER,16.8mm ID x 36mm OD x 8mm Thk

M16 x 35.5 x 8

12шт.

7

11383631

BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd

12шт.

8

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

12шт.

9

76072201

GUARD

Rear

4шт.

10

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

8шт.

11

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

8шт.

12

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

16шт.

13

11702921

NUT,M12, Cl 10

8шт.
