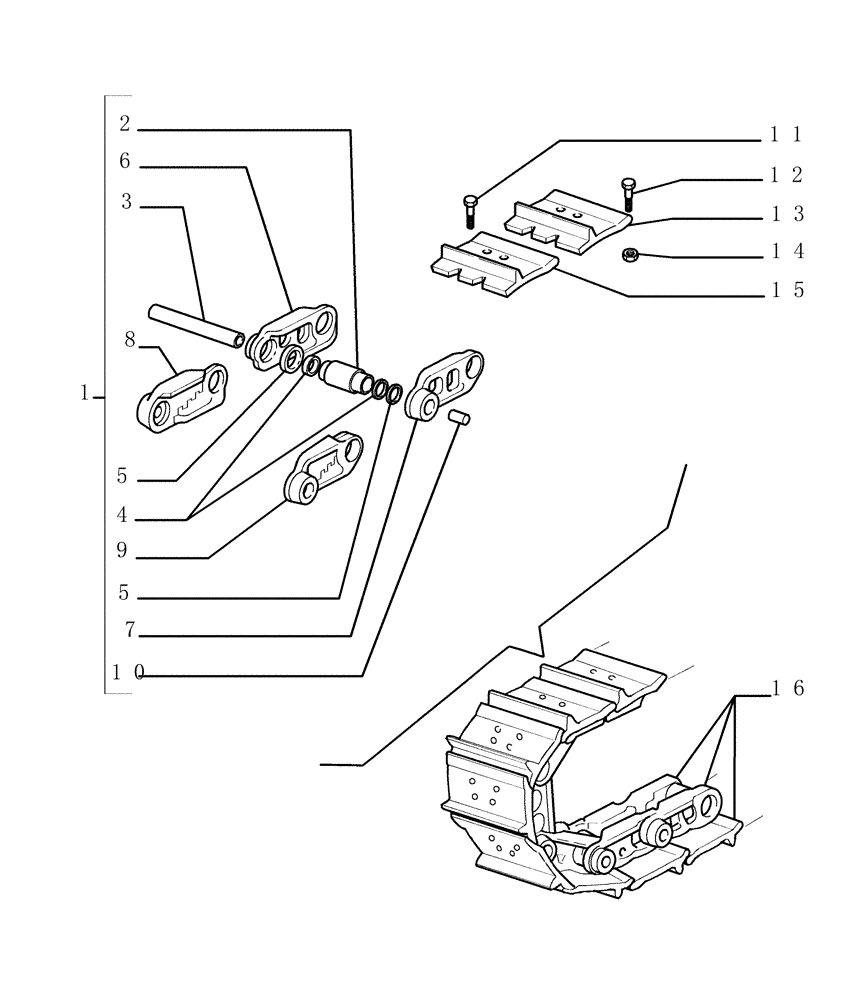

Запчасти Case 1850K LT (9.349[01]) - SALT TRACK CHAIN - SHOES (L=915MM) - OPTIONAL CODE 76078088 (19) - OPTIONS

1

76046715

TRACK CHAIN

Assy, without Shoes

2шт.

2

76040934

BUSHING

45шт.

3

76040933

PIN

45шт.

4

76040938

SPACER

90шт.

5

76040937

OIL SEAL

90шт.

6

76079348

TRACK LINK

RH

44шт.

7

76079349

TRACK LINK

LH

44шт.

8

76040931

CONNECTING LINK

RH

1шт.

9

76040932

CONNECTING LINK

LH

1шт.

10

76040943

PLUG

45шт.

11

76040927

BOLT,Hex, 3/4" - 16

4шт.

12

76040849

STEP BOLT,Hex, 3/4" - 16 x 2-3/8"

176шт.

13

76071337

TRACK SHOE

(1 Grouser) 915 mm

44шт.

14

76040850

SQUARE NUT

176шт.

15

76071338

TRACK SHOE

(1 Grouser) 915 mm Master

1шт.

16

76071335

CRAWLER TRACK ASSY

915 LGP

2шт.
