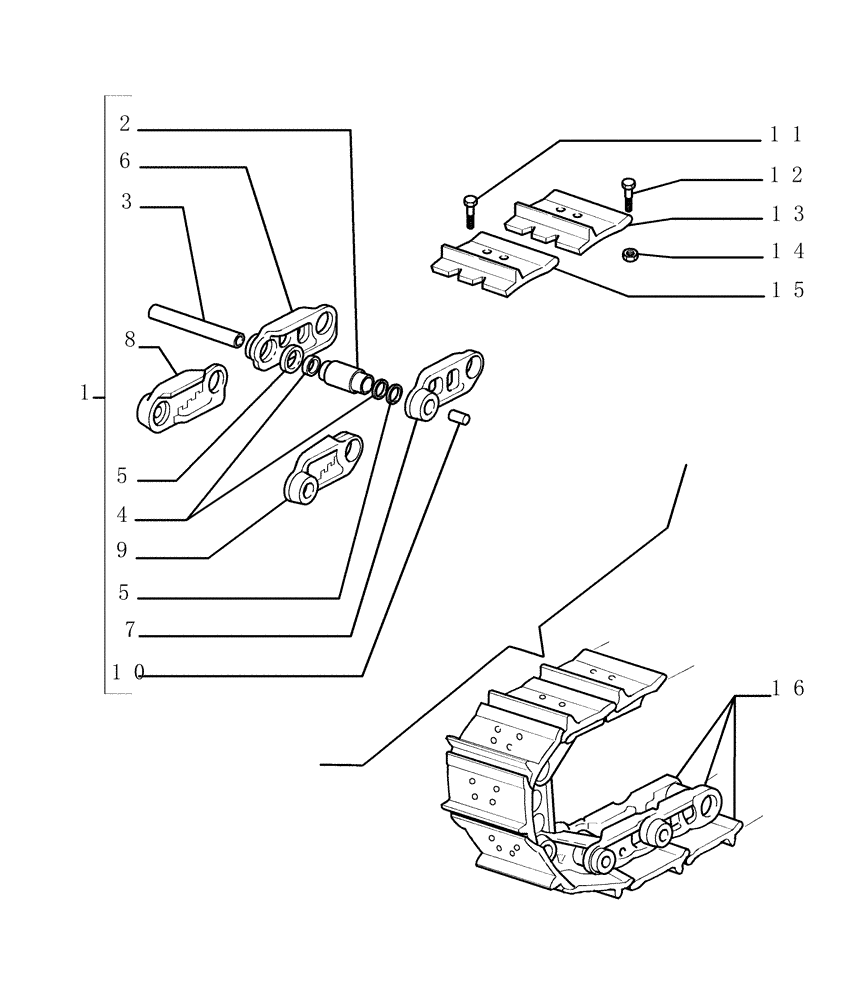

Запчасти Case 1850K LT (9.347[02]) - SALT TRACK CHAIN - SHOES (L=610MM) - OPTIONAL CODE 76078302 (19) - OPTIONS

1

76046715

TRACK CHAIN

Assy

2шт.

2

76040934

BUSHING

45шт.

3

76040933

PIN

45шт.

4

76040938

SPACER

90шт.

5

76040937

OIL SEAL

90шт.

6

76040928

TRACK LINK

RH

44шт.

7

76040929

TRACK LINK

LH

44шт.

8

76040931

CONNECTING LINK

RH in Alternative

1шт.

9

76040932

CONNECTING LINK

LH in Alternative

1шт.

10

76040943

PLUG

45шт.

11

76040927

BOLT,Hex, 3/4" - 16

4шт.

12

76040849

STEP BOLT,Hex, 3/4" - 16 x 2-3/8"

176шт.

13

76069143

TRACK SHOE

(1 Grouser)

44шт.

14

76040850

SQUARE NUT

176шт.

15

76069144

TRACK SHOE

(1 Grouser) Master

1шт.

16

76074697

CRAWLER TRACK ASSY

Assy with Shoes (610 mm)

2шт.
