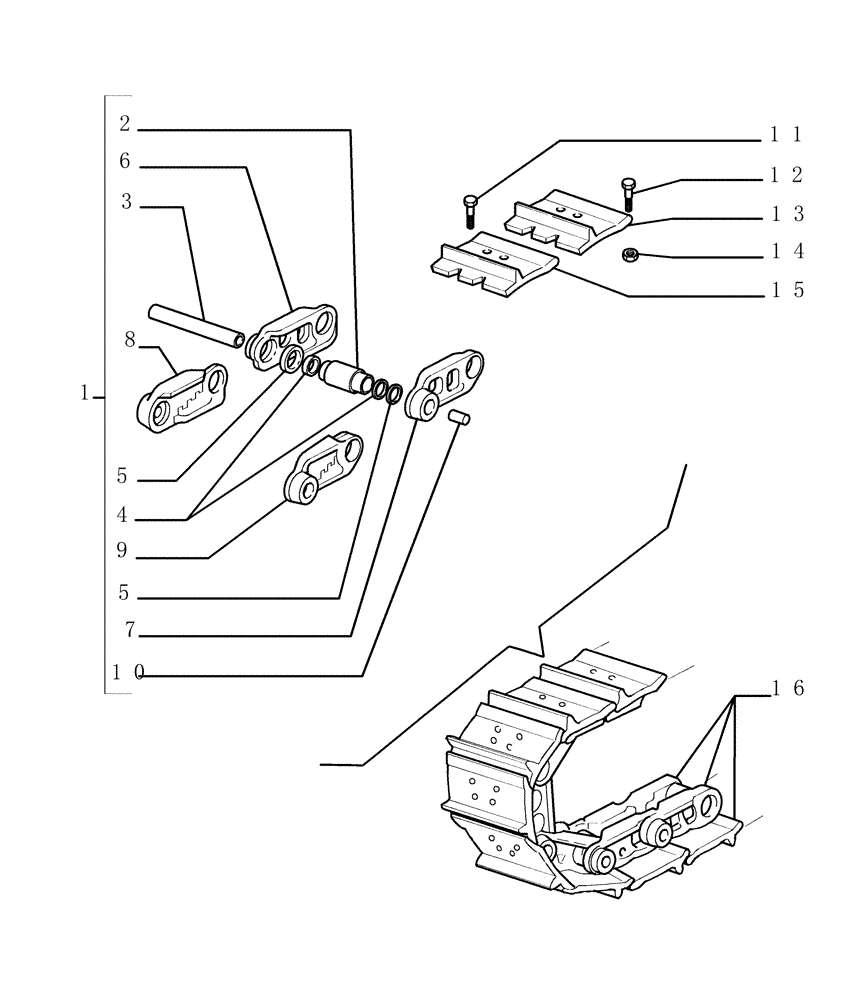

Запчасти Case 1850K LT (9.347[01]) - SALT TRACK CHAIN - SHOES (L=610MM) - OPTIONAL CODE 76078300 (19) - OPTIONS

1

76040846

TRACK CHAIN

Assy

2шт.

2

76040934

BUSHING

40шт.

3

76040933

PIN

40шт.

4

76040938

SPACER

80шт.

5

76040937

OIL SEAL

80шт.

6

76040928

TRACK LINK

RH

39шт.

7

76040929

TRACK LINK

LH

39шт.

8

76040931

CONNECTING LINK

RH in Alternative

1шт.

9

76040932

CONNECTING LINK

LH in Alternative

1шт.

10

76040943

PLUG

40шт.

11

76040927

BOLT,Hex, 3/4" - 16

4шт.

12

76040849

STEP BOLT,Hex, 3/4" - 16 x 2-3/8"

156шт.

13

76069143

TRACK SHOE

(1 Grouser) 610 mm

39шт.

14

76040850

SQUARE NUT

156шт.

15

76069144

TRACK SHOE

(1 Grouser) Master

1шт.

16

76069141

CRAWLER TRACK ASSY

With Shoes (610 mm)

2шт.
