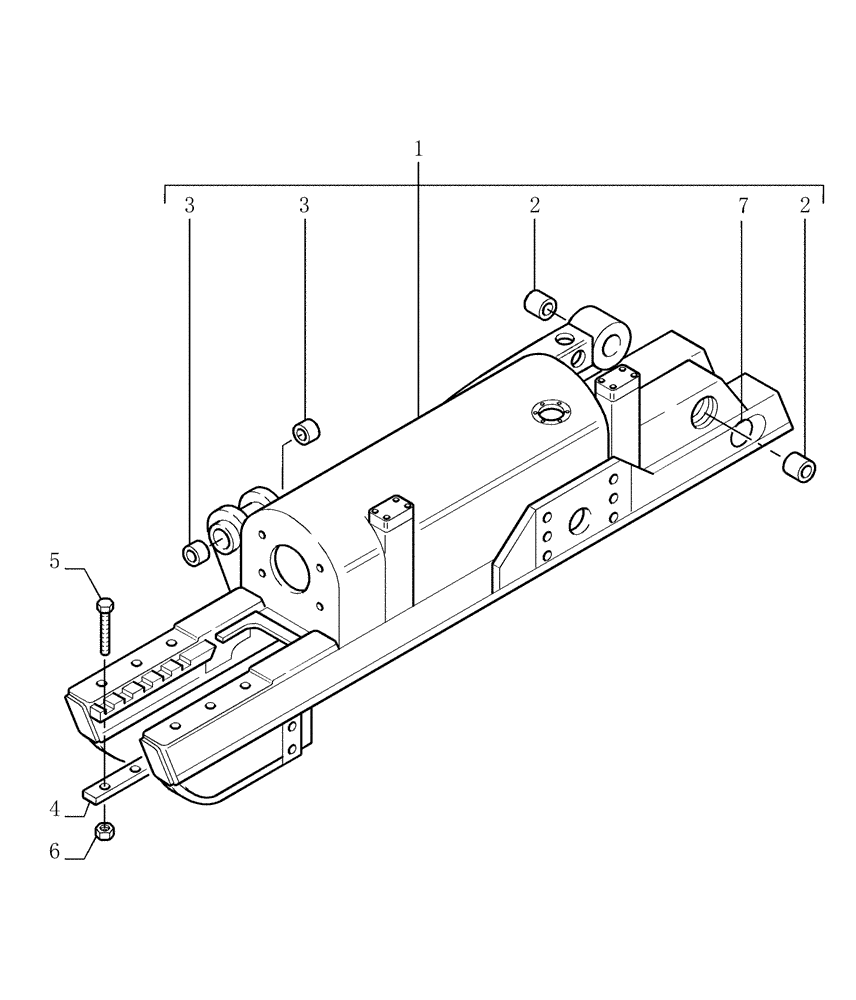

Запчасти Case 1850K LT (9.340[01]) - TRACK FRAME - 7 ROLLERS - OPTIONAL CODE 76078107 (19) - OPTIONS

1

76075264

FRAME

Track, RH Assy

1шт.

1

76075263

FRAME

Track, LH Assy

1шт.

2

76073152

BUSHING,120.46mm ID x 135.41mm OD x 90mm L

2шт.

3

8295620

BUSHING,60.2mm ID x 72mm OD x 45mm L

2шт.

4

79031909

SHIM

4шт.

5

79031906

SCREW

Track

12шт.

6

16105021

LOCK NUT,M12 x 1.25, Cl 10

12шт.

7

14473480

O-RING,120.02mm ID x 5.33mm Width

(M120.02 ID x 5.33 Thk)

1шт.
