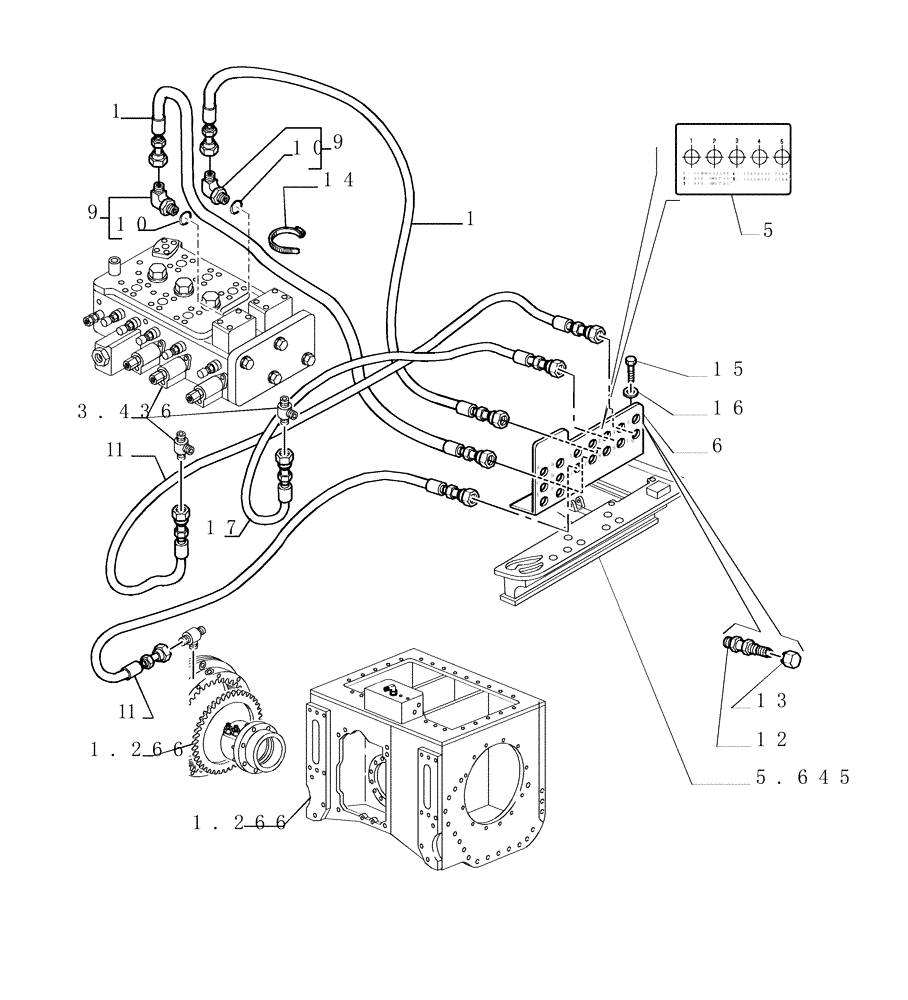

Запчасти Case 1850K LT (6.756[02]) - HYDRAULIC DIAGNOSTIC SYSTEM (13) - Electrical System / Decals

1

76071399

HYDRAULIC HOSE

2шт.

5

76074621

DECAL

1шт.

6

76066086

PLATE

1шт.

9

79067018

90 ELBOW,9/16-18 ORFS x M14 x 1.5 ORB

Assy, 90°

2шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

11

76071402

HYDRAULIC HOSE

4шт.

12

79054236

HYD CONNECTOR

5шт.

13

79054460

PLUG

M6

5шт.

14

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

1шт.

15

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

2шт.

16

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

17

76074631

HYDRAULIC HOSE

1шт.
