(6.712[03]) - ELECTRIC COMPONENTS - ENGINE SWITCHES

Запчасти Case 1850K LT (6.712[03]) - ELECTRIC COMPONENTS - ENGINE SWITCHES (13) - Electrical System / Decals

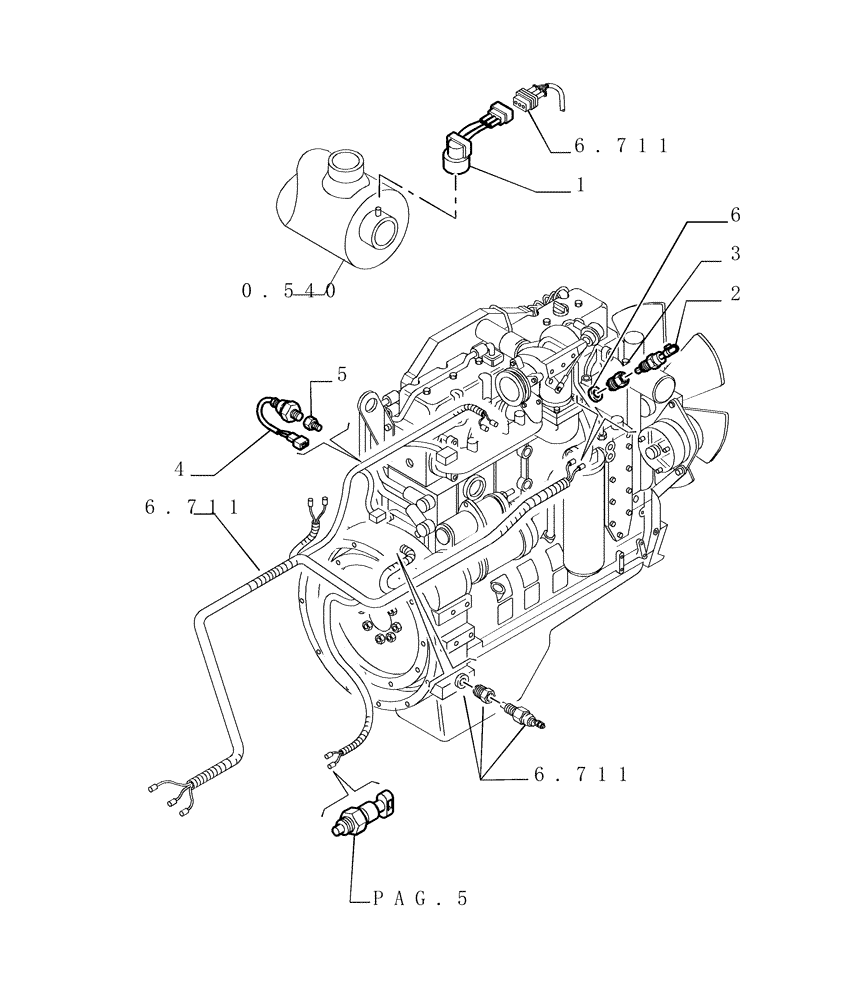

Схема запчастей Case 1850K LT - (6.712[03]) - ELECTRIC COMPONENTS - ENGINE SWITCHES (13) - Electrical System / Decals
2
6.711
6.711
0.540
6.711
5
4
3
6
pag.5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

79102142

INDICATOR

Air Filter Clogging

1шт.

2

76032581

THERMOSTATIC SWITCH

Coolant, Max. Temp.

1шт.

3

76045559

HYD CONNECTOR

Thermostat

1шт.

4

76072520

PRESSURE SWITCH

Low Pressure Engine Oil

1шт.

5

79107426

ADAPTER,M10 x 1 x M10 x 1

1шт.

6

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

Выбрано товаров: 6
