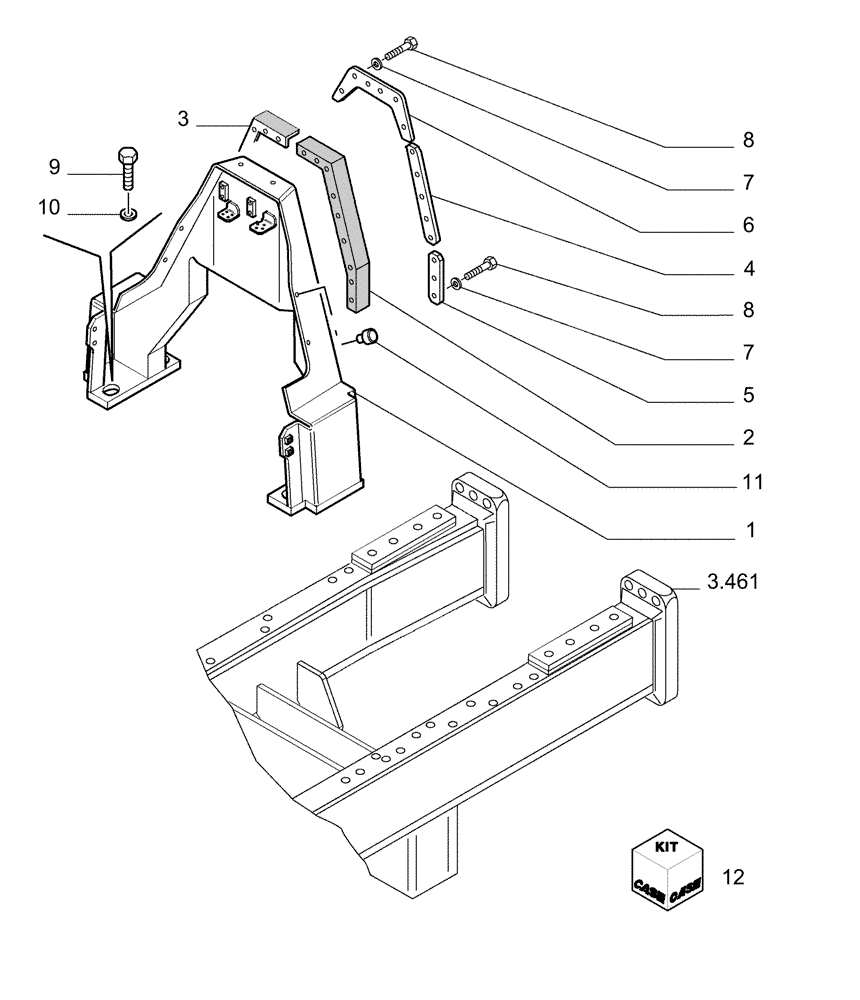

Запчасти Case 1850K LT (5.601[03]) - HOODS (10) - HOODS/CAB

1

76073447

ENGINE HOOD

Assy

1шт.

3

79109730

RUBBER BUSHING

4шт.

4

79109731

SPACER

2шт.

5

11113531

SCREW,Hex, M12 x 65mm, Cl 10.9

4шт.

6

14508287

PLUG

B-50

4шт.

8

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

9

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

10

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

4шт.

11

76079374

LATCH

Assy, See Pg. 5

1шт.

12

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

2шт.

13

76069549

BRACKET

2шт.

14

79005238

WASHER,14.8mm ID x 32mm OD x 7mm Thk

M14 x 32

2шт.

15

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

16

12577521

NUT,M12 x 1.75

1шт.
