Запчасти Case 1850K LT (3.443[01]) - LIFT CYLINDERS - FRONT IMPLEMENT (07) - HYDRAULIC SYSTEM/FRAME

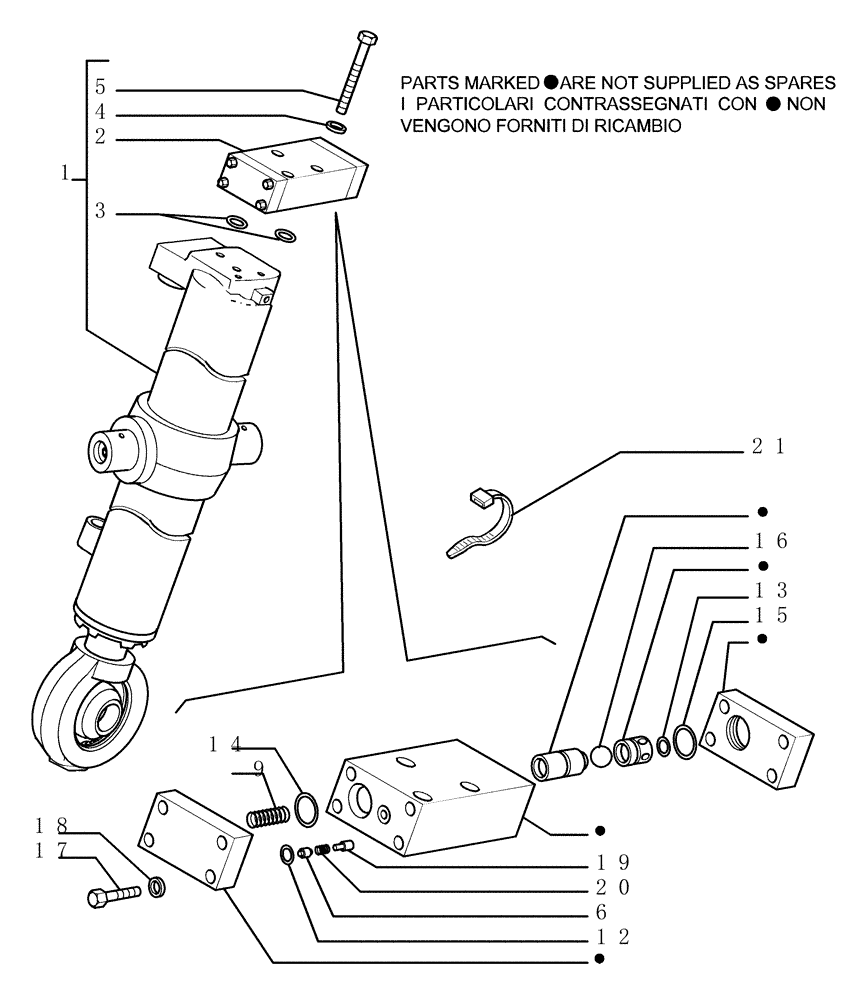

Схема запчастей Case 1850K LT - (3.443[01]) - LIFT CYLINDERS - FRONT IMPLEMENT (07) - HYDRAULIC SYSTEM/FRAME
18
13
2
12
15
19
5
20
3
6
21
1
4
17
16
9
14

Артикул

Название

Примечание

Количество

1

71470769

LIFT CYLINDER

RH - Assy, See Pg. 2

1шт.

1

71470776

LIFT CYLINDER,Double Acting, 58mm Rod, 1250mm Stroke

LH - Assy, See Pg. 2

1шт.

2

71456798

HYDRAULIC VALVE

Assy, RH

1шт.

2

71456816

HYDRAULIC VALVE

Assy, LH

1шт.

3

70924922

O-RING,-212, 90 Duro, .859" ID x .139" Thk

(M21.82 ID x 3.53 Thk)

2шт.

4

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

5

11108031

BOLT,Hex, M10 x 90mm, Cl 10.9

3шт.

6

79108425

BUSHING

1шт.

9

79075477

SPRING

1шт.

12

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

13

14463180

O-RING,0.921" ID x 0.139" Width

1шт.

14

70924270

O-RING,0.139" Thk x 1.359" ID, -220, Cl 6, 90 Duro

(M34.52 ID x 3.53 Thk)

1шт.

15

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

1шт.

16

20063050

BALL

21.432 mm

1шт.

17

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

18

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

19

79108426

HYDRAULIC VALVE

1шт.

20

589923

SPRING

1шт.

21

79055959

CABLE TIE

CABLE STRAP

2шт.

Выбрано товаров: 19
