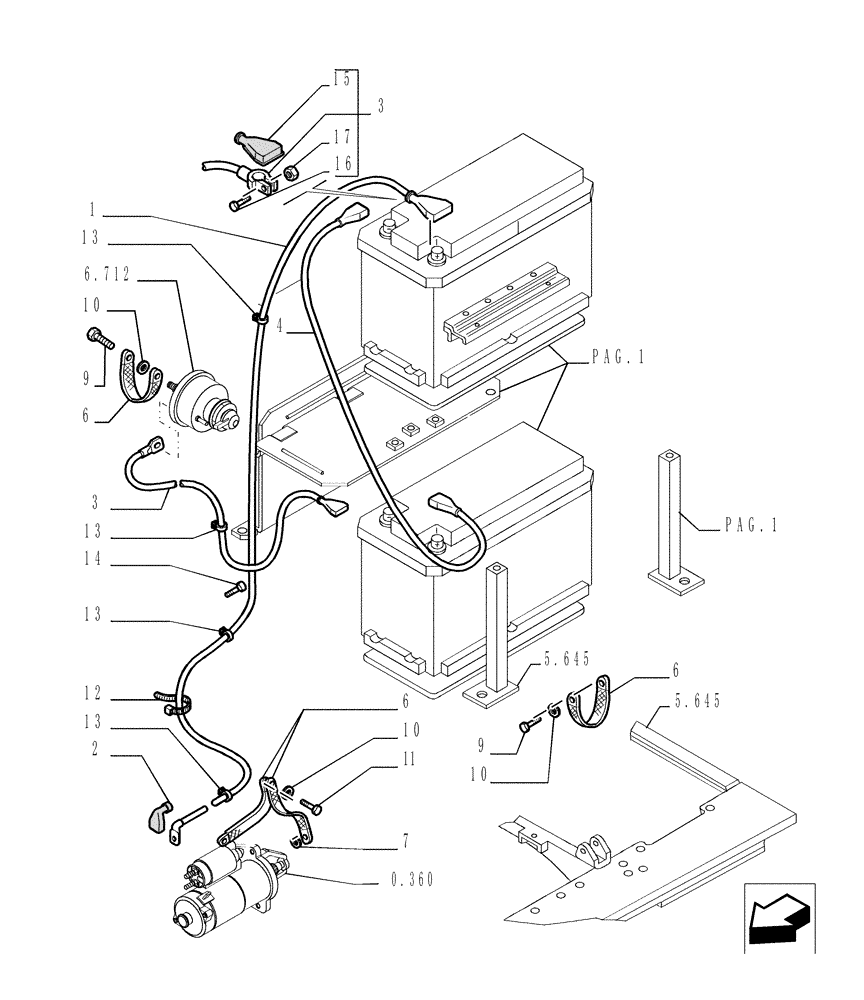

Запчасти Case 1850K (6.701[02]) - BATTERY - SEAT AND SUPPORT Electrical System / Decals

1

76053570

POS BATTERY CABLE

1шт.

2

5128817

PROTECTION CAP

1шт.

3

76042102

WIRE HARNESS

Assy

1шт.

4

4954336

NEG BATTERY CABLE

1шт.

6

87735405

ELECTRIC CABLE

1шт.

6a

87727011

CABLE

1шт.

7

14496731

WASHER,M12 x 24 x 2.5 Thk

1шт.

9

10979231

BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd

5шт.

10

12626231

WASHER,10.2mm ID x 25mm OD x 3mm Thk

8шт.

11

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

1шт.

12

4982514

CABLE TIE,188mm L

CABLE STRAP 370 mm lg.

5шт.

13

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12 mm dia.

4шт.

14

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

15

4950259

PROTECTION CAP

1шт.

16

11945008

SCREW,Sqr Head, M6 x 1 x 30mm

Sq. Hd, M6 x 1 x 30

1шт.

17

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.
