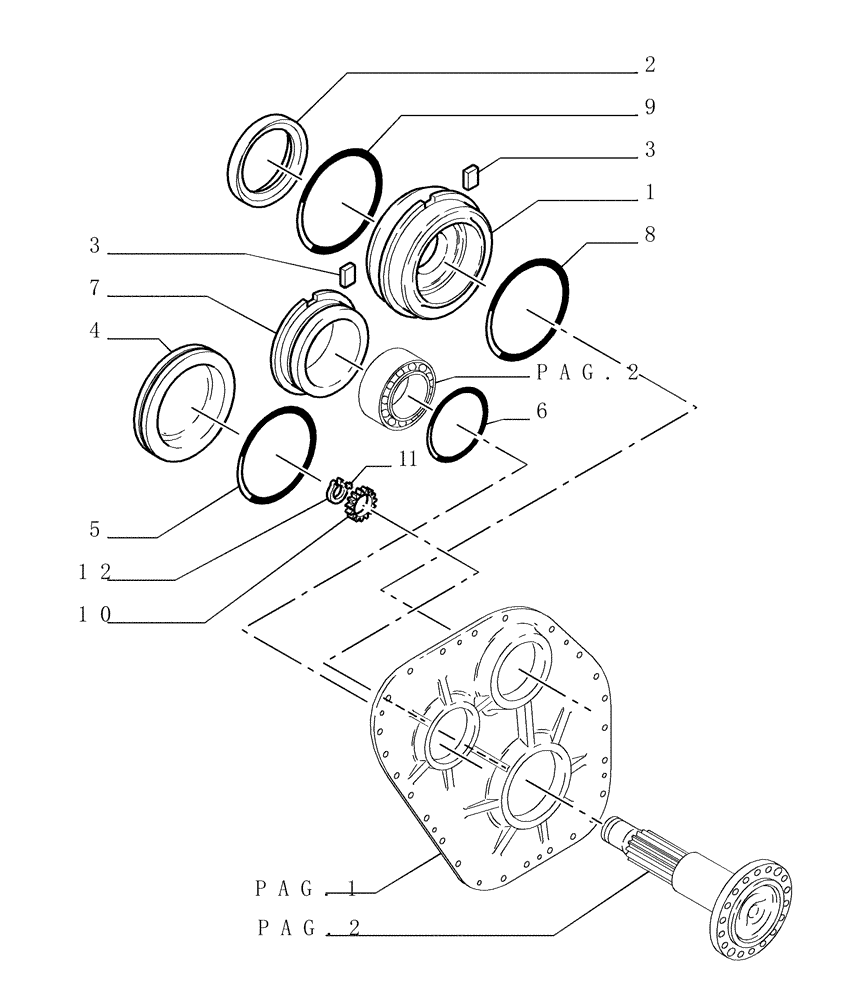

Запчасти Case 1850K (1.277[03]) - FINAL DRIVE - COMPONENTS Hydrostatic Transmission

1

76040603

BEARING HOUSING

2шт.

2

76040608

SEAL,70mm ID x 90mm OD x 10mm Thk

4шт.

3

76040660

LOCKING PLATE

4шт.

4

76040671

COVER

2шт.

5

14467981

O-RING,0.139" Thk x 6.734" ID, -261, Cl 7, 75 Duro

(M171 ID x 3.53 Thk)

2шт.

6

14467381

GASKET

M142.50 ID x 3.53 Thk

2шт.

7

76040640

BEARING HOUSING

2шт.

8

14468181

O-RING,0.139" Thk x 7.234" ID, -263, Cl 7, 75 Duro

(M183.7 ID x 3.53 Thk)

2шт.

9

14468281

O-RING,190.1mm ID x 7.762" OD x 3.53mm

(M190.1 ID x 3.53 Thk)

2шт.

10

76066308

RING NUT

2шт.

11

76009260

PLATE

4шт.

12

11071376

SNAP RING,M90, Ext

(84.5 Free ID x 3 Thk)

2шт.
