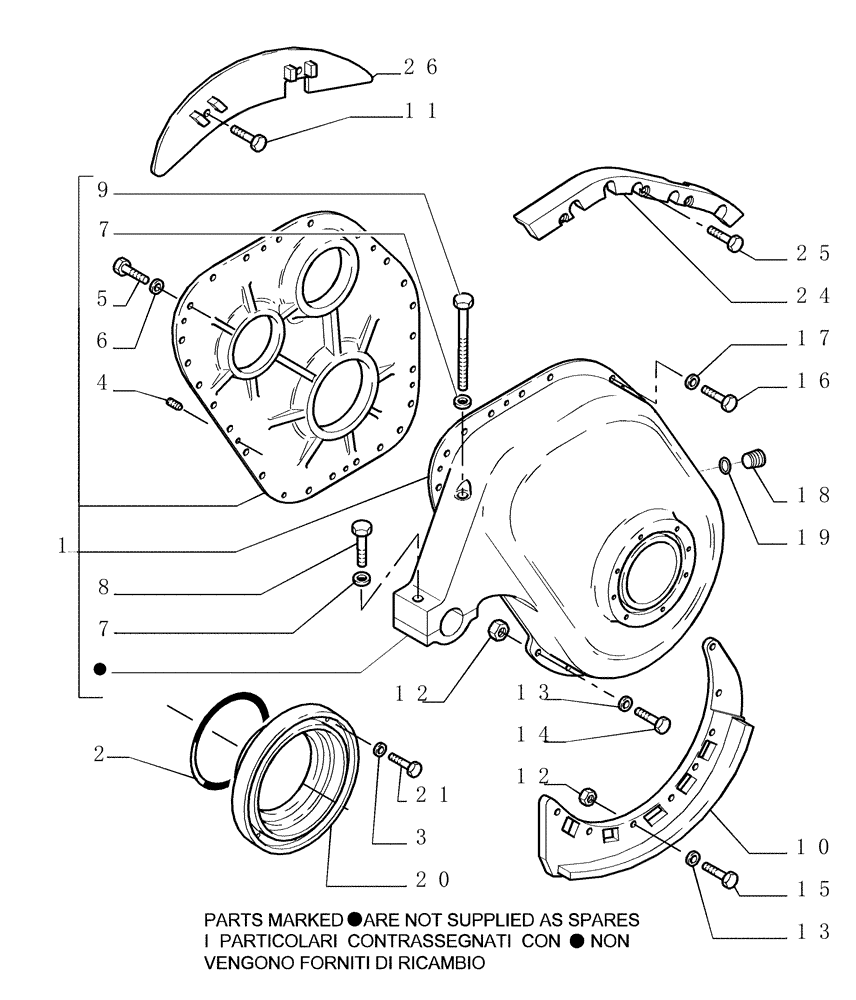

Запчасти Case 1850K (1.277[01]) - FINAL DRIVE - CASE Hydrostatic Transmission

1

76040710

FINAL DRIVE HOUSING

LH Assy

1шт.

1

76040720

FINAL DRIVE HOUSING

RH Assy

1шт.

2

14468681

O-RING,0.139" Thk x 8.484" ID, -268, Cl 7, 75 Duro

(M215.5 ID x 3.53 Thk)

2шт.

3

14496731

WASHER,M12 x 24 x 2.5 Thk

16шт.

4

589197

DOWEL

3шт.

5

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

6

14496731

WASHER,M12 x 24 x 2.5 Thk

6шт.

7

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

2шт.

8

15861731

BOLT,Hex, M24 x 2 x 130mm, Cl 10.9

1шт.

9

15999331

BOLT,Hex, M24 x 2 x 260mm, Cl 10.9

1шт.

10

76046763

GUARD

LH

1шт.

10

76046764

GUARD

RH

1шт.

11

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

16шт.

13

12644931

WASHER,14.4mm ID x 32mm OD x 4mm Thk

16шт.

14

11422030

BOLT,Hex, M14 x 1.5 x 55, 10.9

12шт.

15

11394334

BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd

4шт.

16

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

30шт.

17

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

38шт.

18

10119040

PLUG,M27 x 2 x 20, Brass

4шт.

19

14438185

O-RING,24mm ID x 3mm

4шт.

20

76040668

HOLDER

O-Ring

2шт.

21

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

16шт.

24

76046782

GUARD

RH

1шт.

24

76046781

GUARD

LH

1шт.

25

11115331

SCREW,Hex, M14 x 25mm, Cl 10.9, Full Thd

6шт.

26

76046783

GUARD

LH

1шт.

26

76046784

GUARD

RH

1шт.
