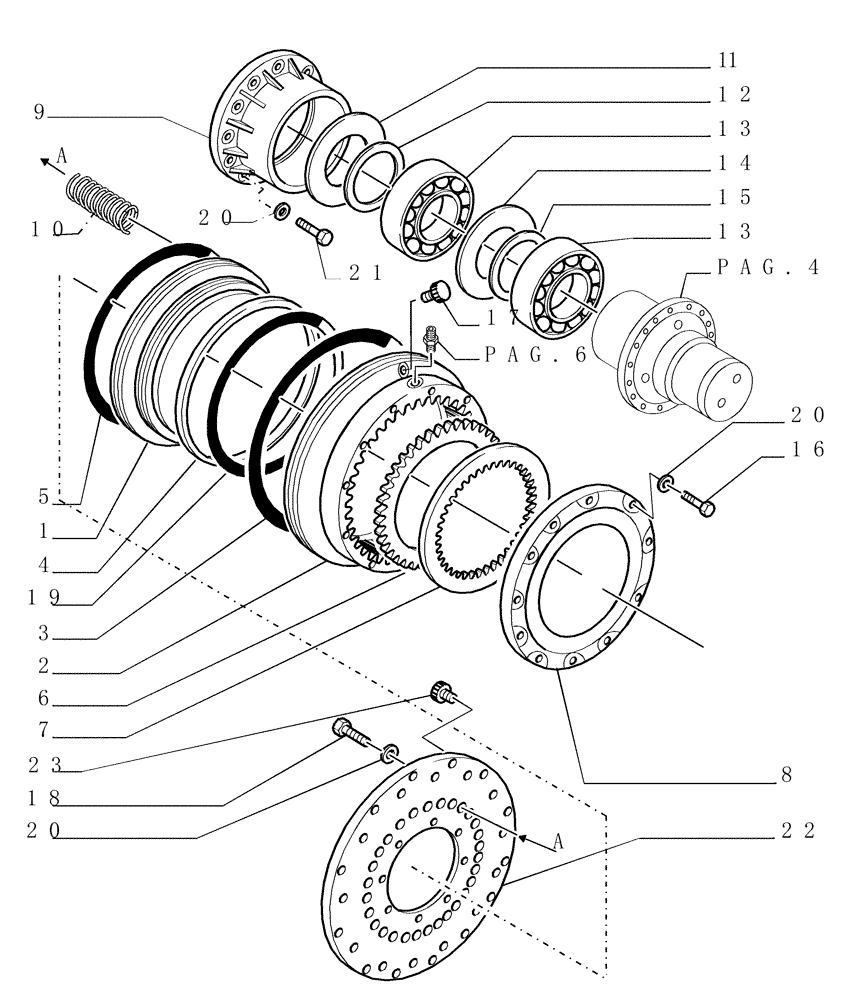

Запчасти Case 1850K (1.266[05]) - REAR TRANSMISSION - BRAKES Hydrostatic Transmission

1

76040574

PISTON

2шт.

2

76040579

DRUM

2шт.

3

14484981

O-RING,456.1mm ID x 5.33mm Width

(M456.1 ID x 5.33 Thk)

2шт.

4

14484581

O-RING,355mm ID x 5.33mm Width

(M355 ID x 5.33 Thk)

2шт.

5

14484781

O-RING,405.3mm ID x 5.33mm Width

(M405.3 ID x 5.33 Thk)

2шт.

6

79066329

CLUTCH PLATE

8шт.

7

589025

CLUTCH DRIVING PLATE

6шт.

8

76087763

DISC

2шт.

9

76040571

BEARING HOUSING

2шт.

10

76040575

SPRING

40шт.

11

11077976

SNAP RING,M160, Int

2шт.

12

11082176

SNAP RING,M105, Ext

M105

2шт.

13

28042610

BALL BEARING

105 x 160 x 26 mm

4шт.

14

76040568

THRUST WASHER

2шт.

15

76040569

THRUST WASHER

2шт.

16

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

24шт.

17

10118740

PLUG,M14 x 1.5 x 15, Brass

2шт.

18

11112831

SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd

24шт.

19

14484881

O-RING,430.7mm ID x 5.33mm Width

(M430.7 ID x 5.33 Thk)

2шт.

20

14496731

WASHER,M12 x 24 x 2.5 Thk

64шт.

21

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

16шт.

22

76040588

CLUTCH, PRESSURE PLA

LH

1шт.

22

76040589

CLUTCH, PRESSURE PLA

RH

1шт.

23

10119740

PLUG

2шт.
