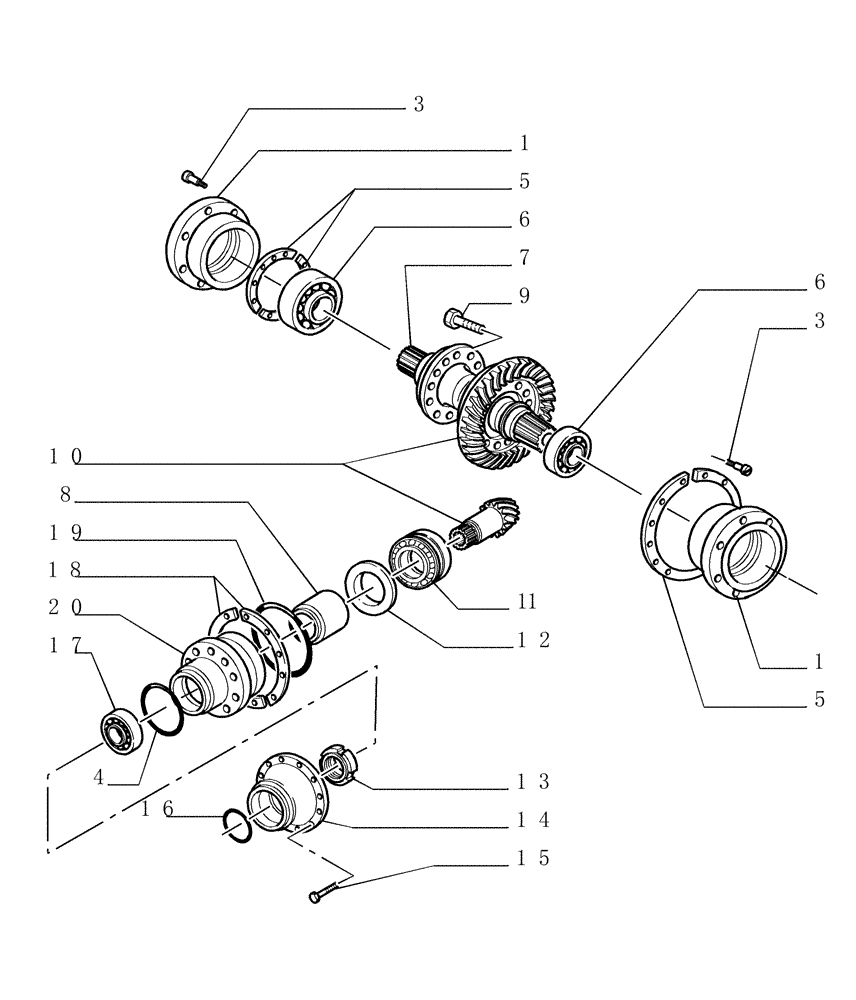

Запчасти Case 1850K (1.266[03]) - REAR TRANSMISSION - BEVEL GEAR SET Hydrostatic Transmission

1

76040567

BEARING HOUSING,148 mm ID x 225 mm OD x 50 mm

RH

1шт.

3

14278830

SCREW,Self Lkg, M12 x 1.75 x 30mm

M12 x 1.75 x 30, Self-Locking

16шт.

4

14468781

O-RING,221.8mm ID x 9.012" OD x 3.53mm

1шт.

5

4958080

HALF-RING

0.15 mm

1шт.

5

4958081

HALF-RING

0.20 mm

1шт.

5

4958082

HALF-RING

0.50 mm

1шт.

5

4958083

HALF-RING

1.00 mm

1шт.

6

76040549

TAPERED BEARING,80mm ID x 140mm OD x 46mm W

2шт.

7

76040548

SHAFT

1шт.

8

76040790

SPACER

1шт.

9

14258034

SCREW,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

M16 x 1.5 x 45

16шт.

10

76040611

GEAR SET

13/40

1шт.

11

76040789

ROLLER BEARING,100 mm ID x 180 mm OD x 49 mm

1шт.

12

76040767

SHIM,100.15mm ID x 115mm OD x 0.5mm Thk

1шт.

12

76040776

SHIM,100.15mm ID x 115mm OD x 1.2mm Thk

1шт.

12

76040777

SHIM,1.225mm Thk

1шт.

12

76040778

SHIM,1.250mm Thk

1шт.

12

76040779

SHIM,1.275mm Thk

1шт.

12

76040780

SHIM,100.15mm ID x 115mm OD x 1.3mm Thk

1шт.

12

76040781

SHIM,1.325mm Thk

1шт.

12

76040782

SHIM,100.15mm ID x 115mm OD x 1.35mm Thk

1шт.

12

76040783

SHIM,1.375mm Thk

1шт.

12

76040784

SHIM,100.15mm ID x 115mm OD x 1.4mm Thk

1шт.

13

76040585

NUT

Pinion

1шт.

14

76040587

COVER

Pinion

1шт.

15

14258134

LOCK BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

10шт.

16

14465481

O-RING,3.234" ID x 3.512" OD x 0.139"

(M82.14 ID x 3.53 Thk)

1шт.

17

76040788

TAPERED BEARING,100mm ID x 150mm OD x 39mm W

Pinion

1шт.

18

79004556

SHIM,232mm ID x 290mm OD x 0.2mm Thk

1шт.

18

79004557

SHIM,232mm ID x 290mm OD x 0.5mm Thk

0.50 mm

1шт.

18

79004558

SHIM,232mm ID x 290mm OD x 1mm Thk

1.00 mm

1шт.

19

14468581

SEAL,0.139" Thk x 8.234" ID, -267, Cl 7, 75 Duro

3.53 x 209.1 mm

1шт.

20

76040584

HOUSING

1шт.
