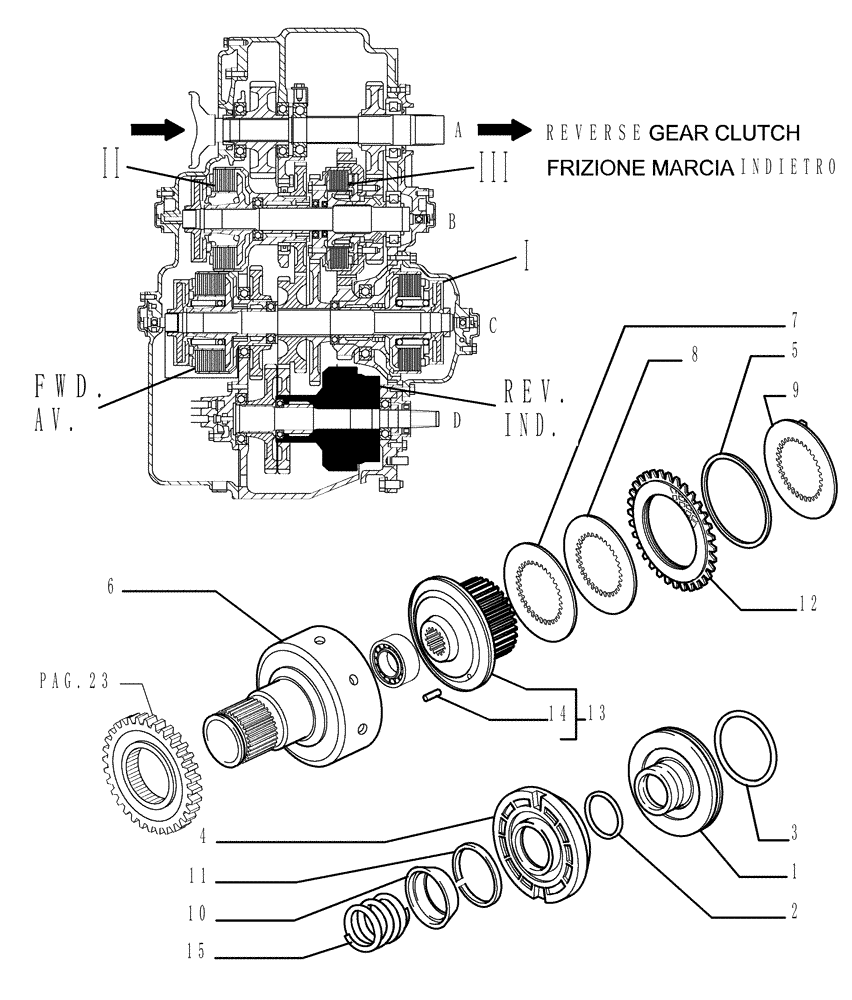

Запчасти Case 1850K (1.211[22]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

4983905

PISTON

1шт.

2

14459781

O-RING,55.24mm ID x 60.479mm OD x 2.62mm Thk

1шт.

3

14467781

O-RING,0.139" Thk x 6.234" ID, -259, Cl 7, 75 Duro

(M158.3 ID x 3.53 Thk)

1шт.

4

79036885

PISTON

1шт.

5

79038905

SPRING CLIP

8шт.

6

79040800

DRUM

Outer

1шт.

7

79040802

CLUTCH DISC

CLUTCH DISK

7шт.

8

79040803

DISC,127.96mm ID x 195mm OD x 3mm Thk

1шт.

9

79041947

DISC,121.48mm ID x 195mm OD x 2.5mm Thk

1шт.

10

79041950

CUP

1шт.

11

79041951

SNAP RING

1шт.

12

79079550

DISC,145mm ID x 208mm OD x 3.5mm Thk

Friction

8шт.

13

79071781

DRUM

Assy

1шт.

14

79071789

NEEDLE ROLLER

3шт.

15

79077584

SPRING

1шт.
