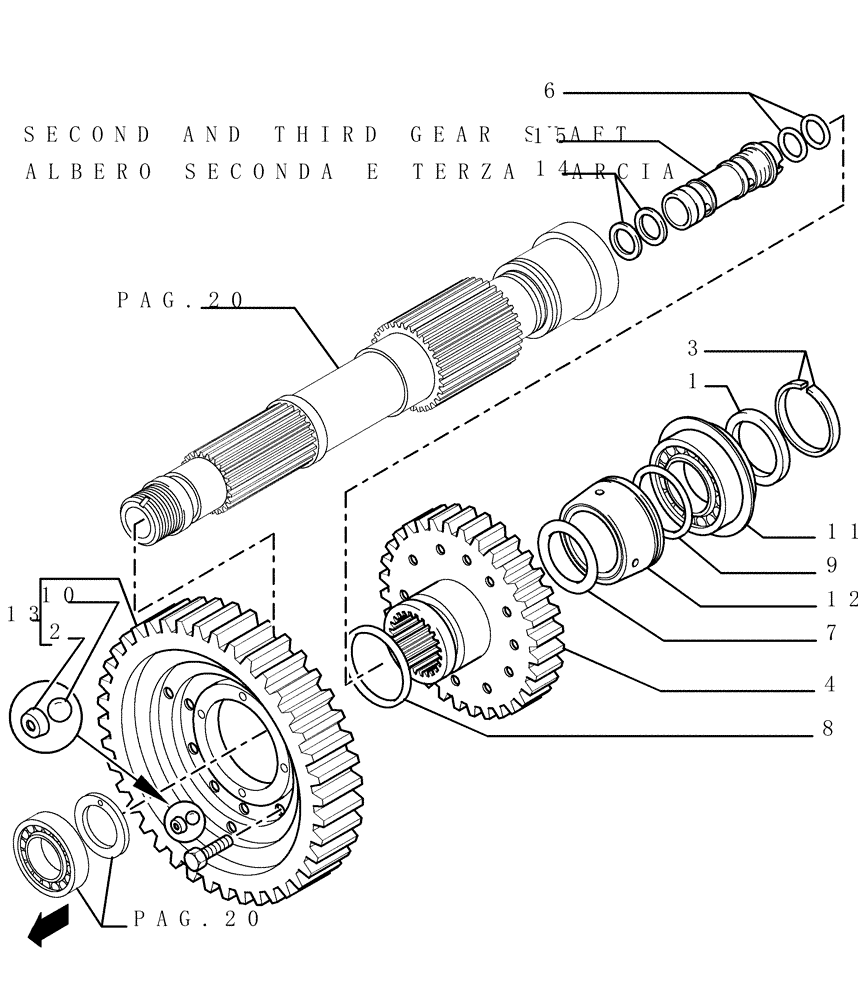

Запчасти Case 1850K (1.211[21]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

586675

THRUST RING,55mm ID x 70mm OD x 5mm Thk

1шт.

2

4962201

CUP

1шт.

3

4977442

HALF-RING

2шт.

4

4982111

GEAR

46T

1шт.

5

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

10шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

(M15.54 ID x 2.62 Thk)

2шт.

7

14464981

O-RING,66.27mm ID x 2.887" OD x 3.53mm

(M66.27 ID x 3.53 Thk)

1шт.

8

14465181

O-RING,2.859" ID x 3.127" OD x 0.139"

(M72.62 ID x 3.53 Thk)

1шт.

9

14465881

O-RING,94.84mm ID x 4.012" OD x 3.53mm

(M94.84 ID x 3.53 Thk)

1шт.

10

20063450

BALL

6.350

1шт.

11

20439480

BEARING, ROLLER, CYL,55mm ID x 120mm OD x 29mm W

55 x 120 x 29 mm

1шт.

12

76008487

RING

1шт.

13

79032456

GEAR

Assy, 73T

1шт.

14

79086720

SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk

In Alternative

2шт.

14

79051013

SEAL,20.168mm OD x 1.143mm Width

In Alternative

2шт.

15

79060757

PIN,19.8mm OD x 98mm L

1шт.
