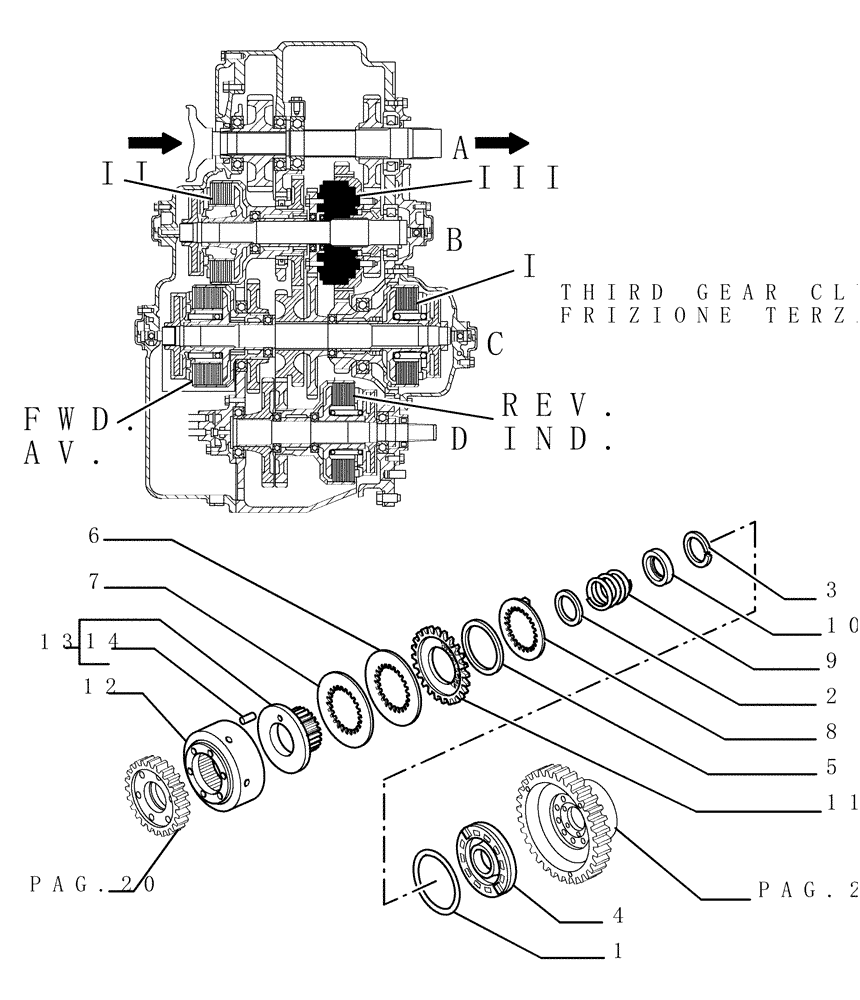

Запчасти Case 1850K (1.211[19]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

14468181

O-RING,0.139" Thk x 7.234" ID, -263, Cl 7, 75 Duro

(M183.7 ID x 3.53 Thk)

1шт.

2

79032653

CUP,87mm ID x 105mm OD x 1mm Thk

1шт.

3

79032672

SPRING

1шт.

4

79036886

PISTON

1шт.

5

79038905

SPRING CLIP

6шт.

6

79040802

CLUTCH DISC

CLUTCH DISK

5шт.

7

79040803

DISC,127.96mm ID x 195mm OD x 3mm Thk

1шт.

8

79041947

DISC,121.48mm ID x 195mm OD x 2.5mm Thk

1шт.

9

79041951

SNAP RING

1шт.

10

79041952

CUP,80.3mm ID x 109mm OD x 1mm Thk

1шт.

11

79079550

DISC,145mm ID x 208mm OD x 3.5mm Thk

Friction

6шт.

12

79070615

DRUM

1шт.

13

79071783

DRUM

Assy

1шт.

14

79072959

NEEDLE ROLLER,Needle, 3.5mm OD x 11.8mm L

3шт.
