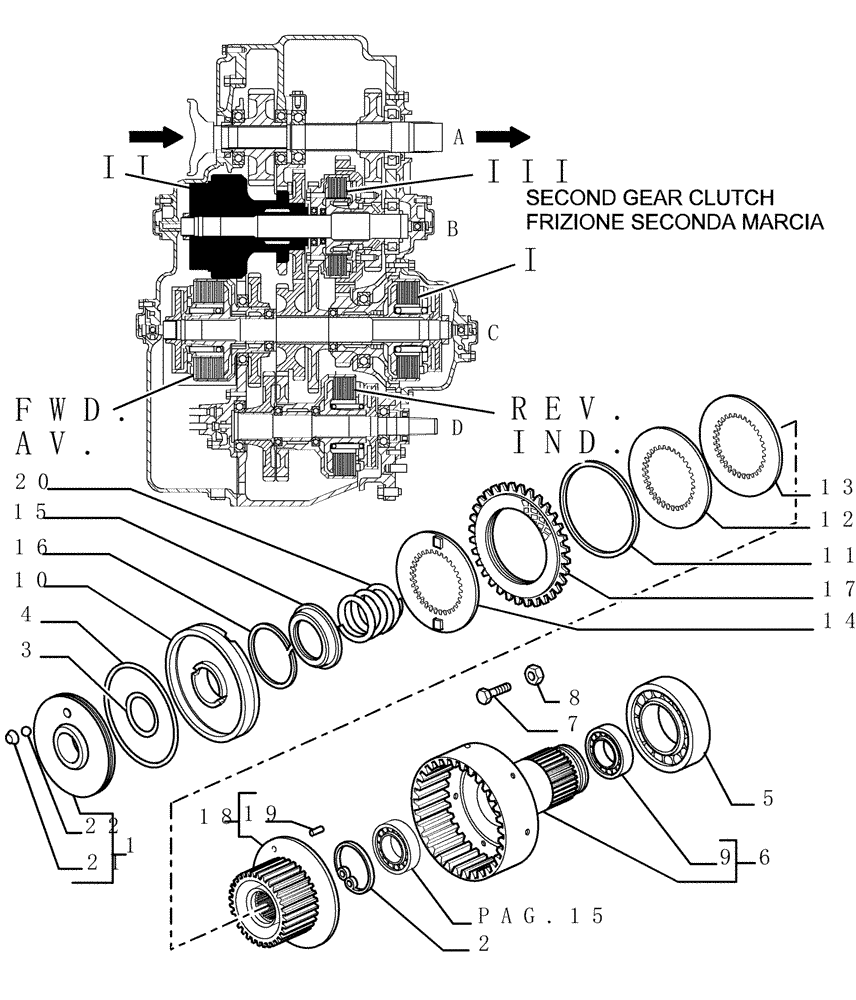

Запчасти Case 1850K (1.211[18]) - TRANSMISSION - COMPONENTS Hydrostatic Transmission

1

4983917

PISTON

Assy

1шт.

2

11062476

SNAP RING,M90, Int

1шт.

3

14459781

O-RING,55.24mm ID x 60.479mm OD x 2.62mm Thk

1шт.

4

14467781

O-RING,0.139" Thk x 6.234" ID, -259, Cl 7, 75 Duro

(M158.3 ID x 3.53 Thk)

1шт.

5

24907860

BEARING, ROLLER, CYL,100mm ID x 150mm OD x 24mm W

100 x 150 x 24 mm

1шт.

6

79026693

DRUM

Outer Assy

1шт.

7

79026695

BOLT,Hex, M8 x 32mm

2шт.

8

79026845

NUT

2шт.

9

79032204

NEEDLE BEARING,50mm ID x 80mm OD x 28mm W

1шт.

10

79036885

PISTON

1шт.

11

79038905

SPRING CLIP

8шт.

12

79040802

CLUTCH DISC

CLUTCH DISK

7шт.

13

79040803

DISC,127.96mm ID x 195mm OD x 3mm Thk

1шт.

14

79041947

DISC,121.48mm ID x 195mm OD x 2.5mm Thk

1шт.

15

79041950

CUP

1шт.

16

79041951

SNAP RING

1шт.

17

79079550

DISC,145mm ID x 208mm OD x 3.5mm Thk

Friction

8шт.

18

79071781

DRUM

Assy

1шт.

19

79071789

NEEDLE ROLLER

3шт.

20

79077584

SPRING

1шт.

21

4962201

CUP

1шт.

22

20063450

BALL

6.350

1шт.
