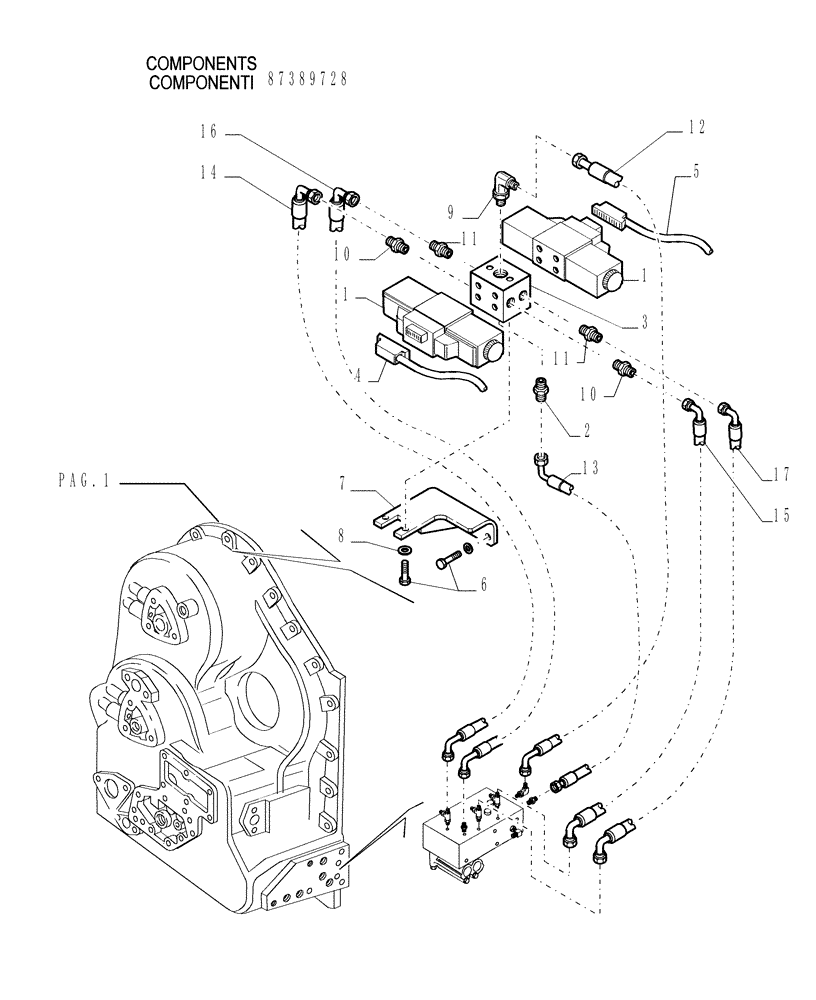

Запчасти Case 1850K (1.211[11]) - TRANSMISSION - CONTROL VALVE Hydrostatic Transmission

1

76046374

SOLENOID VALVE

CETOP 3

2шт.

2

79054330

HYD CONNECTOR

1шт.

3

87337980

BLOCK

1шт.

4

76054803

WIRE HARNESS

1st,2nd,3rd speed (700 mm) - Female connector

1шт.

5

76054802

WIRE HARNESS

Forward and Reverse (700 mm) - Male connector

1шт.

6

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

7

87391350

BRACKET

1шт.

8

14496631

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

79067020

ELBOW

1шт.

10

76066936

HYD CONNECTOR

2шт.

11

76066938

SUPPORT

Fitting

2шт.

12

87391502

FLEXIBLE HOSE

1шт.

13

87391503

FLEXIBLE HOSE

1шт.

14

87391499

FLEXIBLE HOSE

1шт.

15

87391504

FLEXIBLE HOSE

1шт.

16

87391500

FLEXIBLE HOSE

1шт.

17

87391501

FLEXIBLE HOSE

1шт.
